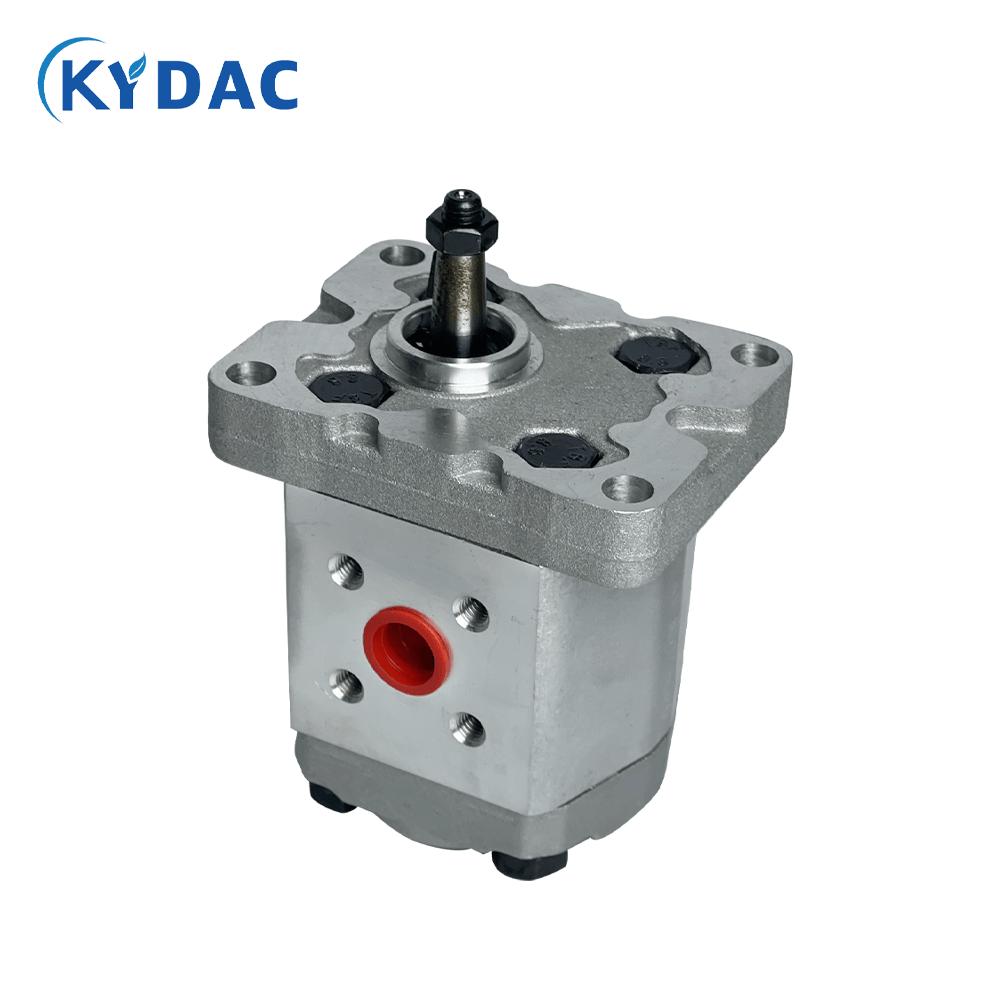

Name:Gear pump group 1PUA BO Series
Model No.:1PUA*BO
Fit:Construction, IndustrIal machinery, Agriculture machinery, Tractor, Crane, Forklift, Heavy Equipment, Transportation
Replace:Hydropack10A, Marzocchi 1P Series
Manufacturer:KYDAC
Material:Aluminum
Max pressure:21MPa
Displacement:0.8~8.0 cm3/Rev
| Type | Displacement | Max pressure | Max.Speed | Min.Speed | ||
| P1 | P2 | P3 | ||||
| (cm³/rev) | bar | bar | bar | (r/min) | (r/min) | |
| 1PUA-0.8-D*B0 | 0.8 | 230 | 250 | 270 | 6000 | 1000 |
| 1PUA-1.1-D*B0 | 1.1 | 230 | 250 | 270 | 6000 | 1000 |
| 1PUA-1.3-D*B0 | 1.3 | 230 | 250 | 270 | 6000 | 1000 |
| 1PUA-1.6-D*B0 | 1.6 | 230 | 250 | 270 | 6000 | 1000 |
| 1PUA-1.8-D*B0 | 1.8 | 230 | 250 | 270 | 6000 | 1000 |
| 1PUA-2.1-D*B0 | 2.1 | 230 | 250 | 270 | 6000 | 1000 |
| 1PUA-2.7-D*B0 | 2.7 | 230 | 250 | 270 | 6000 | 800 |
| 1PUA-3.2-D*B0 | 3.2 | 210 | 230 | 250 | 5000 | 800 |
| 1PUA-3.7-D*B0 | 3.7 | 210 | 230 | 250 | 4500 | 800 |
| 1PUA-4.2-D*B0 | 4.2 | 210 | 230 | 250 | 4000 | 800 |
| 1PUA-4.8-D*B0 | 4.8 | 190 | 210 | 230 | 3500 | 600 |
| 1PUA-5.8-D*B0 | 5.8 | 190 | 210 | 230 | 3000 | 600 |
| 1PUA-7.0-D*B0 | 7.0 | 160 | 180 | 200 | 2500 | 600 |
| 1PUA-8.0-D*B0 | 8.0 | 160 | 180 | 200 | 2100 | 600 |
If you are interested in any product, please contact us. We will introduce our products to you in more detail
