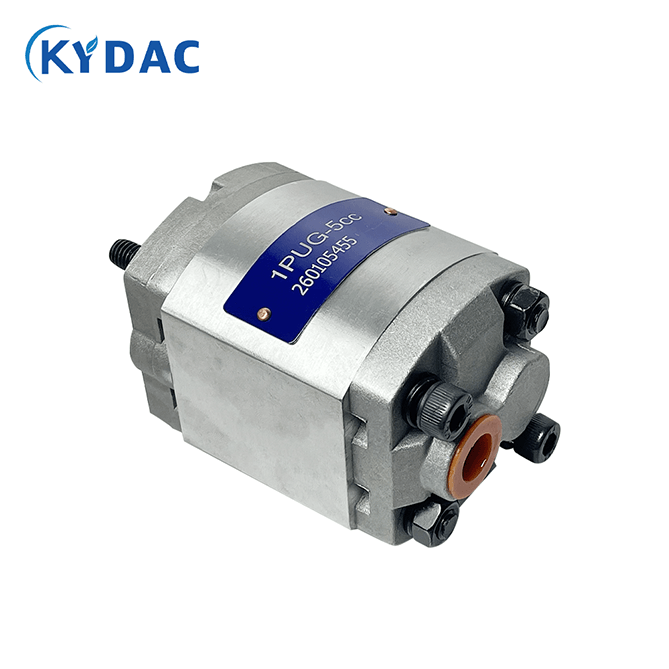

Name:Gear pump group 1PUG Series
Model No.:1PUG
Fit:Construction, IndustrIal machinery, Agriculture machinery, Tractor, Crane, Forklift Replace:Hydropack10A, CBT1-F20 Series
Manufacturer:KYDAC
Material:Aluminum
Max pressure:21MPa
Displacement:4.3~10.0 cm3/Rev
The 1PUG Series Hydraulic Gear Pump is a compact and high-performance external gear pump designed for medium-pressure hydraulic systems. Featuring a high-strength aluminum alloy housing, precision-machined gears, and optimized bearing support technology, the pump provides stable flow output, high efficiency, low noise operation, and excellent durability.
The 1PUG Series is widely used in agricultural machinery, construction equipment, hydraulic power units, forklifts, lifting platforms, material handling equipment, and industrial hydraulic systems requiring reliable hydraulic power transmission.
| Type | Displacement | Max pressure | Max.Speed | Min.Speed | ||
| P1 | P2 | P3 | ||||
| (cm³/rev) | bar | bar | bar | (r/min) | (r/min) | |
| 1PUG-4.3 | 4.3 | 270 | 280 | 290 | 4000 | 1000 |
| 1PUG-5.0 | 5.0 | 270 | 280 | 290 | 4000 | 1000 |
| 1PUG-6.0 | 6.0 | 270 | 280 | 290 | 3500 | 1000 |
| 1PUG-6.5 | 6.5 | 270 | 280 | 290 | 3000 | 1000 |
| 1PUG-7.0 | 7.0 | 270 | 280 | 290 | 2500 | 1000 |
| 1PUG-7.8 | 7.8 | 250 | 260 | 270 | 2100 | 1000 |
| 1PUG-10 | 10 | 250 | 260 | 270 | 2100 | 800 |
The 1PUG Series operates according to the positive displacement principle of external gear pumps.
This design ensures smooth, efficient, and reliable hydraulic power transmission.
The 1PUG Series Hydraulic Gear Pump is widely used in:
