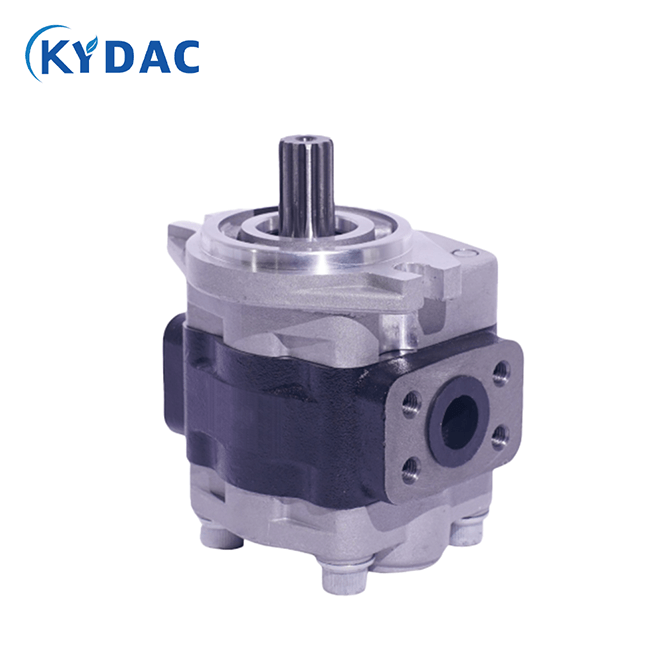

The 2.5PLD*A0 Series Hydraulic Gear Pump is a compact and high-efficiency external gear pump designed for medium-pressure hydraulic systems. Featuring a lightweight aluminum alloy housing, precision-machined gears, and advanced sealing technology, the pump delivers stable flow output, excellent volumetric efficiency, low noise operation, and long service life.

The 2.5PLD*A0 Series is widely used in forklifts, agricultural machinery, loaders, road rollers, hydraulic power units, construction equipment, and industrial hydraulic systems requiring reliable hydraulic power transmission. Similar Group 2.5 gear pumps typically offer displacements from 10–45 cm³/rev with operating pressures up to 250 bar.

Working Principle

The 2.5PLD*A0 Series operates through two precision gears rotating inside a close-tolerance housing.

1. Hydraulic oil enters through the inlet port.
2. The drive gear rotates via the input shaft.
3. The driven gear rotates simultaneously.
4. Oil is transported around the gear circumference.
5. The meshing gears force oil toward the outlet port.
6. Pressurized hydraulic fluid is delivered to the hydraulic system.

This positive displacement design ensures continuous and stable hydraulic power output.

Product Features

• High-performance external gear pump design
• Compact aluminum alloy body
• High volumetric and mechanical efficiency
• Stable flow and pressure output
• Low noise and low vibration operation
• Excellent suction performance
• Wide displacement range available
• Multiple shaft and flange options
• Clockwise or counterclockwise rotation available
• Reliable shaft sealing system
• Easy installation and maintenance
• Long service life under continuous-duty operation
