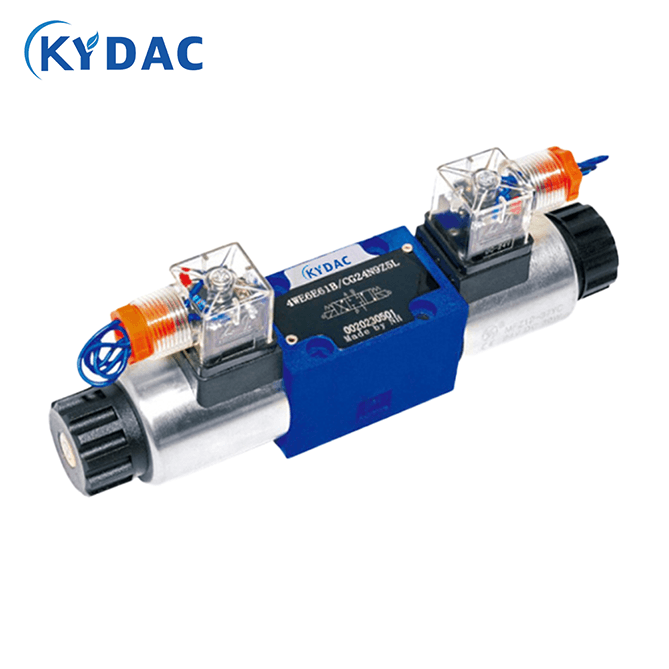

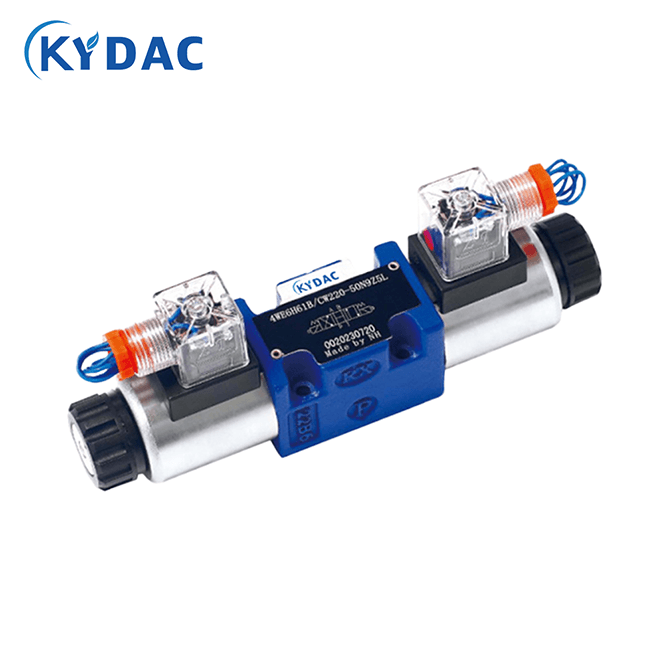

4WE6E61B/CW220-50N9Z5L TYPE SOLENOID-OPERATED DIRECTIONAL VALVE

This product is a high-performance solenoid-operated directional valve, specifically designed for construction machinery and industrial hydraulic systems. It is widely used in heavy equipment such as excavators, tractors, cranes, and forklifts, enabling efficient and precise control of hydraulic flow direction.

Core Features and Advantages:

1. Robust and Reliable Performance
   Made of high-strength cast iron valve body, ensuring solid and durable construction. The main oil ports (P/A/B) withstand a maximum working pressure of 35 MPa, while the return port (T) can handle 21 MPa, guaranteeing stable operation under high-pressure conditions. With a maximum flow rate of 80 L/min, it meets the demands of medium-to-large flow systems, providing quick response and smooth directional switching.

2. Wide Electrical Compatibility
   Supports multiple voltage inputs: DC 12V/24V and AC 110V/220V, making it adaptable to various equipment electrical systems and allowing flexible and convenient installation.

3. Excellent Interchangeability and Replacement
   This product is fully compatible with and can directly replace similar valves from internationally renowned brands such as YUKEN, REXROTH, and VICKERS. It delivers equivalent performance while offering a more cost-effective solution, reducing equipment maintenance and replacement cycles.

4. Strong Adaptability and High Reliability
   Engineered for the demanding conditions of construction machinery, it features good contamination resistance and vibration tolerance, making it suitable for prolonged, high-load operations and ensuring continuous and efficient equipment performance.

Summary of Technical Specifications:

• Model: 4WE6E61B/CW220-50N9Z5L

• Port Size: 6 mm

• Max. Working Pressure: P/A/B Ports 35 MPa | T Port 21 MPa

• Rated Flow: 80 L/min

• Voltage Options: DC 12/24V; AC 110/220V

• Valve Body Material: Cast Iron

• Origin: China

Application Fields:
Suitable for hydraulic control systems in various construction machinery, agricultural tractors, port cranes, logistics forklifts, and more. It serves as a key hydraulic component for directional control and operation switching.

With its reliable performance, broad compatibility, and economical maintenance, this solenoid-operated directional valve is an excellent choice for directional control units in various hydraulic systems. It helps ensure stable equipment operation and enhances overall operational efficiency.
