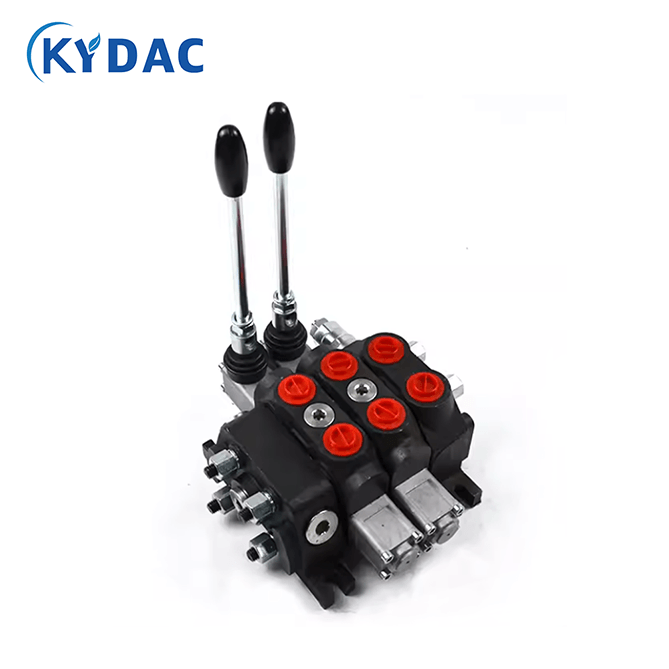

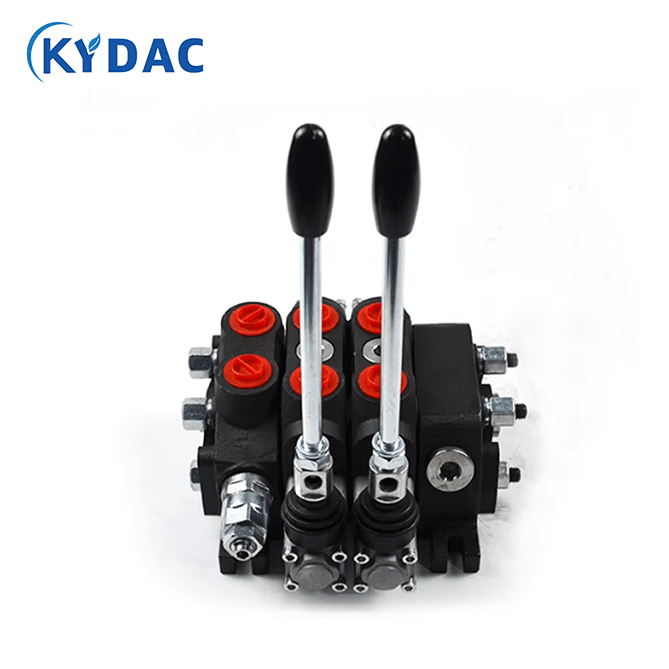

DCV60 Multi Way Directional Control Valve

Key Product Advantages

Powerful Performance: Rated flow up to 60 L/min, maximum working pressure 350 bar, delivering strong and efficient hydraulic power for heavy-duty equipment.
Ultimate Flexibility: Unique sectional structure supports modular combination of 1 to 12 sections, meeting the customization needs of highly complex hydraulic systems.
Globally Reliable: Withstands extreme temperatures from -40℃ to 80℃, compatible with a wide fluid viscosity range of 12-400 cSt, ensuring stable operation in various harsh conditions worldwide.
Rugged & Durable: Manufactured with high-strength cast iron valve body, featuring a classic sectional design for easy maintenance, ensuring long-term system reliability and low operating costs.

Product Overview

The KYDAC DCV60 Series is an industrial-grade sectional multi-way directional control valve designed to meet the demands for high flow, ultra-high pressure, and extensive multi-circuit control. This product combines 350 bar ultra-high pressure performance with 60 L/min high flow output, utilizing a highly flexible sectional body design. It represents an advanced solution for controlling complex hydraulic systems with multiple actuators. It is tailor-made for heavy-duty construction machinery, large-scale sanitation equipment, and high-end drilling machinery that require coordinated control of numerous cylinders or motors, serving as the core control center for building efficient, reliable, and customizable hydraulic systems.

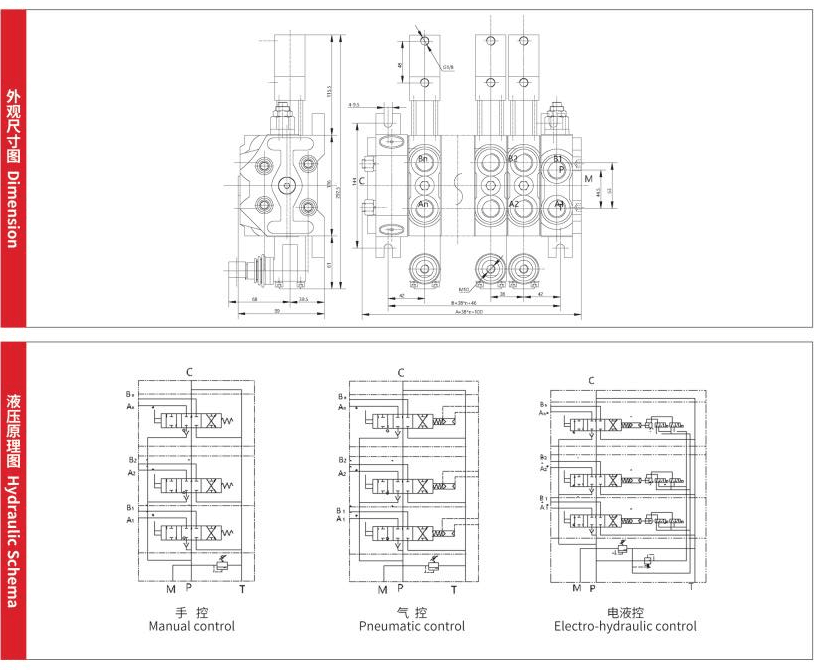

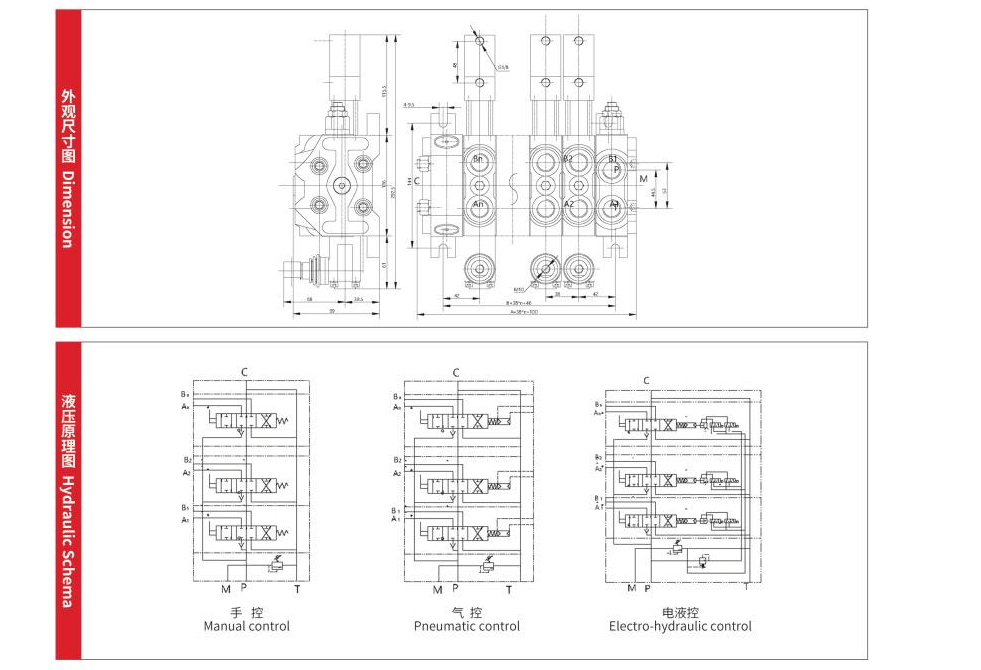

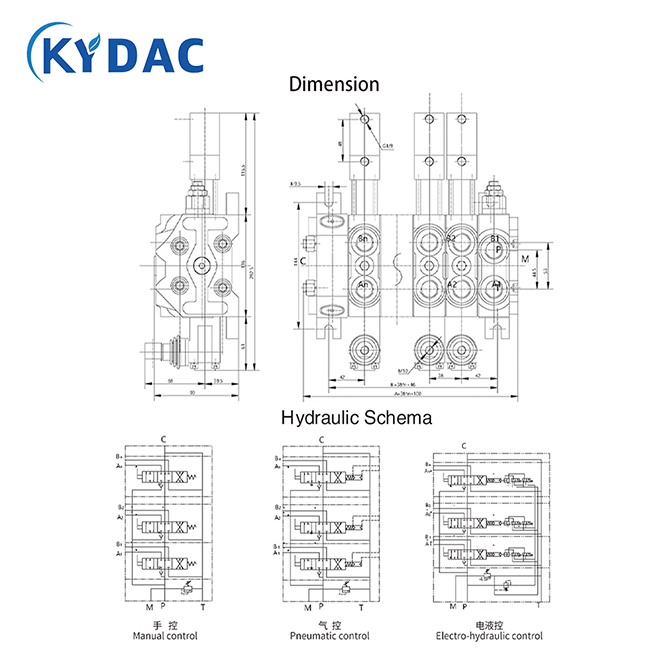

Technical Specifications

In-Depth Features & Advantages

1. High-Flow, High-Pressure Power Platform
   The DCV60 Series provides a generous flow of 60 L/min. Under sustained high pressure of 350 bar, it significantly reduces the actuation time for large-displacement cylinders or motors, greatly improving work cycle efficiency. Its internal flow paths are optimized to ensure minimal pressure loss at high flow rates, delivering core power that is both “fast and forceful” for large excavators, cranes, drill rigs, and similar equipment.

2. Unparalleled System Scalability (Core Advantage of Sectional Design)
   Utilizing a classic sectional structure, it supports the flexible stacking of up to 12 valve sections. This design allows the DCV60 to perfectly adapt to complex equipment with a varying number of control circuits. Users can precisely configure the required number and function of valve sections, like building blocks, based on equipment functions (e.g., boom, arm, bucket, swing, travel, multiple outriggers, and various attachments for an excavator). This enables system construction without redundancy and allows for convenient future functional upgrades.

3. Engineered for Large, Complex Equipment

   • Large Construction Machinery: An ideal choice as the main control valve for large and ultra-large hydraulic excavators, all-terrain cranes, tunnel boring machines, etc., capable of centrally controlling dozens of functions.

   • High-End Sanitation & Special Vehicles: Suitable for complex systems in large waste sorting/compaction stations, tunnel cleaning trucks, multi-function snow removal vehicles that require control of multiple independent work modules.

   • Heavy-Duty Drilling & Mining Equipment: Provides a reliable multi-circuit control solution for deep-hole drill rigs, rotary drilling rigs, and mining machinery, coordinating multiple high-load circuits such as the power head, feed, clamping, and auxiliary devices.

4. Maintenance-Friendly with Lasting Reliability
   Although not a single casting, the sectional structure ensures overall stack sealing through high-precision machining and reliable sealing technology. Its advantage lies in the fact that maintaining or replacing a single valve section does not require disassembling the entire valve stack, making maintenance more convenient, effectively reducing equipment downtime, and improving availability.

Typical Application Scenarios

• Ultra-Large Hydraulic Excavators: Serves as the “brain” of the machine’s entire hydraulic system, integrally controlling all upper and lower structure movements to achieve precise, efficient, and energy-saving compound operations.

• All-Terrain Cranes: Controls the numerous complex functions of main/auxiliary hoisting, luffing, telescoping, slewing, and outrigger extension, ensuring safe and smooth lifting operations.

• Large Waste Processing Systems: Within central transfer stations, controls multiple feeding, compaction, ejection, and transfer mechanisms to achieve fully automated production line operation.

Quality Commitment

The KYDAC DCV60 Series inherits the manufacturing standards of industrial-grade products. Each valve section undergoes precision machining, strict inspection, and performance testing. We ensure the flatness and sealing of the mating surfaces and provide reliable bolt and seal kit solutions, guaranteeing that the entire valve stack assembled from multiple sections offers system sealing and durability comparable to a monoblock valve.

Obtain Your Customized Solution

Facing complex heavy-duty equipment that requires coordination of a dozen or more functions, the KYDAC DCV60 Series is your ideal foundation for achieving centralized control, efficient power, and ultimate flexibility. Our application engineering team can provide you with full-process professional support, from valve section function selection and system schematic optimization to installation guidance.

Contact us now to receive a customized DCV60 Multi-Way Valve configuration plan for your complex equipment!
