P80 Hydraulic Directional Control Valve: Select & Use Tips

Understanding P80 Hydraulic Directional Control Valves for Modern Machinery

Picking fluid power parts calls for solid knowledge of system pressure, flow rates, and spool setups. This guide shows how a P80 hydraulic valve helps equipment work better and shares our engineering skills at KYDAC.

Introduction: Powering Heavy-Duty Hydraulic Applications

The points below show how high-flow directional control valves handle fluid power in tough machinery.

Essential Power Control: A P80 hydraulic directional control valve serves as the central control hub. It routes pressurized hydraulic oil to actuators and motors.

High Flow Capacity: It delivers a nominal flow rate of 80 L/min (21 US GPM) at 250 bar (3626 psi) maximum pressure. This suits high-power needs.

Integrated Safety: It comes with built-in relief valves and anti-cavitation features. These stop pressure spikes and overloads.

Compact Monoblock Architecture: The single-piece cast iron design cuts down on internal oil passage resistance while adding structural strength. This makes the P80 an efficient monoblock directional control valve for demanding mobile equipment.

About KYDAC: Precision Engineering in Fluid Power

Here is a brief summary of KYDAC‘s core capabilities and commitment to hydraulic manufacturing excellence.

Manufacturer Identity: KYDAC is an established manufacturer of industrial hydraulic control valves, solenoid valves, check valves, gear pumps, and hydraulic motors.

Quality Standard: Utilizing precision machining and strict quality control systems, KYDAC delivers components that meet global industrial standards.

Custom Engineering: We provide tailored fluid control solutions, supplying reliable components exported to over 50 countries worldwide.

Technical Specifications and Features of KYDAC P80 Hydraulic Valves

In this section, we break down the engineering design, material advantages, and main variants of the P80 monoblock valve series.

Structural Design and Technical Advantages

Here are the main mechanical features that support long service life in tough conditions.

Cast Iron Monoblock Construction: The strong cast iron body stands up to heat changes and heavy knocks in tough settings.

Wide Thermal Tolerance: It works well from -40°C to +80°C and handles oil thickness from 12 to 400 cSt.

Leak-Free Sealing: Ground spools and quality seals give long life with no leaks outside, even under steady load.

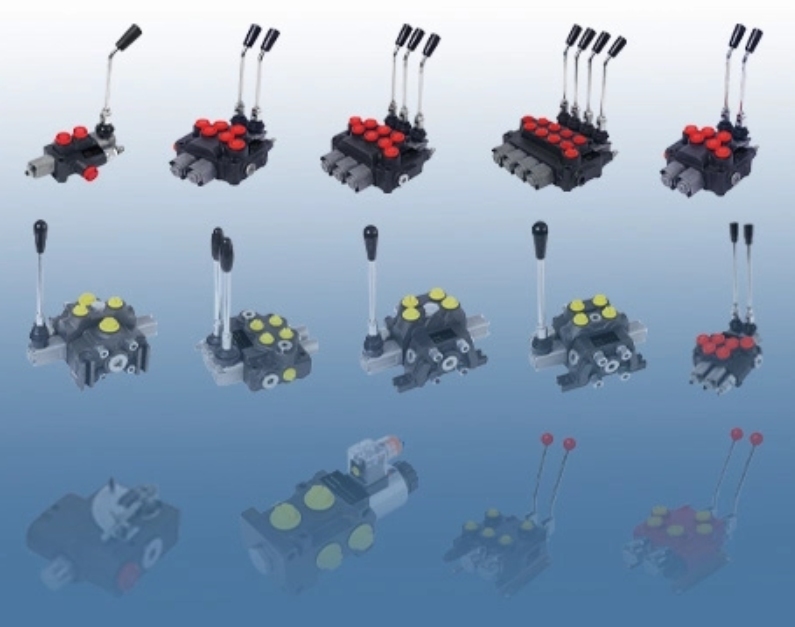

Complementary Product Portfolio: KYDAC also makes the P40 monoblock directional control valve at 40 L/min for smaller machines and the DCV140 series for very heavy work.

Core Product Variants: P80 2 Spool and 3 Spool Configurations

These specific model options allow operators to customize circuit control based on implement complexity. A P80 multi-way valve can be configured with multiple spool sections to manage several hydraulic functions from one compact body.

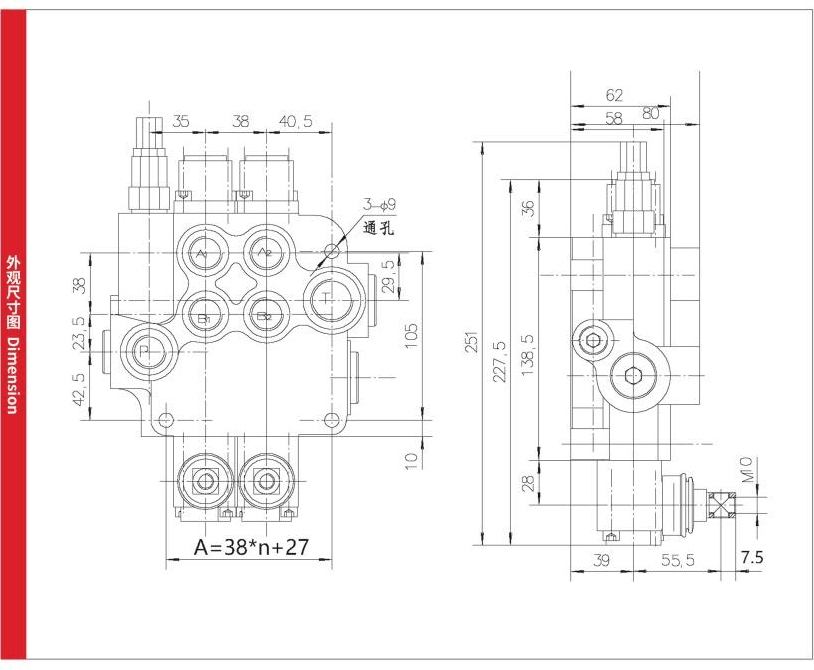

KYDAC P80 2 Spool Hydraulic Valve: Designed for dual-action control, making the P80 2 spool hydraulic valve ideal for operating a loader boom and bucket cylinder simultaneously.

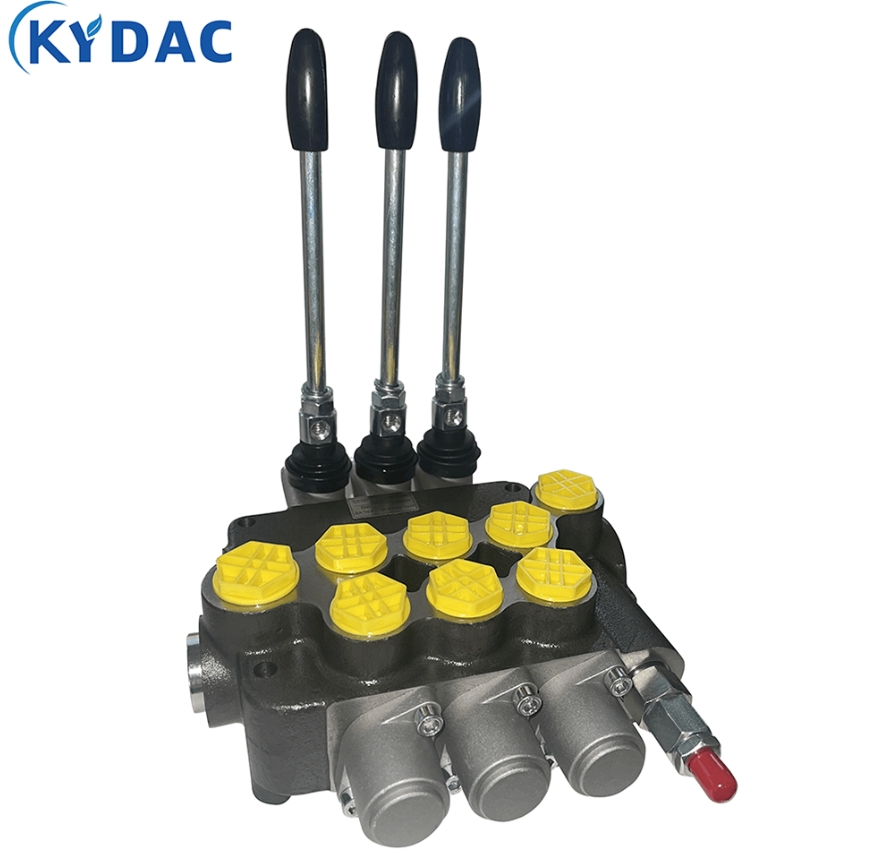

KYDAC P80 3 Spool Hydraulic Valve: The P80 3 spool hydraulic valve features three independent working sections, allowing operators to control additional attachments like grapples or rear remotes.

Flexible Spool Options: Configurable with 1 to 7 working spools with spring-return or detent positioning options.

Single and Double-Acting Capability: Supports both single-acting (lifting rams) and double-acting hydraulic cylinders seamlessly.

Practical Applications and Field Problem-Solving

This section highlights concrete equipment applications and details how the P80 valve solves common hydraulic challenges.

Agricultural Equipment and Tractor Hydraulic Systems

The following details show how the P80 functions as a tractor rear remote valve to improve implement operation.

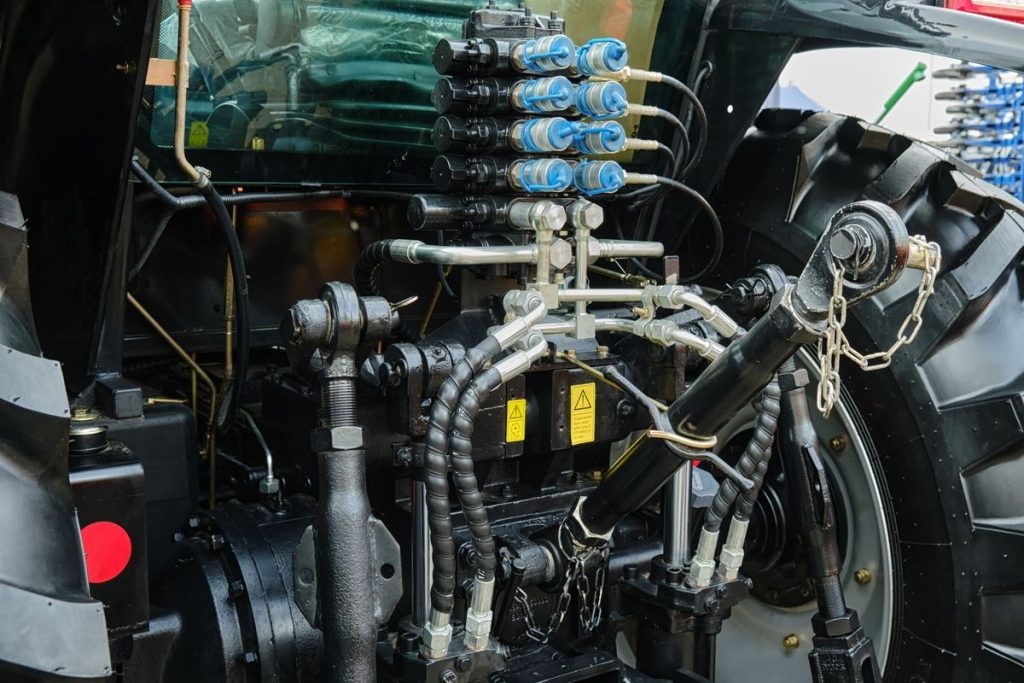

Tractor Rear Remote Valve: Serves as a reliable P80 tractor hydraulic valve and P80 valve for tractor applications to power rear-mounted plows, seeders, balers, and mowers.

Eliminating Oil Leakage: Upgrading older tractor remotes with a monoblock directional control valve eliminates joint leaks caused by worn multi-piece stack valves.

Overcoming System Overheating: Smooth internal flow channels minimize oil friction, preventing fluid overheating during long harvesting working hours.

Precise Implement Control: Fine-metering spools prevent jerky hydraulic cylinder movement, protecting delicate farm tools.

Front Loaders, Construction, and Material Handling

Here we explore how loader valves optimize multi-axis movement in heavy material handling.

P80 Hydraulic Valve for Front Loader: A P80 hydraulic valve for front loader applications serves as a heavy-duty P80 loader valve managing lift, tilt, and auxiliary attachment functions.

Solving Slow Actuator Response: The P80 directional control valve with an 80 L/min supply prevents pressure drops when operating multiple loader arms under full payload.

Log Grapples and Excavator Attachments: Provides synchronized oil distribution for forestry grapples, pallet forks, and compact excavators.

Sanitation and Special Vehicles: Controls hydraulic actuators on garbage trucks, snow blowers, and mobile cranes reliably.

Selection Tips for Purchasing the Right P80 Hydraulic Valve

Choosing the correct valve requires evaluating flow rates, spool counts, and manufacturer reliability.

Key Evaluation Criteria for Hydraulic System Design

Consider these critical factors before specifying a monoblock directional control valve for your machinery.

Flow & Pressure Matching: Ensure your pump output matches the 80 L/min hydraulic control valve flow rating and stays within 250 bar system limits.

Spool Count Determination: Select a P80 2-spool hydraulic valve for basic loader arms or a P80 3-spool hydraulic valve for complex auxiliary circuits.

Control Actuation Type: Decide between manual hand lever, pneumatic, cable, or direct solenoid control based on operator cab layout.

Choosing a Reliable Supplier: Partner with a trusted P80 hydraulic valve supplier like KYDAC to guarantee genuine cast iron quality, warranty support, and technical assistance.

Partner with KYDAC for Reliable Fluid Power Control

Upgrade your hydraulic infrastructure with field-proven valves designed for extreme pressure and efficiency.

Take Your Equipment Performance to the Next Level

Contact our technical support team today to discover tailored hydraulic solutions for your equipment fleet.

Direct Factory Supply: Get high-performance P80 monoblock valve units directly from KYDAC with competitive wholesale pricing.

Custom OEM/ODM Services: KYDAC offers custom spool configurations, specialized port threading, and customized branding.

Global Shipping & Technical Support: Rapid delivery and complete technical documentation for seamless machine integration.

Request a Free Quote: Contact KYDAC today via email or WhatsApp to optimize your machinery’s hydraulic performance!

FAQ

Q: What is the main advantage of an 80 L/min monoblock directional control valve over a sectional valve?

A: Monoblock valves have one cast body. This removes seals between sections. It stops leaks under high pressure and gives better strength when machines run in rough field conditions with constant vibration.

Q: Can a P80 tractor hydraulic valve be used for double-acting and single-acting cylinders?

A: Yes. P80 spools work with certain plug setups. These allow the valve to handle both double-acting cylinders, such as loader arms, and single-acting cylinders like dump trailers in daily farm tasks.

Q: How do I know if I need a P40 or a P80 hydraulic valve for my loader?

A: Check pump flow first. Use the P40 when flow stays below 40 L/min. Switch to the P80 valve for flows between 40 L/min and 80 L/min. This choice stops backpressure from building extra heat during long work shifts.

Q: What causes hydraulic spools to stick or operate stiffly in monoblock valves?

A: Sticking often starts with dirty fluid. It can also happen when bolts are tightened too tight and bend the body. Hot oil that exceeds normal thickness ranges adds to the problem in hot weather jobs as well.
