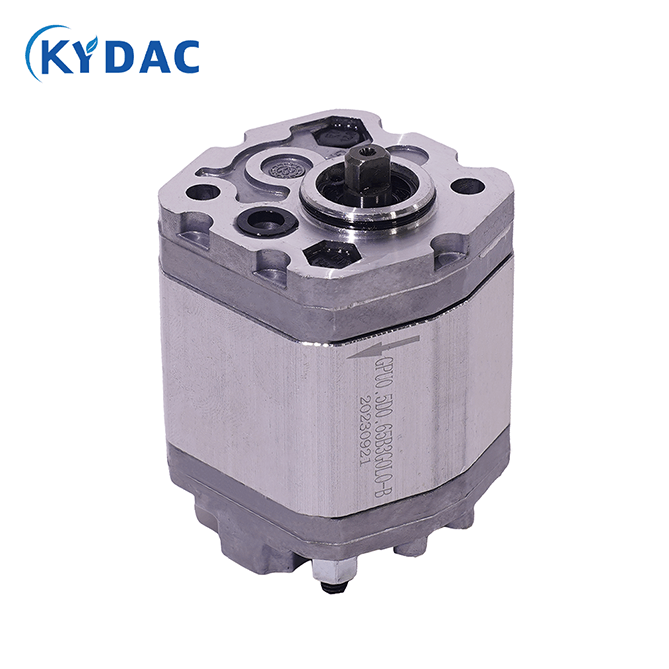

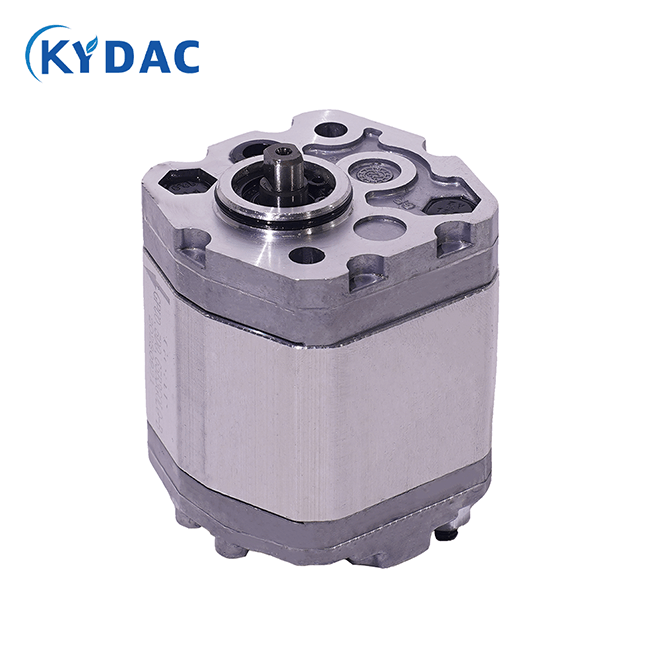

The 1PUE Series Hydraulic Gear Pump is a compact and efficient Group 1 external gear pump designed for medium-pressure hydraulic systems. Featuring a high-strength aluminum alloy housing, precision-machined gears, and optimized pressure-balancing technology, the 1PUE Series provides stable flow output, high volumetric efficiency, low noise operation, and long service life.

The pump is widely used in agricultural machinery, construction equipment, forklifts, hydraulic power units, lifting platforms, material handling systems, and industrial hydraulic applications where reliable hydraulic power transmission is required.

Working Principle

The 1PUE Series operates according to the positive displacement principle of external gear pumps.

1. Hydraulic oil enters through the suction port.
2. The drive shaft rotates the driving gear.
3. The driven gear rotates simultaneously.
4. Oil is carried around the outer circumference of the gears.
5. The meshing gears create pressure and force the oil into the outlet chamber.
6. Pressurized hydraulic oil is continuously supplied to the hydraulic system.

This simple and reliable design ensures smooth hydraulic power transmission and stable system performance.

Product Features

• Group 1 external gear pump design
• Compact and lightweight structure
• High-strength aluminum alloy housing
• Precision-machined alloy steel gears
• High volumetric and mechanical efficiency
• Stable flow and pressure output
• Low noise and low vibration operation
• Excellent suction performance
• Multiple displacement options available
• Clockwise or counterclockwise rotation options
• Reliable shaft sealing system
• Easy installation and maintenance
• Long service life
