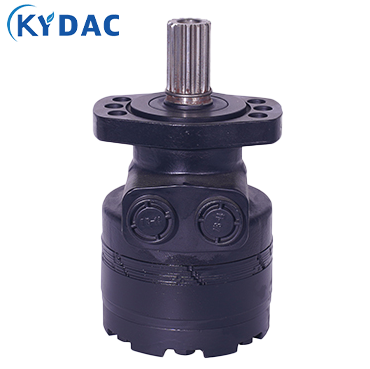

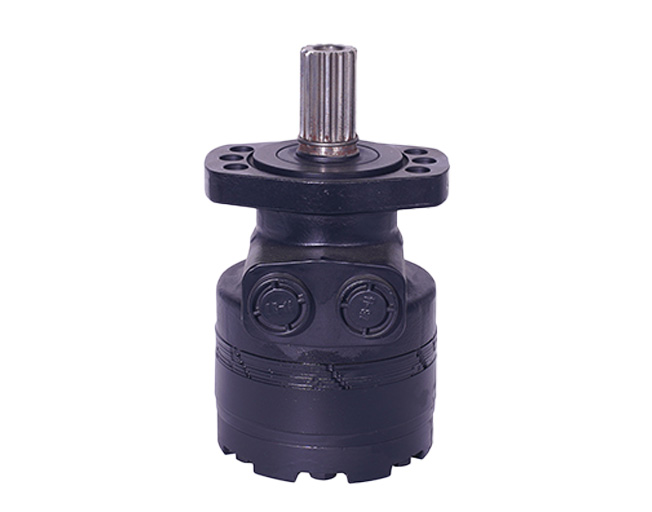

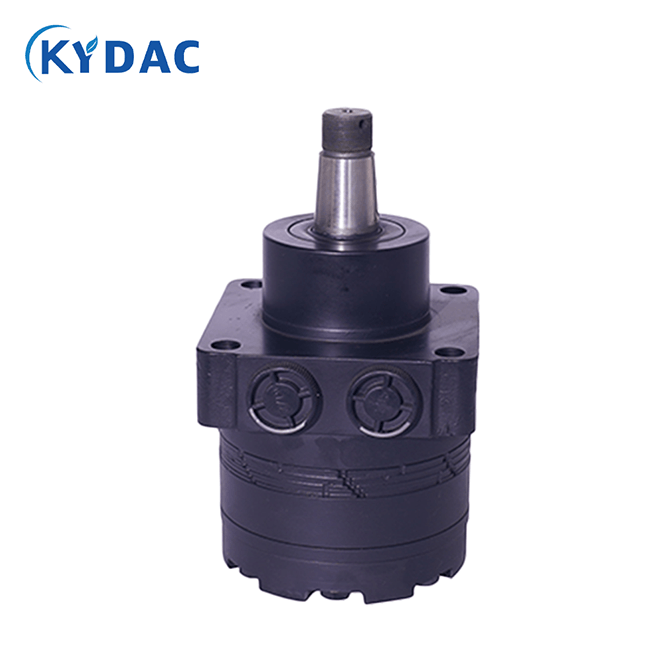

The BMER Series Cycloidal Hydraulic Motor is a low-speed high-torque (LSHT) orbital hydraulic motor designed for demanding mobile and industrial applications. Featuring an advanced Geroler gear set and high-speed disc valve distribution system, the BMER motor delivers high torque output, excellent low-speed stability, high volumetric efficiency, and long service life. It is widely used in construction machinery, agricultural equipment, forestry machines, material handling equipment, and hydraulic drive systems.

Working Principle

The BMER motor utilizes a Geroler rotor-stator assembly combined with a high-speed disc valve distribution system.

1. Pressurized hydraulic oil enters the motor.
2. The disc valve accurately distributes oil flow to the rotor-stator chambers.
3. Pressure differences generate rotational movement of the rotor.
4. The rotor drives the output shaft, converting hydraulic energy into mechanical torque.
5. Return oil flows back to the hydraulic tank through the outlet port.

The advanced flow distribution system automatically compensates for wear, maintaining high efficiency and smooth operation throughout the motor’s service life.

Product Features

• Advanced Geroler rotor-stator design
• High starting torque
• Smooth operation at low speeds
• High volumetric and mechanical efficiency
• High pressure and high torque capability
• Compact and robust structure
• High radial and axial load capacity
• Needle roller bearing output shaft design
• Long service life with low maintenance
• Suitable for both open-loop and closed-loop hydraulic systems
• Multiple shaft, flange, and port options available
