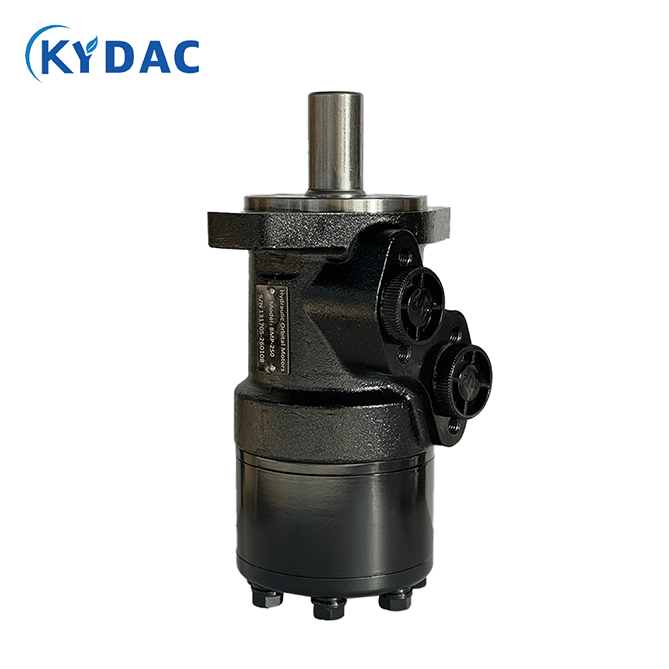

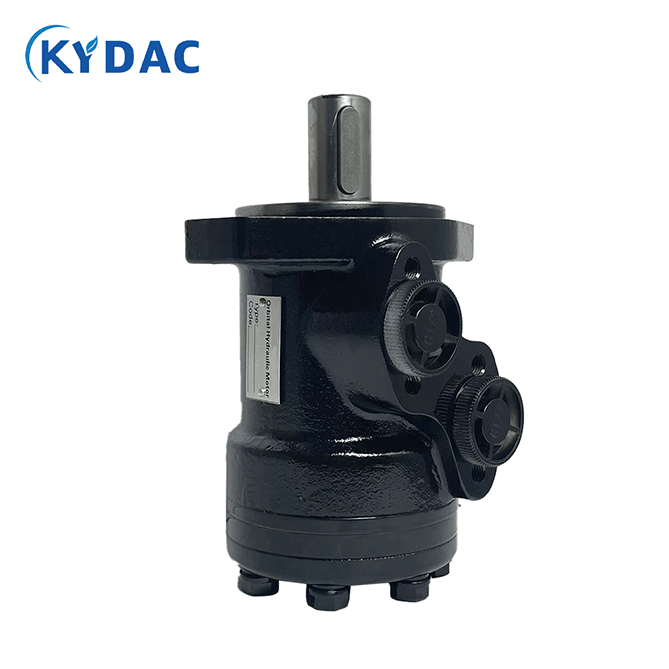

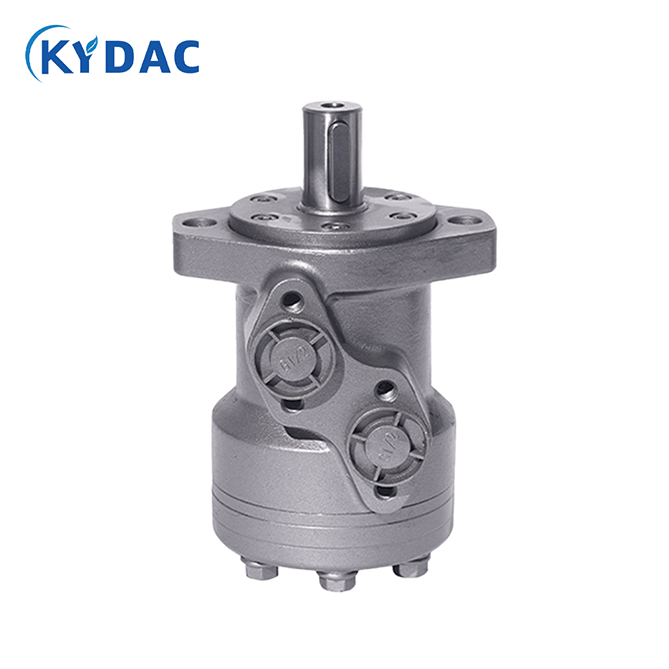

The BMP motor is a compact, spool valve type cycloidal hydraulic motor, delivering high power and low weight. It features a robust shaft seal design that withstands high pressure, suitable for parallel or series configurations, with smooth and easy control of shaft rotation and speed. It offers an excellent balance of efficiency and cost-effectiveness for medium load applications.
BMP motor is a small volume,spool valve type motor.Characteristic features:
*Compact design,which provide small volume,high power and low weight.
*Credible design for shaft seal,which can bear high pressure and be usedin parallel or in series.
*Direction of shaft rotation and speed can be controlled easily and smoothly.
*Best combination of efficiency and economy in medium load applications.
| Type | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | |
| Displacement | (ml/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 |
| Flow | Continuous (LPM) | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Be interrupted (LPM) | 50 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Speed
| Continuous (PRM) | 755 | 630 | 750 | 600 | 475 | 375 | 300 | 240 | 190 | 160 | no |
| Be interrupted (PRM) | 970 | 790 | 940 | 750 | 600 | 470 | 375 | 300 | 240 | 200 | 128 | |
| Pressure | Continuous (MPA) | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 8.5 | 8.5 | 8 |
| Be interrupted (MPA) | 17.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 14 | 11.5 | 11.5 | 9 | |
| Torque | Continuous (N*M) | 100 | 124 | 190 | 240 | 292 | 363 | 358 | 352 | 360 | 420 | 464 |
| Be interrupted (N*M) | 126 | 156 | 220 | 280 | 340 | 430 | 448 | 470 | 470 | 548 | 580 | |
