Mastering Multi-Spool Hydraulic Valves A Complete Guide on Selection and Usage

In heavy machinery, the power to handle several actions at once—like raising while angling, or turning while stretching—drives real productivity. The multi-spool hydraulic valve sits at the heart of this ability. Picking the correct valve goes beyond just installing a piece; it involves protecting the safety, quick response, and lasting life of your whole hydraulic setup.

KYDAC, a skilled provider of hydraulic solutions and a top name in tailored hydraulic parts, knows that each lost minute of operation or rough shift in a loader adds up in costs. Backed by more than 200 specialists in the field and a focus on digital production methods, we supply carefully built valves to help industries around the world keep running smoothly.

Understanding Multi-Spool Hydraulic Valves

A multi-spool valve, also called a multi-way valve, lets one hydraulic pump manage various actuators, like cylinders or motors. Grasping the basic structure marks your initial move toward smart selection.

Monoblock vs. Sectional Design

• Monoblock Valves: These have a single-cast body that holds all spools. Such valves stay small, light, and resist leaks better since they lack seals between parts. KYDAC’s ZT-L12 and P Series stand out as fine choices here, delivering solid performance in tight areas.
• Sectional Valves: Workers put these together from separate pieces. Though they take up more room, they give great adaptability, so you can add or take away sections as your equipment needs shift.

Key Selection Criteria: Getting the Specs Right

A poor valve choice might spark overheating, slow reactions, or total breakdown of parts.

Determining Flow Capacity and Pressure Ratings

The valve needs to manage your pump’s top output without building too much backpressure.

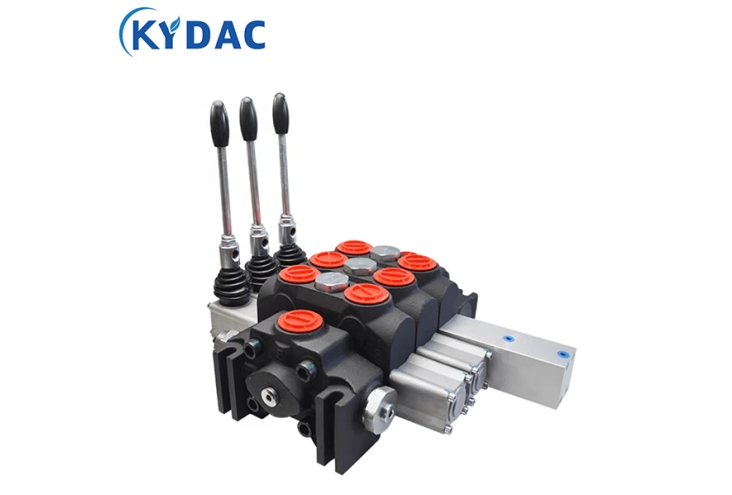

• Flow Rate: If your pump pushes 60 L/min, a valve built for just 40 L/min will lead to heat issues. KYDAC covers a broad range, like the DCV60 for average flows or the tough DCV140 for bigger demands.
• Pressure Rating: Make sure the valve holds up under your system’s highest pressure. Our items stand strong in setups with heavy pulses, thanks to years of hands-on know-how.

Choosing Spool Types and Control Methods

Your task might call for varied “functions.”

• Spring Return vs. Detent: Should the spool return quickly to neutral, or hold steady in place?
• Control Methods: Today’s setups often demand more than a basic hand lever. KYDAC supplies electromagnetic-controlled choices (such as the SD Series) and air-based controls that fit right into digital operator stations.

KYDAC Engineering: Precision in Multi-Spool Solutions

We aim to deliver solid, fresh hydraulic answers that fit our clients’ changing demands. By drawing on modern building techniques, we make sure every valve group hits worldwide benchmarks.

The Versatile DCV Series: From DCV20 to DCV140

The DCV series forms the backbone of our range. It adapts well and serves in over 50 nations.

• Scalability: From a compact garden tractor with the DCV20 to a large mining excavator using the DCV140, this line keeps steady control patterns and fitting sizes.
• Precision: These valves tackle “drift,” where an actuator creeps from inside leaks. They keep loads right where you set them.

P Series and ZT-L12: Reliability for High-Demand Systems

• P Series (P40, P80, P120): These hold up well in rough factory settings.
• ZT-L12: This monoblock valve offers fast reactions, ideal for jobs where split-second timing matters.

Industry-Specific Solutions: Where KYDAC Valves Drive Performance

To pick wisely, consider real-world uses and the issues these valves address.

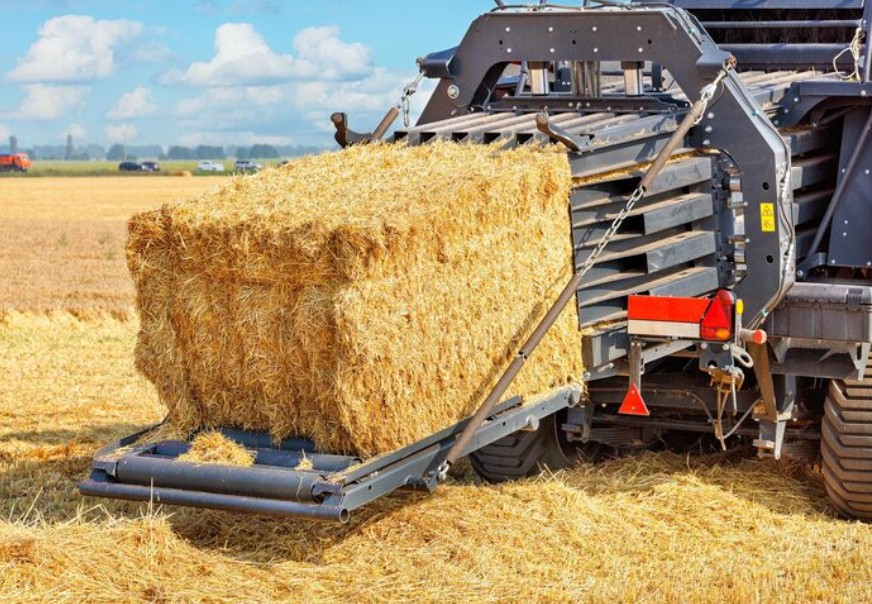

Optimizing Agricultural Baling and Harvesting

Farm gear works in dirty, shaky conditions.

• The Critical Issue: Basic valves often falter against the sudden pressures in hay balers during pressing.
• The KYDAC Advantage: KYDAC’s Green Storage Baling Machine Special Valve Group handles these bursts on purpose. It stops seal failures inside and keeps bales packed evenly.

Precision Control in Construction Excavators and Loaders

• The Critical Issue: Drivers frequently note choppy actions when moving the boom and bucket together.
• The KYDAC Advantage: Our multi-way directional valves use spools with careful flow control. This spreads oil smoothly for combined moves, so a loader can raise and tip in one easy step. It cuts down on repeat cycles.

Durability in Industrial Recycling (Crocodile Shears)

• The Critical Issue: Scrap metal tools need a huge force to cut steel, which can crack ordinary valves.
• The KYDAC Advantage: The Crocodile Shear Valve Group Series uses stronger cast parts to deliver the strong, steady work needed for tough cutting tasks.

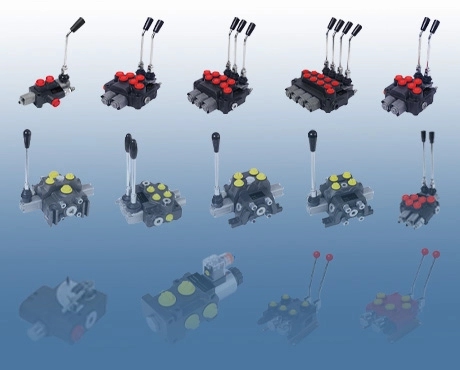

Usage and Maintenance for Longevity

The finest valve can still break without proper handling. Good practices wrap up how to handle these parts well.

• Contamination Control: Hydraulic fluid acts as the system’s life force. We suggest a complete set of matching products, including KYDAC hydraulic filters, to block metal bits from scratching the spools.
• Proper Port Connection: Steer clear of tightening fittings too hard, as that might warp the valve body and make the spools jam.
• Regular Inspection: Look for outside leaks, and keep hand levers or solenoid coils clear of dirt and rust.

Ready to Upgrade Your Equipment’s Performance?

At KYDAC, we go beyond selling components; we offer full system support. If you seek an OEM ally for big production runs or a custom valve for a unique design issue, our group stands prepared to help.

Contact us today to find the perfect hydraulic multi-spool valve for your application!

• WhatsApp: 8615830130792
• Email: Maria@shangjiayeya.com

FAQ

Q: What is the main cause of a hydraulic spool sticking?

A: Dirty fluid tops the list. Tiny bits or buildup from hot oil can jam between the spool and body, locking it up.

Q: Can I use a monoblock valve if I might need to add more functions later?

A: No. Monoblock valves lock in a set number of spools. For growth potential, pick a sectional type like the DCV series, where you can bolt on extra parts.

Q: How do I choose between a manual and a solenoid-controlled valve?

A: Hand-operated valves save money and give a direct feel to the user. Solenoid types, such as our SD Series, fit automated setups, distant operation, or joystick controls in updated cabs.

Q: What is “metering” in a multi-way valve?

A: Metering means the spool opens oil flow bit by bit. Strong metering supports exact, gradual shifts instead of sudden jerks.

Q: Why does my hydraulic system overheat when using the valve?

A: This often stems from the valve’s flow limit being too small for the pump, or too much leakage inside. Picking the right-sized KYDAC DCV or P series valve fixes it.
