Maximize Machinery Power with DCV100 Hydraulic Control Valve

Heavy-duty mobile machines today need steady control of fluid power when several hydraulic actuators work under high pressure. This creates ongoing problems for equipment makers and fleet operators, hurting both productivity and efficiency.

• High Pressure Drop & Heat Generation: Inefficient hydraulic directional control valve designs increase energy losses, fluid temperature, and seal wear.
• Complex Circuit Integration: Fixed monoblock valves offer limited modularity, making it harder to configure a multi-way hydraulic valve for specialized machinery functions.
• Unplanned Downtime & Costly Repairs: Entire valve assemblies may require removal when a single circuit experiences wear or failure.

To overcome these operational bottlenecks, KYDAC, a specialized OEM manufacturer of hydraulic valves and fluid power components, provides engineered control solutions. The KYDAC DCV100 multi-way directional control valve is designed as a centralized mobile hydraulic control valve for demanding heavy machinery applications.

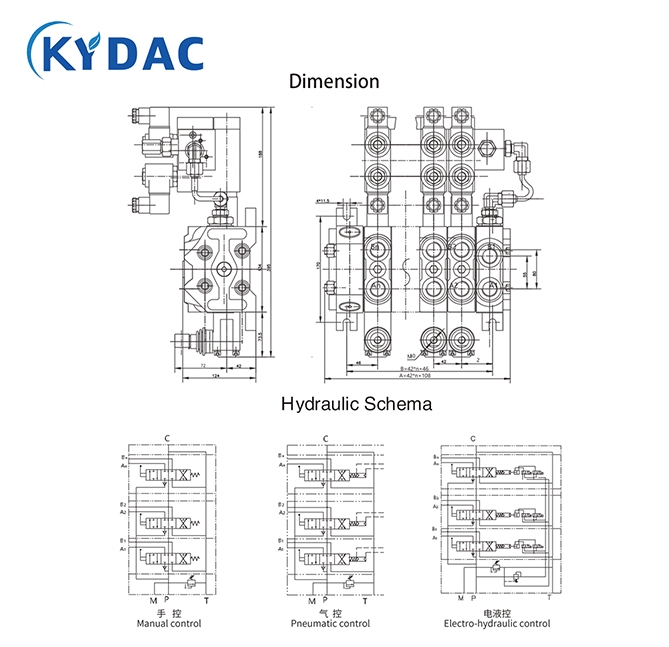

Technical Highlights of the KYDAC DCV100 Hydraulic Valve

Knowing the main specs of the DCV100 hydraulic valve lets system designers improve hydraulic setups, circuit layouts, and overall build strength. Here are the main points that set this DCV100 directional control valve apart in real work.

High Pressure and Flow Capacity for Heavy-Duty Performance

The DCV100 sectional directional control valve pairs solid flow rates with strong pressure handling. It fits tough mobile jobs on sites and in the field.

• 100 L/min Flow Capacity: This high-capacity 100 L/min hydraulic valve moves plenty of fluid. It keeps large cylinders and motors running in multi-function setups without strain.
• 350 Bar Maximum Pressure Rating: Built as a 350 bar hydraulic valve, the DCV100 handles heavy loads. It stays reliable when systems push the limits in daily use.
• High-Strength Cast Iron Body: The machined cast iron shell adds rigidity and resists wear. It also handles heat well, which matters for a construction machinery hydraulic valve on long shifts.
• Wide Thermal and Viscosity Resilience: The unit works from -40°C to +80°C and with oil from 12 to 400 cSt. That range covers most mobile machinery conditions crews meet year-round.

Sectional Modular Design and Spool Configuration

The modular structure makes the DCV100 sectional directional control valve suitable for machines requiring multiple independent hydraulic functions.

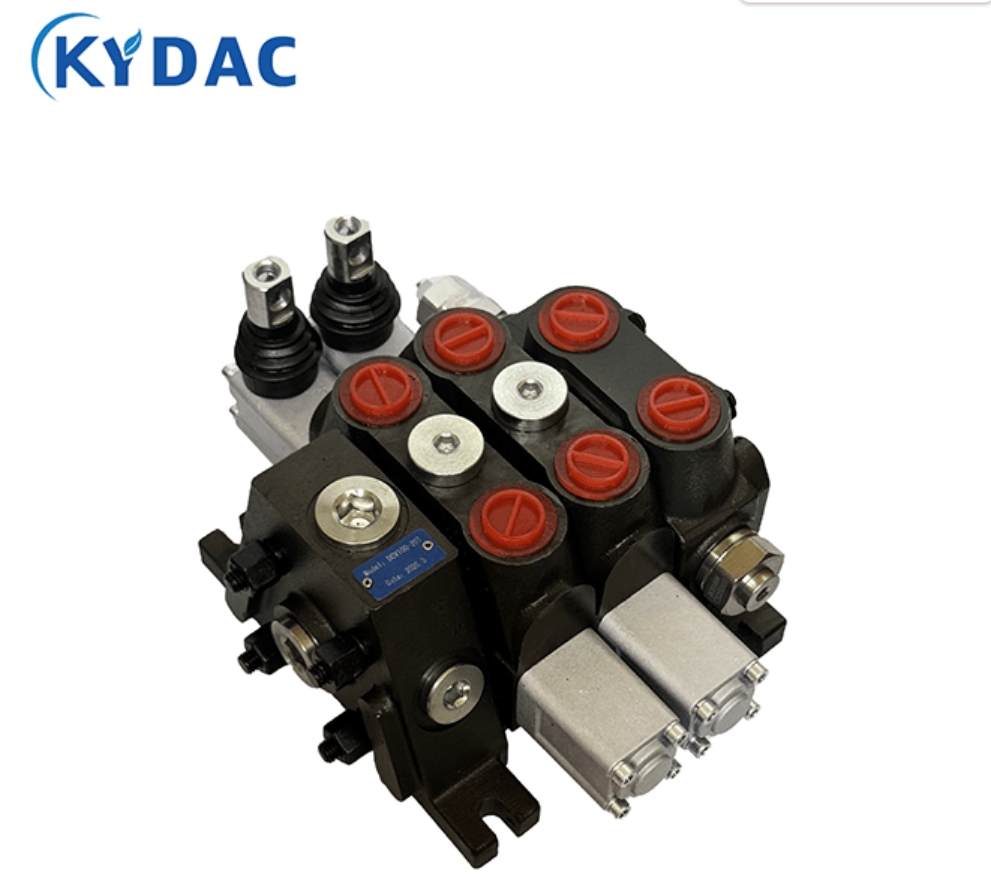

• 1 to 12 Section Assembly: As a configurable sectional hydraulic valve, the DCV100 allows engineers to combine 1 to 12 working sections according to the required hydraulic circuit.
• Versatile Spool Configuration: Multiple spool configuration options support different actuator behaviors, including single-acting cylinders, double-acting cylinders, hydraulic motors, and float functions.
• Individual Section Maintenance: The sectional design allows technicians to inspect or replace individual valve sections without replacing the complete multi-spool hydraulic valve assembly.
• Integrated Safety Valves: Primary relief valves and secondary shock or anti-cavitation valves can be integrated into selected sections to protect hydraulic circuits.

Practical Applications and Solved Machinery Challenges

The KYDAC DCV100 multi-way directional control valve connects hydraulic power with precise actuator control across mobile and industrial equipment. This multi-spool hydraulic valve is particularly useful where several hydraulic functions must operate from one compact valve bank.

Construction Machinery and Earthmoving Equipment

Such heavy excavation and loading equipment needs to have a good hydraulic valve for construction machines that will enable the operation of several actuators under pressure.

• Hydraulic Excavators and Wheel Loaders: The DCV100 hydraulic valve is used for controlling boom lift, arm operation, bucket tilt, and other hydraulic circuit controls.

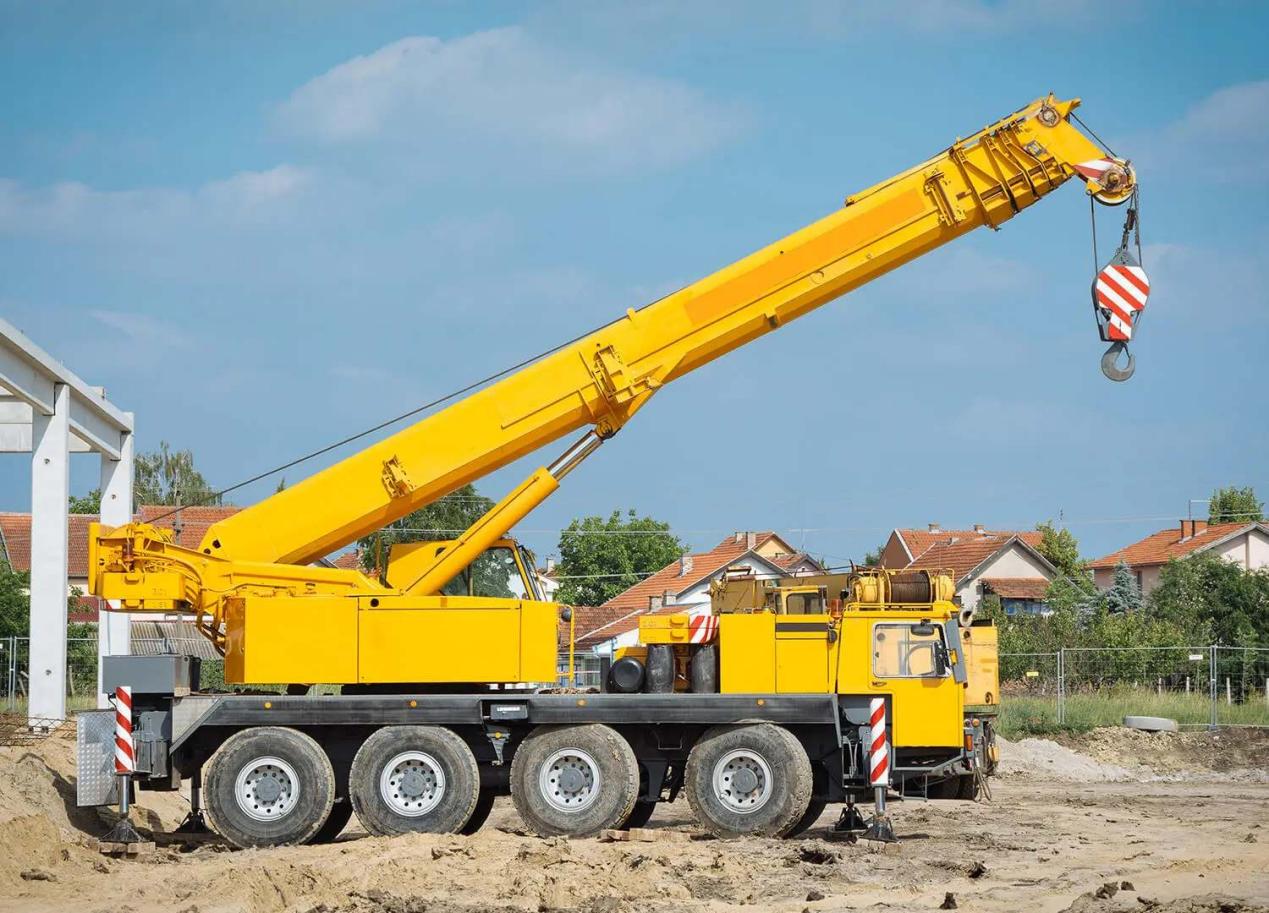

• Mobile Cranes and Rotary Drilling Rigs: The mobile hydraulic valve control is used for controlling outrigger position, winch operations, mast movement, among other hydraulic actions.
• Problem Solved: Correctly configured spool setup and flow capacity assist in improving actuator coordination and reducing unstable operations due to improper matching of hydraulic circuits.

Municipal Sanitation Vehicles and Drilling Rig Platforms

Special-purpose vehicles require compact and durable fluid distribution for repetitive work cycles.

• Garbage Compactor Trucks: A DCV100 multi-way directional control valve can manage compaction blades, tailgate cylinders, and bin lifters through separate valve sections.
• Tunnel Maintenance & Exploration Rigs: The multi-way hydraulic valve supports drill feed, rotation, lifting, and auxiliary hydraulic functions in compact working environments.
• Problem Solved: A sectional layout simplifies maintenance and allows individual circuits to be configured around different flow and pressure requirements.

Selection Guide for the DCV100 Multi-Way Directional Control Valve

Proper hydraulic valve sizing and circuit planning are essential for reducing pressure loss, limiting heat generation, and maintaining stable actuator response. Engineers should evaluate system flow, pressure, ports, and spool configuration before selecting a DCV100 valve.

Hydraulic Valve Sizing and Flow Requirements

Correct hydraulic valve sizing ensures that the selected DCV100 directional control valve matches pump output and actuator requirements.

• Flow Rate Matching: Confirm that maximum pump flow remains within the rated capacity of the 100 L/min hydraulic valve. Excessive flow can increase pressure drop and hydraulic oil temperature.
• Pressure Verification: Ensure maximum system pressure remains within the specified limit of the 350 bar hydraulic valve.
• Port Thread Compatibility: Verify that inlet, outlet, and working ports match the machine’s BSP, SAE, Metric, or other connection requirements.

For OEM projects, hydraulic valve sizing should consider both maximum flow and how often multiple sections operate simultaneously.

Spool Types and Actuation Methods

The correct spool configuration determines how each actuator responds in neutral and working positions.

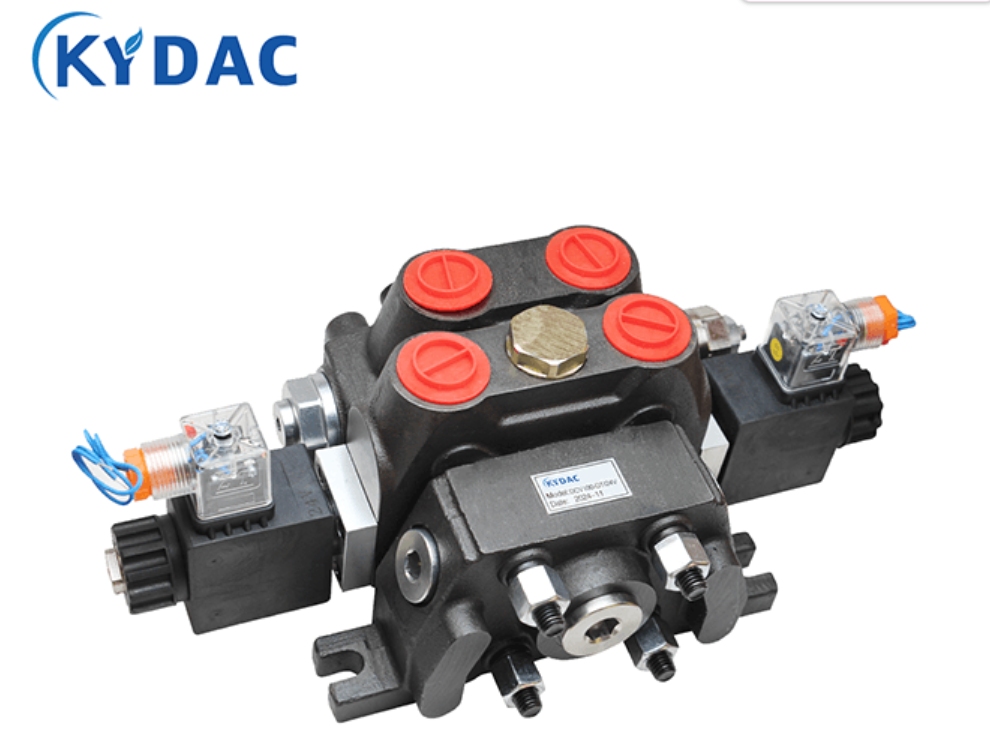

• Actuation Options: The DCV100 hydraulic valve can be configured for manual lever, pneumatic, hydraulic pilot, or electro-hydraulic control depending on application requirements.
• Spool Center Position: Open-center configurations are generally suited to fixed-displacement pump circuits, while other systems may require alternative center arrangements.
• Positioning Mechanisms: Spring return, detent, and other positioning options can be selected according to the operating cycle.

A correctly specified multi-spool hydraulic valve allows each section to be matched to the actuator it controls.

Why Partner with KYDAC

Equipping mobile machinery with a properly selected DCV100 sectional directional control valve can improve hydraulic control, simplify maintenance, and support reliable equipment operation. Working with an experienced DCV100 hydraulic valve manufacturer also helps OEMs avoid errors in hydraulic valve sizing, port selection, and spool configuration.

KYDAC offers full technical support for DCV100 hydraulic valve projects:

• Professional Selection Support: Engineers give setup advice based on machine flow, pressure, actuator type, and operating sequence.
• Comprehensive Technical Documentation: Product drawings, technical specifications, and installation details help with system integration.
• Reliable After-Sales Network: Technical support and spare parts help keep the DCV100 directional control valve running over time.

Contact the KYDAC engineering team to discuss your DCV100 multi-way directional control valve needs, ask for technical details, or get a quote.

FAQ

Q: What is the main advantage of a sectional directional control valve compared to a monoblock valve?

A: A sectional hydraulic valve allows multiple work sections to be configured in one valve bank. The DCV100 sectional directional control valve supports up to 12 sections, making circuit expansion and individual-section maintenance easier than with many fixed monoblock designs.

Q: Can the DCV100 hydraulic directional control valve work properly during extremely cold weather?

A: Yes. The DCV100 hydraulic valve is rated for operation at an ambient temperature of up to -40°C when used with proper hydraulic fluid, seals, and system conditions.

Q: How do I choose the right spool setup for my hydraulic actuators?

A: Spool setup will vary according to the type of actuator used and the neutral function of the actuator. Some actuators, like double-acting cylinders, motors, floats, and continuous flow, may require a specific spool setup.

Q: Is there any possibility of electro-hydraulic remote control with the KYDAC DCV100?

A: Yes. DCV100 multi-way directional control valve can accommodate various actuations depending on the valve setup, including manual, pneumatic, hydraulic pilot, and electro-hydraulic actuations.
