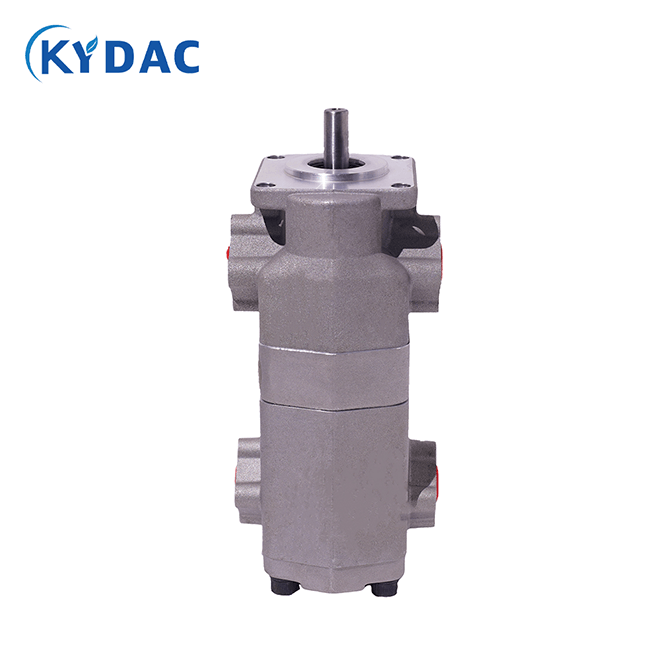

The 1.5PLA*Q0-PX Series Hydraulic Gear Pump is a compact and lightweight external gear pump designed for low- to medium-pressure hydraulic systems. Featuring a high-strength aluminum alloy housing, precision-machined gears, and a PX-type mounting configuration, this series provides stable flow output, high efficiency, low noise operation, and reliable long-term performance.

The 1.5PLA*Q0-PX Series is widely used in agricultural machinery, compact construction equipment, forklifts, hydraulic power units, lifting platforms, material handling systems, and various industrial hydraulic applications where compact size and dependable hydraulic power are required.

Working Principle

The 1.5PLA*Q0-PX Series operates according to the positive displacement principle.

1. Hydraulic oil enters the inlet port.
2. The drive shaft rotates the driving gear.
3. The driven gear rotates simultaneously.
4. Oil is carried around the gear periphery.
5. The meshing gears force the oil into the outlet chamber.
6. Pressurized oil is supplied to the hydraulic system.

This design ensures continuous and stable hydraulic flow output.

Product Features

• High-efficiency external gear pump design
• Compact and lightweight construction
• PX-type flange and shaft configuration
• Precision-machined gear set
• Stable flow and pressure output
• High volumetric efficiency
• Low noise and low vibration operation
• Excellent suction performance
• Multiple displacement options available
• Clockwise or counterclockwise rotation available
• Easy installation and maintenance
• Long service life
