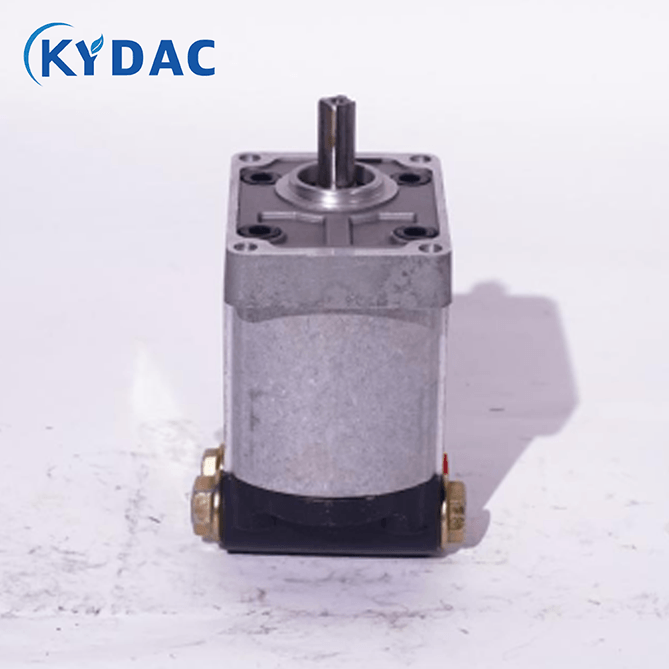

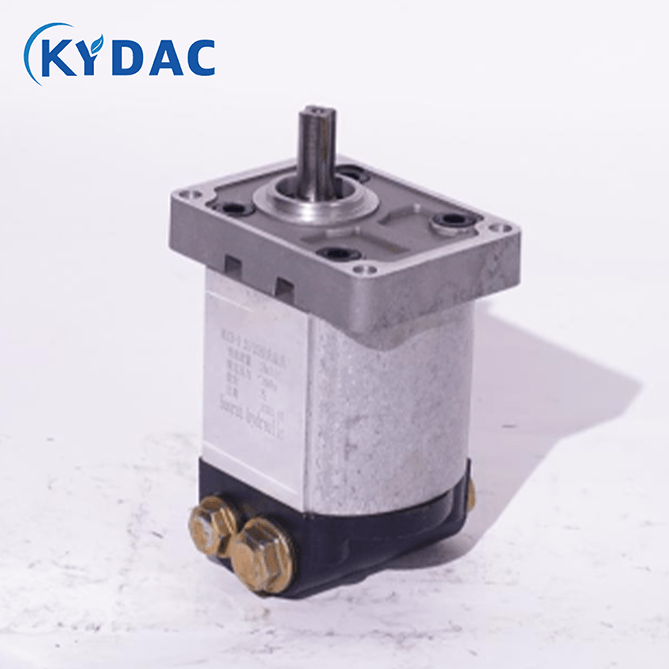

Name:Gear pump group 2PHA*B0-FAx Series
Model No.:2PHA-D*B0-FAx
Fit:New Holland/Fiat/Kubota Spare parts, Construction, Industrial machinery, Agriculture machinery, Tractor, Crane, Forklift, Heavy Equipment, Transportation
Replace: Parker PGP/PGM Series,GRF group2 series,HZZP2
Manufacturer:KYDAC
Material:Aluminum/Cast Iron
Max pressure:21MPa
Displacement:3~30 cm3/Rev
The 2PHA*B0-FAx Series Hydraulic Gear Pump is a compact and high-efficiency external gear pump designed for mobile and industrial hydraulic systems. Featuring a lightweight aluminum alloy housing, precision-machined gears, and optimized bearing support, this series delivers stable flow output, high volumetric efficiency, low noise operation, and excellent durability.
The FAx configuration typically refers to a specific flange mounting and shaft arrangement, making the pump suitable for OEM equipment, agricultural machinery, construction equipment, forklifts, hydraulic power units, and industrial hydraulic systems. The series is available in multiple displacements to meet various hydraulic flow requirements.
| Type | Displacement | Control pressure | Control flow | Max.Speed | Min.Speed |
| P1 | Oconst | ||||
| (cm³/rev) | bar | L/min | (r/min) | (r/min) | |
| 2PHA-3-D*B0-FAx | 3 | 100…180 | 2…30 | 4000 | 800 |
| 2PHA-4-D*B0-FAx | 4 | 4000 | 600 | ||
| 2PHA-6-D*B0-FAx | 6 | 4000 | 600 | ||
| 2PHA-8-D*B0-FAx | 8 | 3500 | 500 | ||
| 2PHA-10-D*B0-FAx | 10 | 3000 | 500 | ||
| 2PHA-12-D*B0-FAx | 12 | 3000 | 500 | ||
| 2PHA-14-D*B0-FAx | 14 | 4000 | 500 | ||
| 2PHA-16-D*B0-FAx | 16 | 4000 | 500 | ||
| 2PHA-18-D*B0-FAx | 18 | 3600 | 400 | ||
| 2PHA-20-D*B0-FAx | 20 | 3200 | 400 | ||
| 2PHA-22-D*B0-FAx | 22 | 3000 | 400 | ||
| 2PHA-25-D*B0-FAx | 25 | 3000 | 400 | ||
| 2PHA-28-D*B0-FAx | 28 | 2500 | 400 | ||
| 2PHA-30-D*B0-FAx | 30 | 2500 | 400 | ||
The 2PHA*B0-FAx Series operates using two precision gears rotating inside a closely fitted housing.
This positive displacement design ensures stable flow and reliable hydraulic power transmission.
If you are interested in any product, please contact us. We will introduce our products to you in more detail
