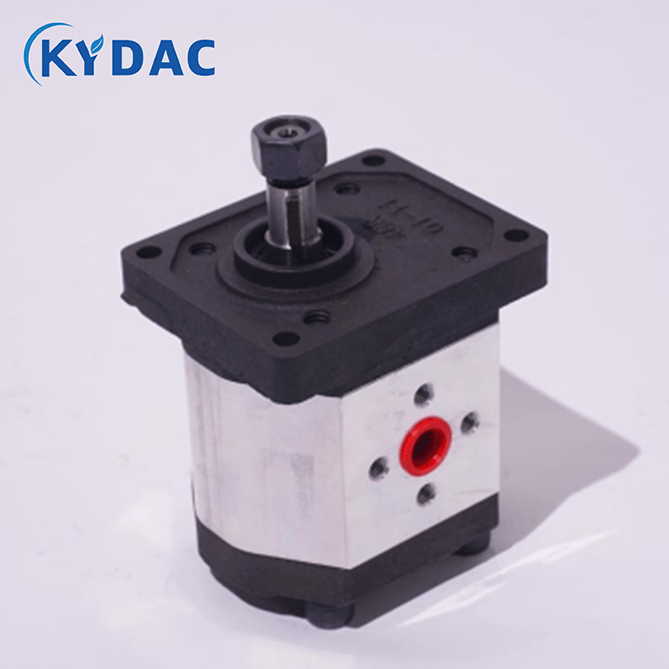

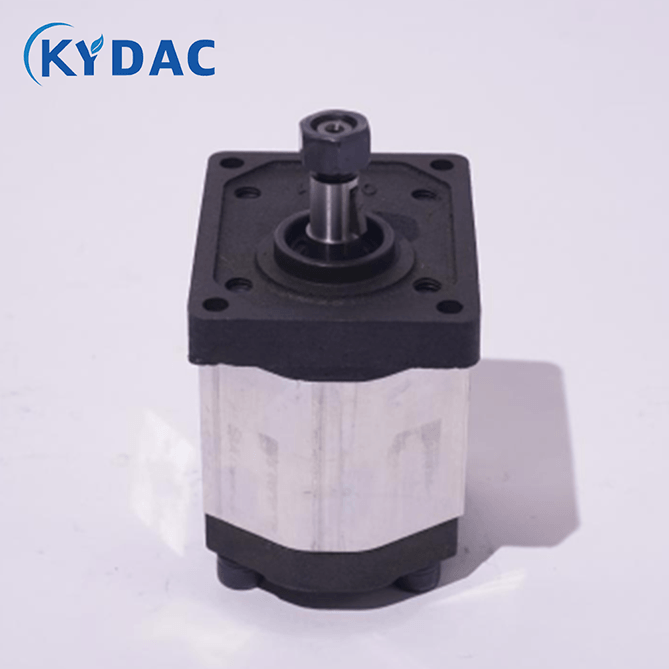

The 2PHA*B1 Series Hydraulic Gear Pump is a compact and reliable external gear pump designed for medium-pressure hydraulic systems. Featuring precision-machined gears, a high-strength aluminum alloy housing, and advanced sealing technology, the B1 series provides stable flow output, high volumetric efficiency, low noise operation, and excellent durability.

The 2PHA*B1 Series is widely used in agricultural machinery, construction equipment, forklifts, hydraulic power units, machine tools, lifting equipment, and various industrial hydraulic systems where efficient and dependable hydraulic power is required.

Working Principle

The 2PHA*B1 Series gear pump operates using two precision gears rotating inside a close-tolerance pump housing.

1. Hydraulic oil enters through the inlet port.
2. The drive shaft rotates the driving gear.
3. The driven gear rotates simultaneously.
4. Oil is carried around the outer circumference of the gears.
5. The meshing gears force oil into the outlet chamber.
6. Pressurized hydraulic oil is delivered to the hydraulic system.

This positive displacement principle ensures stable and continuous hydraulic flow.

Product Features

• High-efficiency external gear pump design
• Lightweight and compact aluminum alloy housing
• Stable flow and pressure output
• High volumetric and mechanical efficiency
• Low noise and low vibration operation
• Precision-machined gear set
• Excellent suction performance
• Reliable shaft sealing system
• Multiple displacement options available
• Clockwise and counterclockwise rotation options
• Easy installation and maintenance
• Long service life under continuous-duty operation
