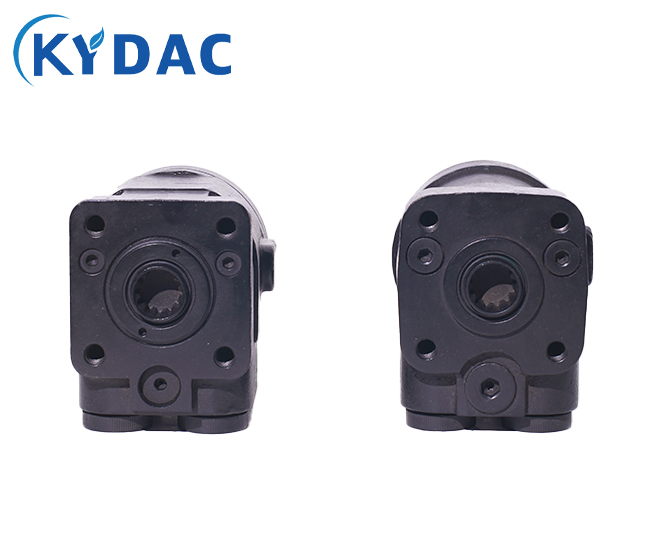

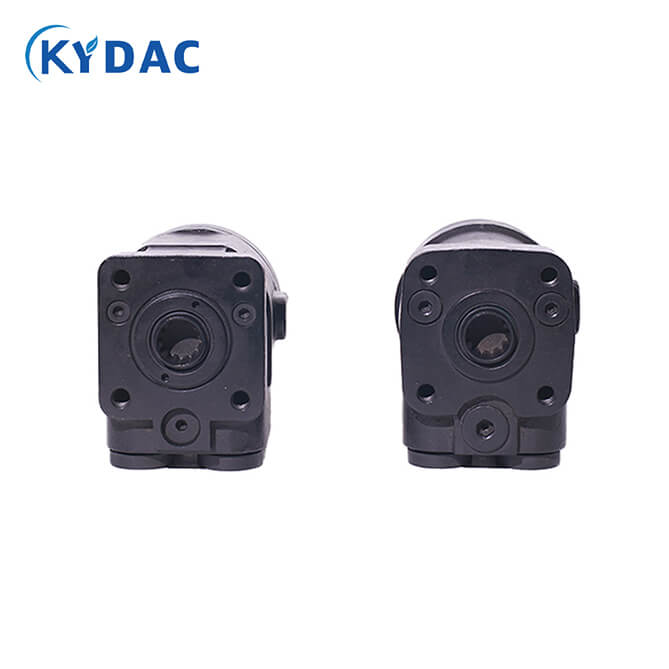

The 060 Series Hydraulic Steering Control Units (SCU) are advanced hydraulic steering modules designed to provide smooth, precise, and reliable steering control for mobile and off‑highway machinery. These steering units are engineered to convert operator steering input into controlled hydraulic flow to steering cylinders or orbit motors, improving maneuverability and safety in hydraulic systems.

The 060 Series SCUs are widely used in agricultural tractors, wheel loaders, forklifts, telehandlers, skid steers, cranes, and other mobile equipment where reliable hydraulic steering response and load‑holding capabilities are critical.

Note:L is the maximum length dimension of product.This dimension on some products may 2mm or 4mm shorter.

🔹 Working Principle

The 060 Series SCU acts as the steering valve in a hydraulic steering circuit:

1. Operator Input: Steering wheel or joystick input causes the internal spool to shift.
2. Pilot Logic: Internal pilot control provides proportional flow based on operator input.
3. Priority Flow: The valve directs priority hydraulic oil to the steering actuator (cylinder or orbit motor).
4. Feedback and Neutral Return: A mechanical or hydraulic feedback mechanism ensures accurate return to center when steering input is released.
5. Load Balance: Built‑in load logic maintains balanced steering even under varying load conditions.

This design provides smooth, predictable steering performance and prevents drift or unintended movement.

🔹 Applications

The 060 Series SCUs are commonly used in:

• Wheel loaders and skid steer loaders
• Agricultural tractors and harvesters
• Forklifts and reach stackers
• Telehandlers
• Excavators and compact loaders
• Industrial vehicles
• Material handling systems
• Cranes and lifting equipment
• Mining machinery and construction equipment

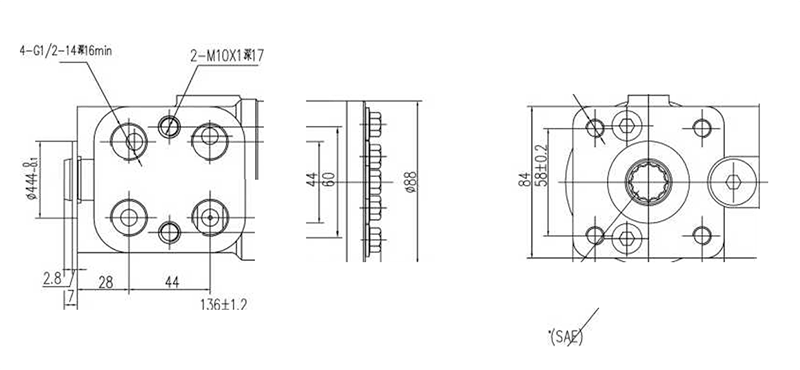

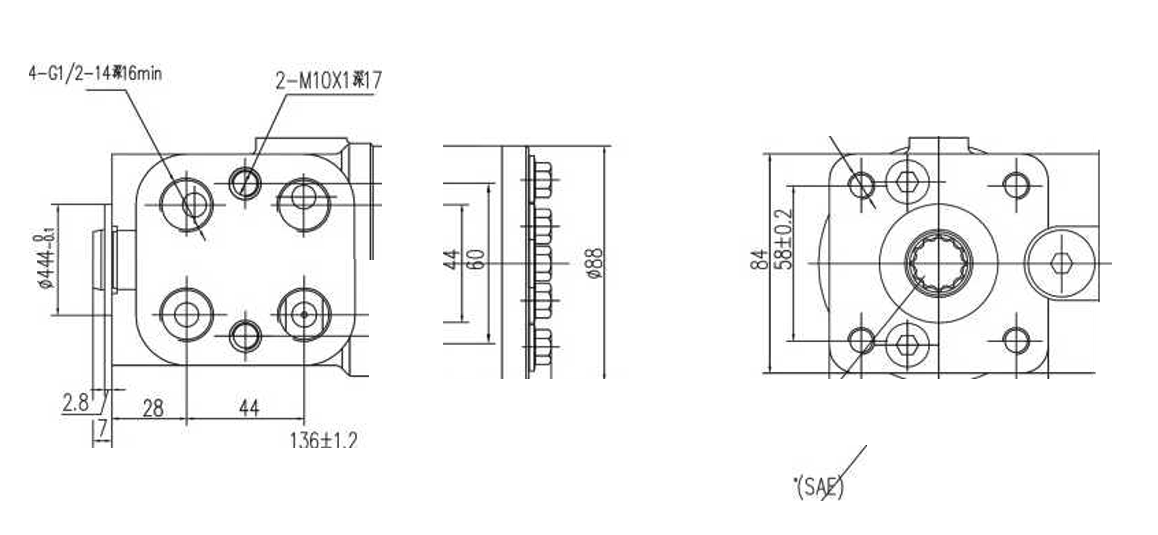

060 Mounting Link Size
