Boost Hydraulic Efficiency with KYDAC DCV100 Control Valves

Fluid Dynamics and Flow Control Challenges in Modern Heavy Equipment

Modern heavy machinery demands exceptional precision and power under severe operational loads. Navigating complex hydraulic flow distribution requires advanced valve architecture engineered to minimize energy loss and maximize hydraulic flow control efficiency.

Primary Bottlenecks in Heavy-Duty Hydraulic Systems

Industrial hydraulic systems frequently experience performance degradation due to fluid routing inefficiencies.

• Accumulation of severe pressure drops across complex hydraulic piping and restrictive internal passages.
• Flow starvation during simultaneous multiple actuator control, causing unpredictable cylinder deceleration.
• Excessive heat generation resulting from fluid throttling, which accelerates oil oxidation and damages dynamic seals.

The Critical Function of Modern Control Valves

High-performance hydraulic flow distribution relies heavily on robust directional control technology.

• Centralized fluid routing through a multi-way directional control valve across multiple work sections for consolidated machine management.
• Precision multi-spool hydraulic valve control enabling smooth, proportional response during compound maneuvers.
• Substantial reduction in total system energy loss, improving overall hydraulic flow control, fuel economy, and equipment longevity.

As a dedicated manufacturer of high-performance fluid power solutions, KYDAC engineered the KYDAC DCV100 series sectional directional control valve to resolve these operational challenges in heavy mobile machinery. This DCV 100 directional control valve combines high-flow capacity, modular configuration, and flexible control options for demanding hydraulic applications.

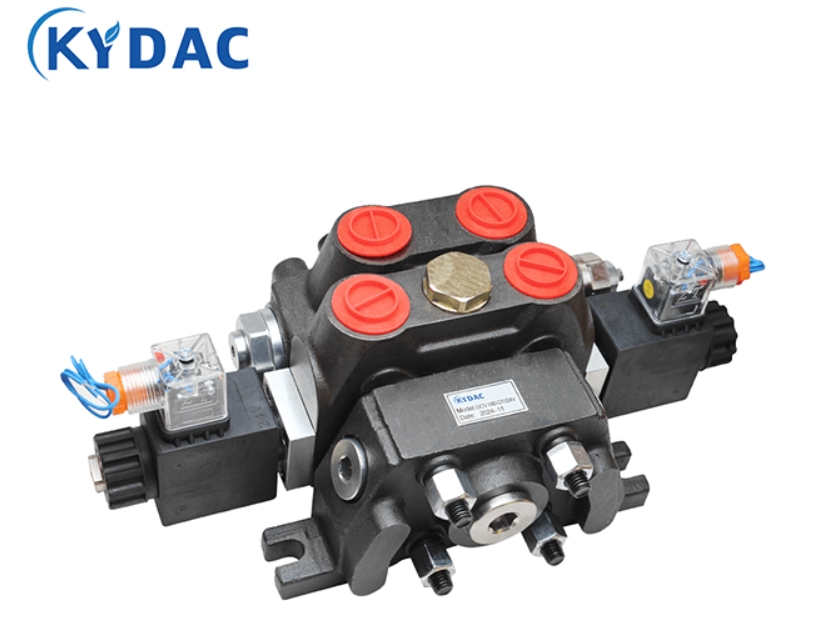

Engineering Excellence of the KYDAC DCV100 Directional Control Valve

Achieving superior hydraulic flow control requires a valve built on high-grade metallurgical standards and precise internal geometry. The KYDAC DCV100 multi-way directional valve provides a robust solution for complex hydraulic flow distribution in construction and mobile equipment.

Core Technical Parameters for High Demand Systems

The technical parameters of the DCV 100 hydraulic valve reflect its ability to manage heavy fluid volumes under extreme working pressure.

• Nominal flow capacity provided by a 100 L/min hydraulic valve configuration to support large-displacement actuators and high-demand circuits.
• Pressure handling capability with a rated 350 bar hydraulic valve configuration suitable for heavy-duty machinery.
• Versatile sectional structure supporting modular configuration from 1 to 12 work sections based on machine complexity, making the DCV100 suitable as a high-flow hydraulic valve for multi-function equipment.

Material Reliability and Structural Integrity

Mechanical durability supports long service life across demanding field environments.

• High-strength cast iron valve body engineered to withstand repeated high-pressure hydraulic loads.
• Broad fluid compatibility, accepting a permissible viscosity range from 12 to 400 cSt for different hydraulic oil formulations.
• Rugged ambient operating temperature tolerance spanning from -40°C to +80°C, supporting stable operation across a wide range of working environments.

Operational Strategies for Enhanced Hydraulic Flow Distribution

Optimized hydraulic flow control converts engine power into smooth, predictable mechanical work. Implementing a sectional directional control valve transforms how hydraulic oil reaches individual working attachments and improves overall hydraulic flow distribution.

Precision Multi-Actuator Control without Power Loss

Managing a multi-spool hydraulic valve system requires stable and predictable fluid distribution across active circuits.

• Fine-metered spool notches help reduce initial mechanical jerks during fine-positioning operations.
• Parallel and series internal circuit configurations can be selected according to different multiple actuator control requirements.
• Optional load-sensing configurations allow pump output to respond more closely to real-time hydraulic demand, improving hydraulic flow control efficiency.

For equipment using several cylinders or hydraulic motors, the DCV 100 multi-way directional valve provides centralized control while helping system designers coordinate multiple functions within one valve assembly.

Modular Customization Capabilities for Equipment Designers

System integrators benefit from flexible building-block designs tailored to complex machine schematics.

• Inclusion of port relief valves and anti-cavitation valves within individual valve sections according to system requirements.
• Integration of diverse control options including manual, pneumatic, electro-hydraulic, or proportional solenoid control.
• Modular architecture supporting different circuit combinations for custom hydraulic valve applications and easier section-level maintenance.

This flexibility makes the DCV 100 flexible flow valve suitable for OEM engineers who need to configure hydraulic circuits around machine-specific flow, pressure, actuator, and installation requirements.

Practical Application Scenarios and On-Site Problem Solving

Effective fluid dynamics deliver real-world productivity gains when implemented in severe-duty mobile machinery. The DCV 100 multi-flow hydraulic valve supports demanding applications where stable hydraulic flow distribution and coordinated actuator movement are essential.

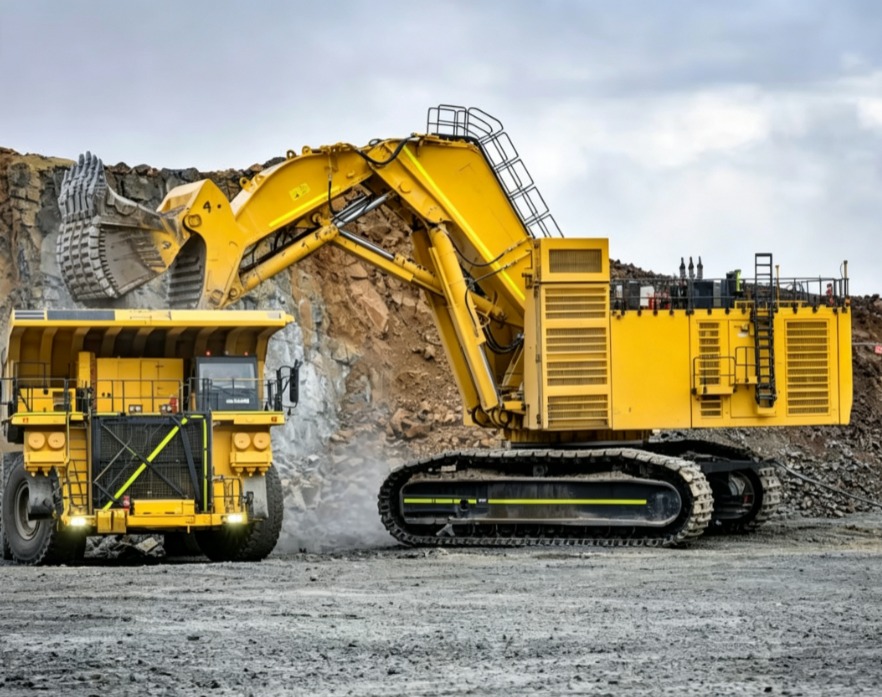

Heavy Excavators and Mining Equipment Operations

Excavators operating in demanding environments require coordinated control between boom, arm, bucket, travel, and swing functions.

• Supporting smoother boom, arm, bucket, and swing operation during combined movements.
• Delivering high flow to large hydraulic cylinders, making the 100 L/min hydraulic valve configuration suitable for demanding construction machinery circuits.
• Helping manage fluid routing efficiently during prolonged operation where unnecessary throttling can contribute to hydraulic heat generation.

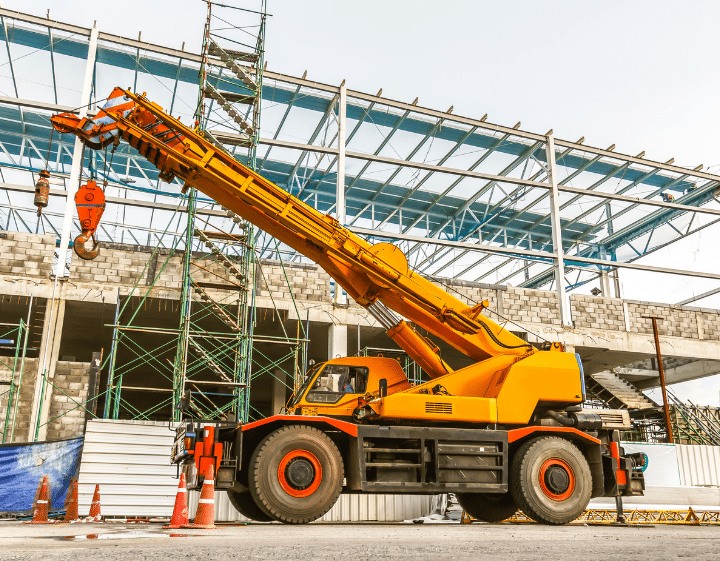

High-Tonnage Mobile Cranes and Special Purpose Vehicles

High-tonnage mobile cranes rely on predictable movement for delicate lifting and positioning tasks.

• Providing controlled metering for boom telescoping, luffing, and winch circuits.
• Supporting multiple actuator control across chassis outriggers, steering systems, and upper-deck hydraulic functions.
• Compact DCV 100 flexible flow valve architecture helping equipment designers manage installation space in sanitation vehicles, municipal machinery, cranes, and other special-purpose equipment.

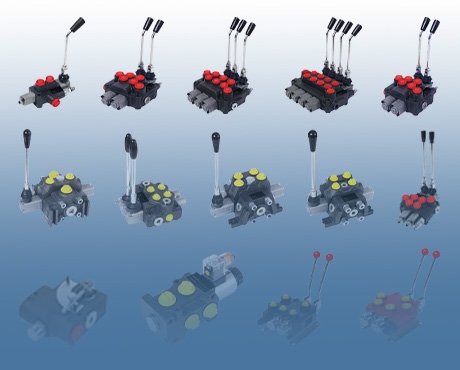

Value Advantages of Partnering with KYDAC

Selecting the right sectional directional control valve manufacturer helps OEMs achieve consistent product quality and more effective hydraulic system integration.

Rigorous Manufacturing Standards and Engineering Support

Quality fluid power solutions demand strict control throughout manufacturing and assembly.

• Precision-machined valve bores and spools designed to support controlled internal leakage and reliable metering performance.
• Pressure and functional testing before factory shipment to verify the performance of the assembled DCV 100 hydraulic valve.
• Technical coordination for custom hydraulic valve configurations based on OEM circuit layouts, operating pressure, required flow, control method, and number of work sections.

Upgrade Your Fluid Control Performance Today

When heavy equipment requires high flow, pressure capacity, and coordinated multi-circuit operation, the KYDAC DCV 100 directional control valve provides a flexible solution for complex hydraulic systems. As a sectional directional control valve manufacturer, KYDAC supports OEM customers with DCV100 configurations for construction machinery, mobile equipment, and specialized hydraulic applications.

Contact KYDAC to evaluate your hydraulic schematics, request detailed specifications, or discuss a custom hydraulic valve configuration for your machinery project.

FAQ

Q: How does a sectional directional control valve differ from a monoblock valve in heavy machinery?

A: A sectional directional control valve consists of individual modular sections assembled into a valve bank, allowing circuit quantity and functions to be configured according to machine requirements. A monoblock valve uses an integrated body and is generally suited to more fixed hydraulic circuit layouts.

Q: Why is a 350 bar pressure rating important for a 100 L/min hydraulic valve?

A: A 350 bar hydraulic valve rating allows the valve to operate in high-pressure hydraulic systems, while a 100 L/min hydraulic valve capacity supports circuits requiring substantial oil flow. Together, these characteristics make the DCV 100 hydraulic valve suitable for many heavy-duty mobile equipment applications.

Q: How does the DCV 100 directional control valve support combined movements?

A: The DCV 100 directional control valve uses multiple spool sections to route hydraulic oil between different actuators. Depending on the selected circuit and control configuration, the multi-spool hydraulic valve can support coordinated multiple actuator control and efficient hydraulic flow distribution.

Q: Can the KYDAC DCV 100 hydraulic valve withstand harsh outdoor environmental conditions?

A: The KYDAC DCV 100 hydraulic valve uses a high-strength cast iron body and is designed for ambient temperatures from -40°C to +80°C, with a permissible hydraulic fluid viscosity range of 12 to 400 cSt. These characteristics make the DCV 100 multi-way directional valve suitable for various outdoor and heavy-equipment operating environments.
