Custom Hydraulic Valves: Boost OEM Machinery Performance

In the tough world of Original Equipment Manufacturing (OEM), the gap between a strong machine and an average one often comes from the accuracy of its hydraulic system. As machines become more automated and compact, regular parts often fail to hit specific integration and efficiency targets. KYDAC steps in here. This hydraulic solutions provider brings over 24 years of manufacturing experience. It supplies specialized hydraulic valve technology that drives leading companies around the globe.

The Strategic Importance of Custom Hydraulic Valve Design

Customization allows engineers to transcend the limitations of standard components, ensuring that every valve is a perfect fit for the machine’s unique operational envelope.

Tailored Spool Configurations for Precise Actuation

The heart of any directional control valve is its spool, and custom spool design is essential for achieving the specific flow characteristics required by specialized actuators.

• Optimized Flow Logic: We provide custom spool types—such as O, Y, and M configurations—specifically designed to manage neutral positions and transition flow according to the machine’s safety and operational protocols.
• Enhanced Control Sensitivity: By customizing the spool’s metering notches, we ensure smooth starts and stops in heavy-duty lifting or precision grading, eliminating the jerky movements often found in standard valves.

Integrated Valve Blocks and Manifolds to Minimize Leakage

As space within modern machinery becomes more restricted, the move toward integrated custom hydraulic manifolds is no longer optional.

• Space-Saving Integration: Custom valve blocks like our EMC series integrate multiple independent units into a single compact body, reducing installation space by over 50%.
• Elimination of Leakage Points: By consolidating multiple functions into a monoblock or specialized sectional stack, we drastically reduce the number of external hoses and joints, which are the primary sources of hydraulic leaks and pressure drops.

High-Pressure and High-Flow Solutions for Heavy-Duty Machinery

Heavy construction and mining equipment require hydraulic components that can handle immense power without compromising on response speed or reliability.

The DCV Series: Mastering Extreme Pressure and Flow

For the largest equipment on earth, such as 800-ton excavators and deep-sea drilling platforms, standard valves cannot withstand the peak loads.

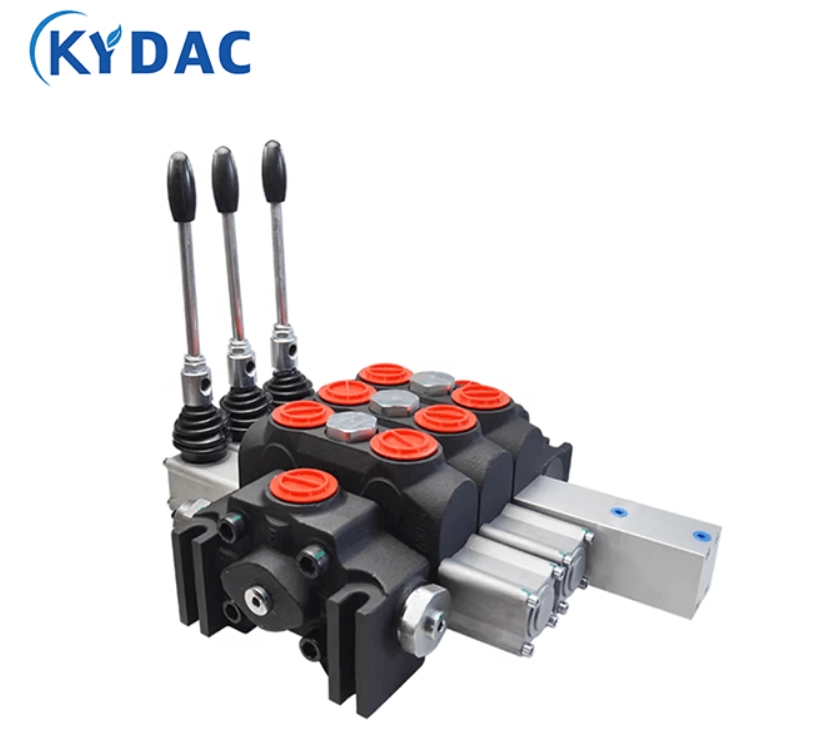

• DCV140 High-Flow Capability: This sectional valve handles a nominal flow rate of 140 L/min at a maximum working pressure of 350 bar, providing the “instant power” needed for rapid boom lifting and high-torque drilling.
• Modular Expandability: The sectional design allows OEMs to configure up to 12 work sections like building blocks, managing everything from travel and swing to auxiliary attachments from a single control center.

4WE Series Solenoid Valves for Rapid Response Automation

Hydraulic switching speed often determines cycle time in robotics and automated production lines.

• Millisecond Switching Time: Our 4WE10 series solenoid valves deliver response times below 100ms. This supports fast sequential operations in injection molding and metallurgical equipment.
• Global Electrical Compatibility: These valves work with various voltages, such as DC 12/24V and AC 110/220V. OEMs can ship machinery worldwide without changing the electrical setup.

Solving Application-Specific Challenges with Custom Valve Groups

Standard valves can run into trouble in tough conditions or specific farm jobs. This often means more downtime and higher repair costs.

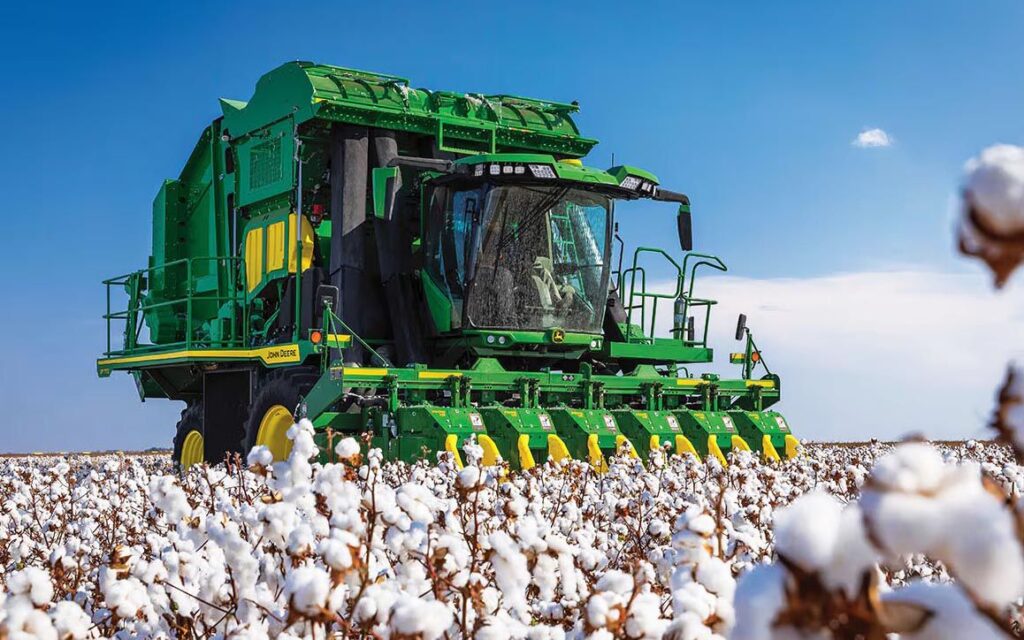

Specialized Solutions for Harsh Agricultural Environments

Agricultural machinery like silage balers deals with tough conditions. These include crop debris, varying temperatures, and heavy loads.

• Silage Baler Special Valve Groups: We built a compact valve unit. It manages the full baling process from picking and feeding to compaction and unloading, all in one solid block.
• Environmental Resilience: These valves use special seals that resist farm chemicals. They run from -40°C to 80°C and stay reliable during winter harvests or summer heat.

Explosion-Proof Safety for Mining and Oil & Gas

Standard electrical components are hazardous in environments filled with flammable gases or combustible dust, requiring specialized isolation technology.

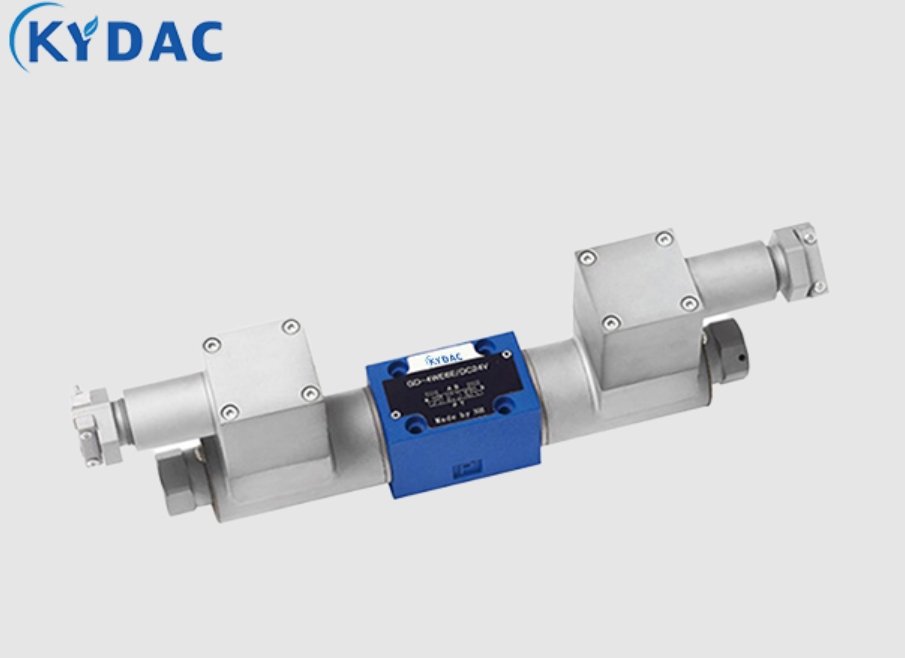

• Intrinsic Safety Design: The GD-4WE6E series explosion-isolation solenoid valves feature a completely isolated electromagnetic coil. This removes any chance of sparks causing ignition.
• Rugged Material Options: OEMs can choose between high-strength cast iron or stainless steel bodies. The stainless steel option gives better resistance to corrosion for offshore or chemical processing applications.

Optimizing OEM Integration and Total Cost of Ownership

A custom solution is not just about performance; it is also about simplifying the manufacturing process and reducing the long-term costs for the end-user.

Simplifying the Installation and Maintenance Process

Customized hydraulic components are designed to be “plug-and-play,” which significantly reduces the assembly time on the OEM production line.

• Standardized Interfaces: Despite the custom internals, we maintain standard ISO 4401 or SAE mounting interfaces to ensure the components are easy for technicians to install and replace.
• Centralized Fault Diagnosis: Integrated blocks often include clear port markings and diagnostic interfaces, allowing operators to quickly identify issues and minimize equipment downtime.

Enhancing Fuel Economy and System Life

Efficiency in hydraulic control directly translates to lower fuel consumption and a longer lifespan for the pump and other core components.

• Load-Sensitive (LS) Logic: Many of our custom solutions, such as the Double Pump Valve Group, intelligently merge or split pump flows based on real-time demand, reducing heat generation and saving 15%-25% in energy consumption.
• Pressure Compensation: By ensuring that flow remains constant regardless of load changes, our valves prevent actuators from “lagging,” which protects the system from the pressure spikes that cause premature wear.

Ready to Optimize Your Machine’s Performance?

KYDAC does more than build parts. We work with you on fluid power projects. If you design a new excavator or a special farm machine, our engineers can create a solution that meets your needs. Contact us now for a tailored technical proposal and quote on your next major project.

FAQ

Q: Why should an OEM choose custom hydraulic manifolds over traditional piped systems?

A: Custom hydraulic manifolds cut the chances of leaks quite a bit. They also make the machine take up less space. Assembly time drops at the same time. Valves gain extra protection when work conditions turn rough.

Q: Can custom hydraulic valves help in reducing the fuel consumption of heavy machinery?

A: Yes. The system supplies just the flow and pressure the job requires once load-sensing (LS) and pressure-compensation technologies are added. Heat and wasted energy fall by up to 25% during normal operation.

Q: What materials are typically used for custom valve blocks in high-pressure applications?

A: High-strength ductile iron like GGG50 works well up to 350 bar. It resists fatigue after repeated cycles. Stainless steel steps in when corrosion risk is high, and it lasts longer in those settings.

Q: How does spool configuration affect the safety of construction machinery?

A: Spool configuration sets the oil path when the control sits in neutral. A well-chosen spool stops actuators from drifting. It also lets pressure release safely in an emergency stop.

Q: Is it possible to integrate electronic control interfaces into traditional hydraulic valve blocks?

A: Yes. Many current setups use solenoid pilots to link directly with the machine ECU or PLC. This supports automated control in daily use.
