How Hydraulic Valves Boost Agricultural Machinery Efficiency

Farming today is highly competitive. Efficiency matters more than ever if you want to stay in business. As equipment grows more advanced, the call for accurate fluid power control rises. This puts the hydraulic valve for agricultural machinery at the center of operations. KYDAC sees that a tractor performs only as well as its hydraulics allow. These valves direct power where needed. Fitting reliable valves into machines lets farmers shorten work cycles and use less fuel. Attachments then handle jobs with better accuracy.

Enhancing Tractor Versatility with High-Performance Control Valves

The modern tractor must function as a multi-purpose power platform capable of handling everything from front-end loaders to complex rear-mounted implements.

The Power of Multi-Spool Directional Control

Multi-spool configurations allow a single valve body to manage multiple independent hydraulic circuits simultaneously, which is essential for coordinated movements.

• Centralized Command: Our multi-spool hydraulic valve designs enable operators to control lifting, tilting, and auxiliary functions from a compact interface.
• Leak-Proof Reliability: The monoblock cast iron construction of the P Series eliminates external leakage points between sections, ensuring a clean and efficient system.
• Customizable Sections: KYDAC offers configurations from 1 to 7 sections, allowing for a “build-as-needed” approach to tractor hydraulic system design.

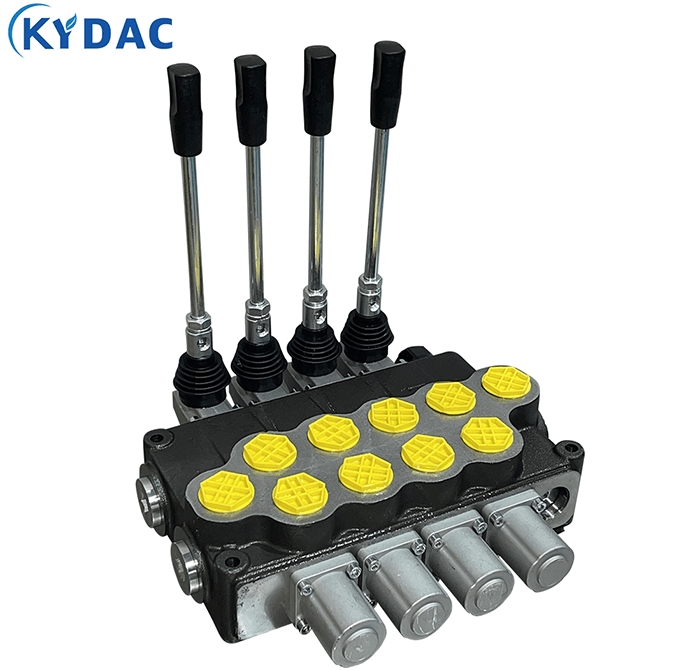

Boosting Loader Performance with the P Series

The tractor loader hydraulic valve is critical for the rapid response required during intensive material handling tasks.

• High Flow Output: Models like the P120 Monoblock Directional Control Valve provide a rated flow of up to 120 L/min, drastically shortening cylinder cycle times for rapid boom and bucket operation.
• Shock Resistance: Designed with high-strength cast iron, these valves handle the heavy vibrations and mechanical shocks typical of front-end loader work.
• Single/Double Acting Versatility: The P120 series is engineered to operate both double-acting and single-acting cylinders, making it the perfect tractor hydraulic valve for diverse implement kits.

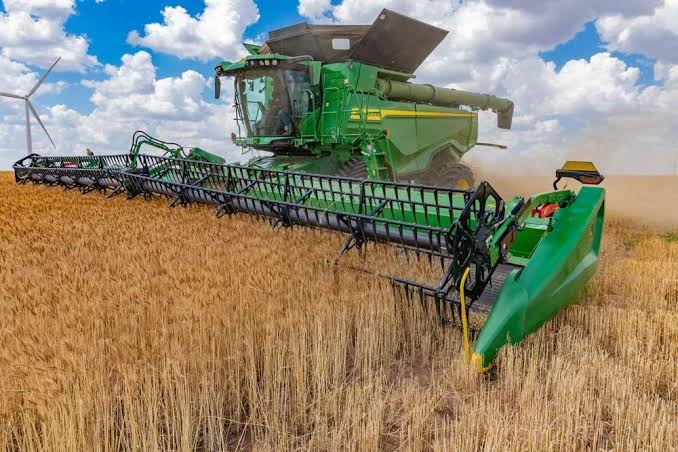

Achieving Precision in Heavy-Duty Farm Equipment

For large-scale agricultural operations involving harvesters and heavy tillers, high-pressure stability is the foundation of machine longevity.

High-Pressure Reliability for Complex Machinery

When machines hit heavy loads in harvest or deep plowing, the agricultural hydraulic control valve keeps delivering steady power.

• Extreme Pressure Ratings: The DCV Series, including the DCV100, handles working pressures up to 350 bar (5076 psi). This setup works well with stronger yet compact cylinders.
• Flow Optimization: Nominal flow rates run from 20 L/min to 140 L/min across the DCV series. Large actuators still get enough fluid without big drops in pressure.
• Sectional Flexibility: The sectional multi-way directional control valve design fits up to 12 work sections. That gives control over dozens of actuators on high-end drilling or harvesting platforms.

The Role of Monoblock Valves in System Stability

Monoblock valves give a solid and space-saving answer for medium-flow systems that need tight integration.

• Compact Footprint: Models like the ZT-L12 multiple directional valve pack several functions into one casting. This works well for small loaders and sanitation vehicles.
• Thermal Adaptability: KYDAC valves pass tests for ambient temperatures from -40℃ to 80℃. They stay reliable from cold winter starts through summer heat.
• Precision Metering: Fine spool machining creates smooth back-and-forth motion. This improves how core cycles like steering and leveling run.

Optimizing Efficiency with Flow and Pressure Management

Efficient farming requires more than just raw power; it requires the intelligent distribution of hydraulic energy to minimize waste.

Precision Flow Control for Specialized Attachments

Proper hydraulic flow control is essential for attachments like seeders or sprayers that require constant speed regardless of load changes.

• Pressure Compensation: The LKF-1 series pressure-compensated variable flow control valve maintains a steady output, ensuring that motors and cylinders operate at consistent speeds even as system pressure fluctuates.
• Wide Adjustment Range: With flow control options ranging from 0-40 L/min to 0-114 L/min, our hydraulic valve for farm equipment can be tailored to the specific flow needs of any implement.
• Modular Check Valves: Integrating modular restrictive check valves like the Z2FS series provides additional layers of control, preventing reverse flow and maintaining actuator position.

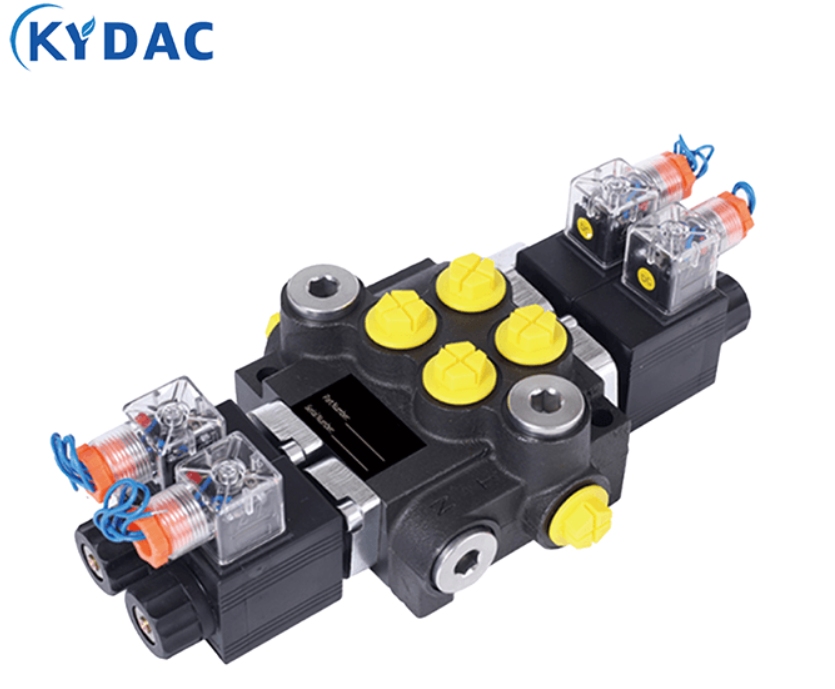

Automating Field Operations with Solenoid Technology

The shift toward smart farming has made the tractor hydraulic control valve with electronic signals a vital component for automated machinery.

• Rapid Response: KYDAC’s SD Electromagnetic Controlled Directional Control Valves feature response times under 100ms, enabling precise automated adjustments during field operations.
• PLC/ECU Integration: Standard DC 12V/24V solenoid drives allow our valves to communicate directly with tractor main controllers for sequence-based operations.
• Baling Specialization: Our Green Storage Baling Machine Special Valve Group is specifically designed for the picking, compression, and bundling cycles of silage balers, achieving energy savings of up to 25%.

The KYDAC Advantage: Your Strategic Partner for Hydraulic Infrastructure

Choosing KYDAC means more than just buying a component; it means securing a high-quality supply chain for your production line.

Decades of Manufacturing Excellence and OEM Capability

As an industry-leading agricultural hydraulic valve manufacturer, we combine decades of research with state-of-the-art production.

• Advanced R&D: Our team of over 200 experts and 30 senior engineers focuses on delivering breakthroughs in fluid power.
• Precision Machining: We utilize processing equipment lines imported from Germany and Japan to ensure every valve meets international ISO/TS16949 standards.
• OEM & ODM Services: We excel in providing customized production, allowing clients to leverage our facilities to manufacture components under their own brand guidelines.

Global Supply Chain and Reliable Support

In a fast-paced market, the speed of delivery matters just as much as product quality.

• Agile Manufacturing: Our global supply network moves high-quality components to customers in over 50 countries right when they need them.
• Comprehensive Warranty: We stand by our quality with a 2-year warranty on every product. This gives both manufacturers and end users real peace of mind.
• Technical Assistance: Our local teams help from the first design steps through after-sales service. That keeps your operations running smoothly for years.

Conclusion: Driving the Future of Agricultural Productivity

The path to a more productive farm begins with superior hydraulic control. As a premier tractor hydraulic valve supplier, KYDAC is dedicated to providing the high-flow, high-pressure solutions that modern agriculture demands. By integrating our OEM hydraulic valve for agricultural machinery into your equipment, you are choosing a solid foundation for efficiency, reliability, and precision.

Unlock the full potential of your machinery today. Contact the KYDAC technical team to receive a tailored configuration plan and take the first step toward a more efficient future.

FAQ

Q: How does a multi-way directional valve improve tractor efficiency?

A: It puts control of several actuators into one unit. This cuts down on extra pipes and lowers energy waste across the system.

Q: Can KYDAC valves replace components from brands like Yuken or Rexroth?

A: Yes. Many KYDAC valves, such as the 4WE series and DCV series, match 100% with mainstream brands like Yuken or Rexroth.

Q: What is the benefit of using a monoblock valve for small loaders?

A: The monoblock design stays compact. It removes internal seals between sections, which lowers leak risks when vibration runs high on small loaders.

Q: Does KYDAC support custom voltage requirements for solenoid valves?

A: Yes. We offer coil choices that cover DC 12V/24V and AC 110V/220V. These fit smoothly into different electrical setups.

Q: What impact does a 350 bar pressure rating have on heavy equipment?

A: It lets the system handle heavy loads and sudden shocks. This shows up in tasks like braking or intense harvesting, so the machinery lasts longer overall.
