Monoblock vs Sectional Directional Valves: Which to Choose

In today’s heavy machinery hydraulics, choosing the right hydraulic directional control valve plays a key role in effective hydraulic system design. Engineers face a key choice during hydraulic circuit design when they weigh monoblock vs sectional directional valve setups. Learning the structural differences, performance balances, and ideal applications for each type helps reach better operation and control costs.

As a leading global hydraulic valve manufacturer, KYDAC supplies reliable fluid power solutions. These focus on precise control, stable system pressure, and long durability across various mobile hydraulic systems.

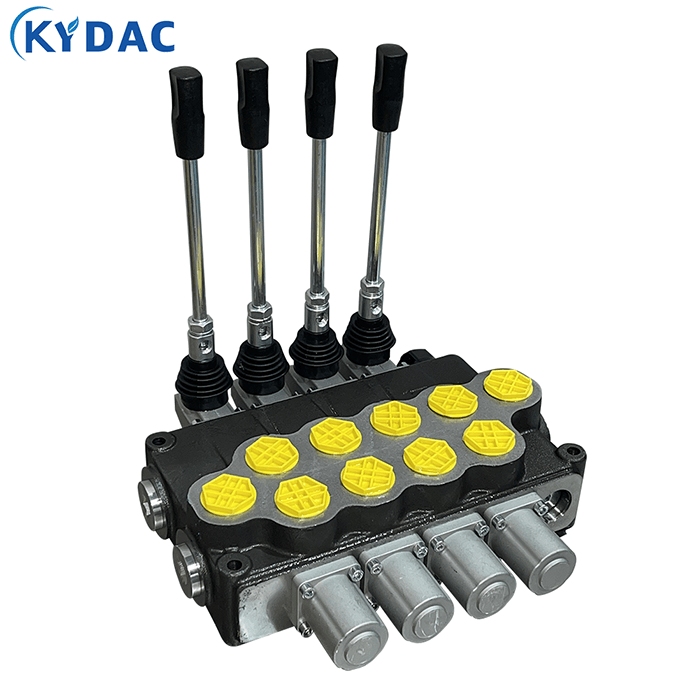

What is a Monoblock Hydraulic Valve?

A monoblock hydraulic valve has one solid cast-iron body. It holds every spool valve core and flow channel inside that single housing.

Structural Integrity and Compact Construction

Monoblock hydraulic valve designs give strong rigidity and save space. They work well in high-pressure jobs on mobile hydraulic systems.

• Zero Inter-section Leakage: The housing comes as one block. No internal section seals or tie-rods can wear out or leak from heat and stress.
• Compact Physical Footprint: The design cuts weight and size. It fits easily into tight heavy machinery hydraulics frames.
• High Working Pressure Capability: Single-body castings stand up to shocks and fatigue in daily heavy use.

Cost-Effectiveness for Standardized Equipment

High-volume builds with fixed setups gain real value from a monoblock hydraulic valve. It brings both lower costs and solid performance.

• Lower Manufacturing Costs: Fewer parts and simpler machining drop the price for OEMs.
• Streamlined Maintenance: Fewer seal changes cut routine work over the machine life.
• KYDAC Product Excellence: As a trusted directional valve supplier, our standard series—such as the KYDAC BDL-40, DCV100, and P120 monoblock series—uses high-tensile cast bodies, precision-ground spool valve cores, and integrated relief valves. These parts give long service life and steady flow control.

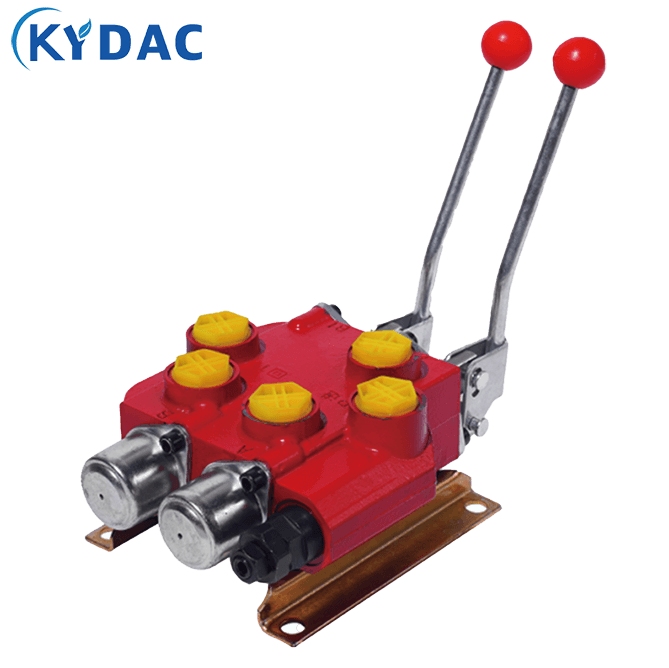

What is a Sectional Hydraulic Valve?

A sectional hydraulic valve consists of individual valve segments assembled together with heavy-duty tie-rods, flanked by inlet and outlet plates to form modular hydraulic valve banks.

Modular Expandability and Circuit Customization

Sectional hydraulic valve units excel in applications requiring flexible circuit configuration and multi-function expansion in complex hydraulic system design.

• Flexible Circuit Expansion: Engineers can add or remove individual working sections to adjust circuit counts as machine attachment options change.
• Customized Feature Integration: Individual valve slices can integrate distinct secondary valves, such as port relief valves, anti-cavitation valves, or pilot-operated check valves.
• Mixed Flow Control: Different spool valve types and flow capacities can be combined within the same valve stack to match varying actuator sizes.

Simplified Maintenance and Section-Level Servicing

The segmented architecture of modular hydraulic valves simplifies field repairs and reduces overall downtime for heavy equipment operators.

• Individual Component Replacement: If a specific spool valve bore or port sustains wear or contamination damage, only that single section needs replacement rather than the entire valve assembly.
• Lower Total Downtime: Field technicians can swap damaged sections quickly without disturbing the entire mounting infrastructure.
• KYDAC Modular Series: Advanced series such as theKYDAC ZDL-20 and SD Series offer flexible modular assembly, enabling any directional valve supplier or system integrator to deliver tailored control setups for complex multi-actuator systems.

Key Comparison Factors for System Engineers

Evaluating key technical metrics helps engineering teams select the optimal valve technology for their operational and budgetary needs when analyzing monoblock vs sectional directional valve setups.

Comprehensive Performance and Cost Trade-offs

The following comparison highlights the core distinctions between monoblock and sectional configurations to guide hydraulic system supplier selection.

• Cost vs Flexibility: A monoblock hydraulic valve prioritizes cost savings and compactness, whereas a sectional hydraulic valve offers superior operational versatility and field serviceability.
• Pressure Rating Integrity: Monoblock units eliminate section-gap leaks under severe vibration, while sectional units require precise tie-rod torque management.

Application Scenarios in Heavy Machinery

Matching valve architecture to specific mobile hydraulic systems demands improves machine responsiveness, energy efficiency, and overall reliability.

Monoblock Valve Applications in Compact Equipment

Monoblock valves excel in standardized, cost-sensitive machinery operating under harsh, space-constrained conditions where a robust hydraulic directional control valve is needed.

• Agricultural Tractors and Implements: KYDAC BDL-40 monoblock valves handle loader and 3-point hitch hydraulic circuits, providing precise hydraulic circuit design control while eliminating oil leaks in dusty field conditions.
• Material Handling Forklifts: The compact KYDAC P120 hydraulic directional control valve controls mast tilt and lift functions efficiently, fitting tightly into cramped chassis compartments.
• Mini Excavators & Skid Steer Loaders: KYDAC DCV100 series valves manage primary boom and bucket movements with consistent metering and low pressure drop.

Sectional Valve Applications in Complex Heavy Equipment

Sectional directional control valves are preferred for multi-functional heavy machinery hydraulics requiring independent control over numerous specialized actuators.

• Mobile Truck Cranes & Aerial Work Platforms: KYDAC SD Series sectional modular hydraulic valves allow precise, proportional control over outriggers, booms, and winches while integrating individual port safety valves.
• Forestry & Mining Equipment: The modular KYDAC ZDL-20 valve bank enables operators to configure custom grapple, steering, and cutting circuits on a single valve assembly.
• Municipal Refuse Trucks: Sectional construction allows easy maintenance when high-frequency packer and tailgate cycles wear out specific spool valve functions.

Why Choose KYDAC as Your Hydraulic System Supplier?

KYDAC is more than a directional valve supplier; we are a professional hydraulic system supplier and solutions provider. Our production base covers over 40,000 square meters and is equipped with advanced CNC machinery imported from Germany and Japan.

As an IATF 16949 and ISO 9001 certified hydraulic valve manufacturer, we offer:

• Customized OEM Services: We design and manufacture components perfectly integrated into your unique hydraulic system design.
• Global Supply Chain: Our optimized network ensures fast delivery of premium mobile hydraulic system components to over 50 countries, including the US, Russia, and the Middle East.
• Uncompromising Quality: Every valve, from the compact SVV06 to the massive DCV140 hydraulic directional control valve, undergoes rigorous validation simulating extreme operating conditions.

Upgrade your equipment’s “hydraulic heart” today. Whether you need a rugged monoblock hydraulic valve for a new tractor implement or a sophisticated sectional hydraulic valve stack for a mining flagship, KYDAC, as a world-class hydraulic valve manufacturer, has the expertise to deliver.

Contact us today to optimize your next hydraulic circuit design project!

FAQ

Q: Can a monoblock hydraulic valve be expanded if additional machine functions are needed?

A: No, monoblock valves have a fixed number of spools cast into a single housing. If your heavy machinery hydraulics system requires additional circuits in the future, a sectional hydraulic valve or an external diverter valve must be used.

Q: What is the main cause of leakage in sectional directional control valves?

A: Leaks between sections in sectional modular hydraulic valves often come from damaged O-ring seals. Uneven tie-rod torque or thermal expansion can also cause body deflection at high pressures.

Q: How do I determine the correct spool valve flow rating for my hydraulic system?

A: Check the top flow rate from your main hydraulic pump. Choose a spool valve rating that meets or exceeds it slightly to limit backpressure and heat in your hydraulic system design.

Q: Are KYDAC directional control valves suitable for high-pressure mobile hydraulic applications?

A: Yes, as a leading hydraulic valve manufacturer, KYDAC provides monoblock and sectional directional valves manufactured with high-strength cast iron and precision-ground alloy steel spools, rated for operating pressures up to 31.5 MPa (315 bar) in demanding mobile hydraulic systems.
