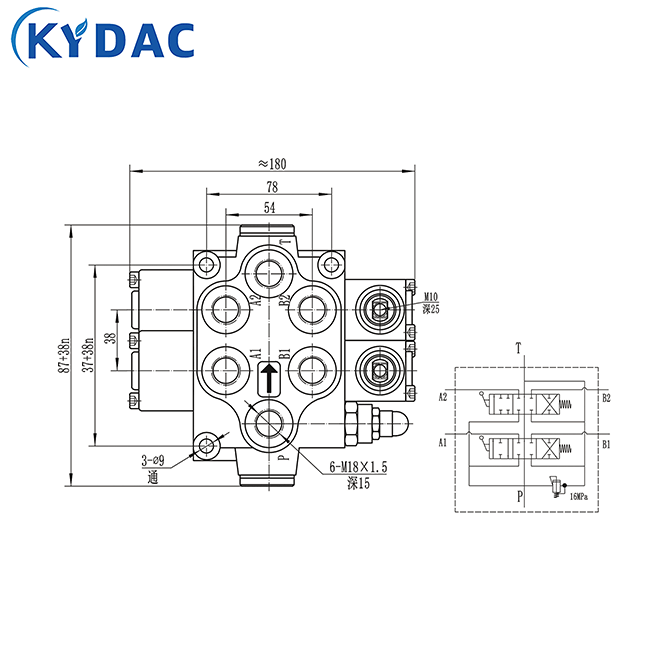

The ZDL-20 Multi-Way Directional Valve is a high-performance monoblock hydraulic directional control valve designed for controlling the direction, flow, and operation of hydraulic cylinders and hydraulic motors. Featuring a compact structure, high flow capacity, stable operation, and flexible spool configurations, the ZDL-20 valve is widely used in agricultural machinery, construction equipment, forklifts, cranes, sanitation vehicles, forestry machinery, and various mobile hydraulic systems.

Designed for medium and high-pressure hydraulic applications, the ZDL-20 provides reliable performance, low pressure loss, and excellent durability under demanding working conditions.

Working Principle

The ZDL-20 valve controls hydraulic oil flow through spool displacement.

Neutral Position

• Hydraulic oil circulates through the internal gallery or returns to the tank.
• Hydraulic actuators remain stationary.

Operating Position

• The operator actuates the control lever or pilot mechanism.
• The spool shifts and directs oil to work port A or B.
• Hydraulic cylinders or motors perform extension, retraction, lifting, lowering, or rotational movement.

Pressure Protection

• The built-in relief valve limits maximum system pressure.
• Optional overload valves provide additional protection for individual circuits.

Product Features

• Monoblock integrated valve body design
• High-flow hydraulic directional control valve
• Compact and lightweight construction
• Parallel circuit hydraulic system design
• Available with 1–8 spool sections
• Multiple spool function options
• Optional built-in main relief valve
• Optional load check valve and anti-shock valve
• Smooth spool movement and precise control
• Low pressure drop and high efficiency
• Excellent sealing performance
• Easy installation and maintenance
• Long service life and reliable operation
