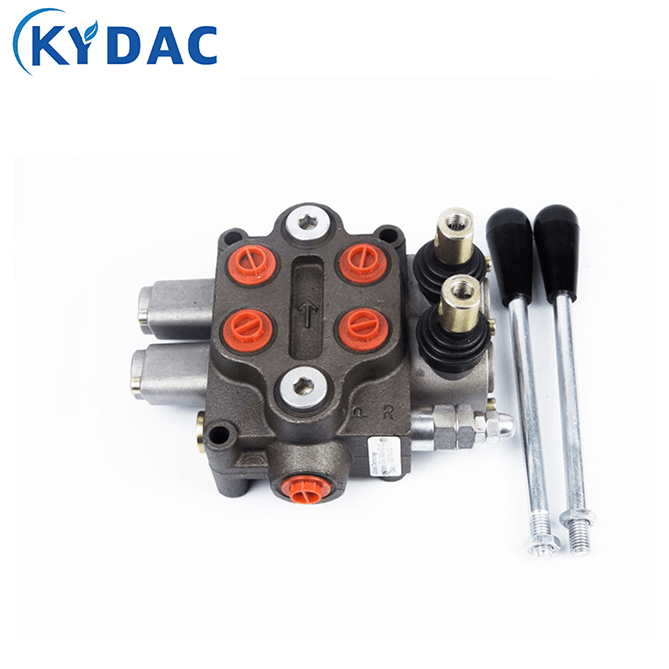

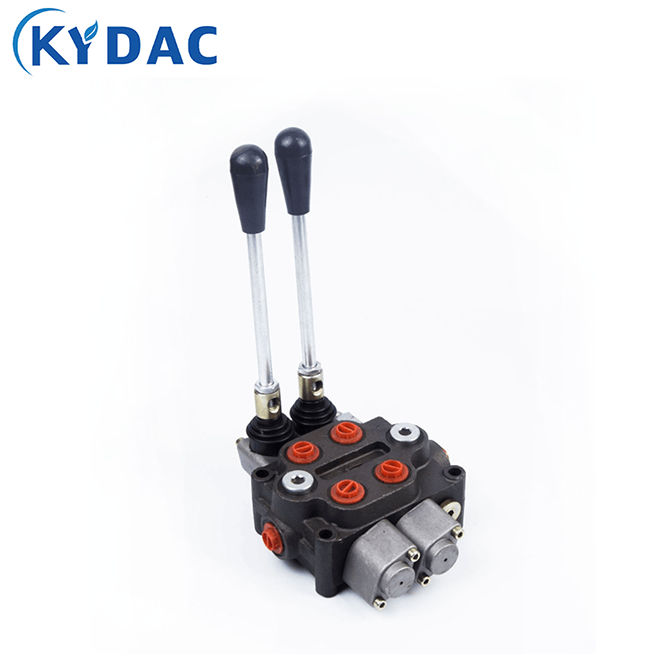

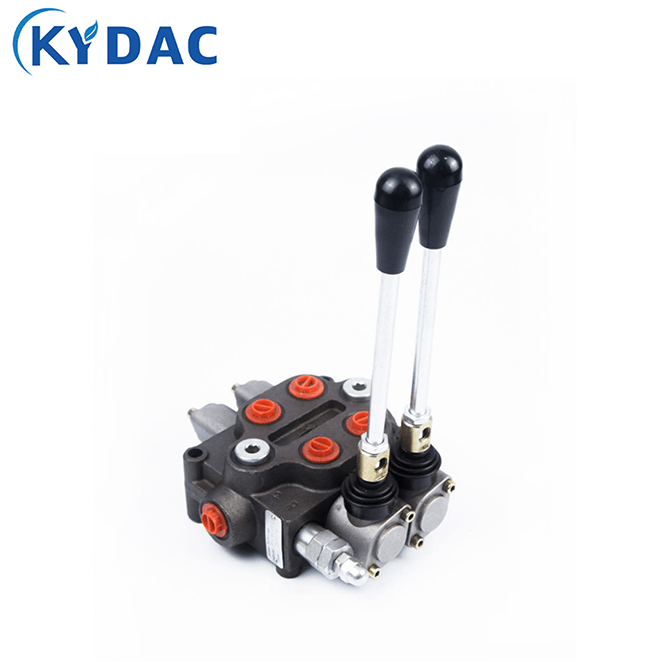

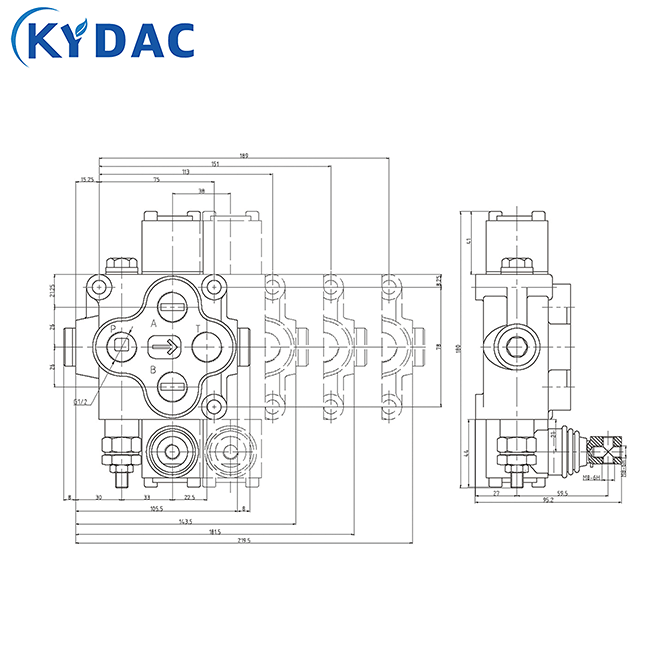

The ZDL-102 Multi-Way Directional Valve is a sectional hydraulic directional control valve designed for controlling the direction, flow, and pressure of hydraulic cylinders and motors in mobile and industrial hydraulic systems. Featuring a modular sectional structure, high flow capacity, and reliable performance, the ZDL-102 valve is widely used in construction machinery, agricultural equipment, forklifts, cranes, forestry machinery, and various hydraulic power systems.

The valve can be configured with multiple working sections and various spool functions, allowing precise and flexible control of multiple hydraulic actuators from a single valve assembly.

Working Principle

The ZDL-102 valve controls hydraulic flow through spool movement.

Neutral Position

• Hydraulic oil passes through the valve gallery or returns to the tank.
• Hydraulic cylinders and motors remain stationary.

Operating Position

• Moving the control lever shifts the spool.
• Pressurized oil is directed to the selected work port (A or B).
• The hydraulic actuator performs extension, retraction, lifting, lowering, or rotational movement.

Return to Neutral

• The spool returns to the center position through spring force or detent mechanism.
• Hydraulic flow is blocked or unloaded according to the spool design.
