How to Size Hydraulic Multi-Way Valves: Flow Rate, ΔP & Spools

Selecting the correct hydraulic control valve is critical for operational efficiency, fuel economy, and precise motion control in mobile and industrial machinery. Proper hydraulic valve sizing ensures optimal power distribution across complex fluid circuits. As a professional hydraulic valve manufacturer, multi-way valve supplier, and directional control valve manufacturer, KYDAC assists equipment designers and engineers in engineering high-reliability hydraulic system design solutions across demanding industries.

Essential Principles of Hydraulic Valve Sizing

Proper hydraulic valve sizing prevents common fluid system issues such as excessive heat generation, sluggish actuation, and severe energy loss. Master the core parameters of flow rate, pressure drop, and spool selection to build high-performance systems.

Determining System Flow Rate (GPM / L/min)

Accurately calculating required pump output and cylinder/motor consumption forms the baseline for valve port sizing and overall flow rate management.

• Peak Flow Calculation: Calculate the maximum flow rate requirement by combining actuator speeds: Q = V ×A, where Q is flow rate (L/min or GPM), V is piston speed, and A is effective surface area.
• Simultaneous Operation Factors: Account for fluid demand during concurrent multi-actuator operation in complex hydraulic system design to prevent flow starvation.
• Margin for Thermal Expansion: Allow a 10% to 15% safety factor above nominal pump output to handle dynamic transient pressure surges safely.

Evaluating Allowable Pressure Drop across Valve Ports

Excessive pressure drop (ΔP) across the valve spool generates localized fluid heat and reduces net available mechanical working power.

• Pressure Drop Formula: Determine pressure loss using ΔP = SG ×(Q / Cv)², where SG represents specific gravity of hydraulic oil and Cv represents valve flow coefficient.
• System Heat Load Management: High pressure drop converts usable energy into thermal waste, requiring larger hydraulic air oil coolers and increasing operating costs.
• Target Thresholds: Aim for a nominal pressure drop below 3 to 5 bar (43.5 to 72.5 PSI) per flow path during continuous duty operations.

Key Factors in Spool Selection and Hydraulic Circuit Design

Selecting the optimal internal spool geometry directly influences control sensitivity, actuator hold capability, and system safety. Correct spool selection guarantees seamless interaction between the hydraulic control valve and system actuators.

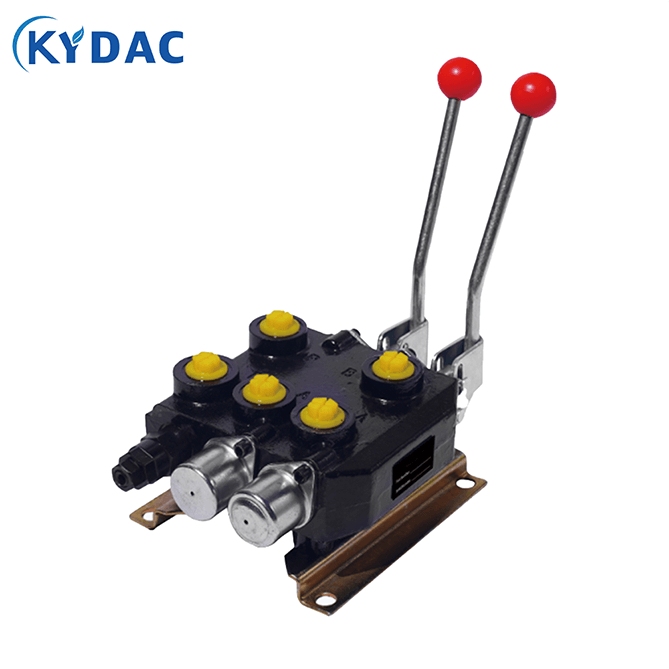

Matching Spool Center Functions with Actuator Demands

Proper spool selection defines how hydraulic fluid behaves when the valve handle or solenoid is in its neutral position.

• Open Center (Type A/G): Connects pump output directly to the tank in neutral, reducing continuous idle load in fixed-displacement pump circuits using a multi-way directional valve.
• Closed Center (Type D): Blocks pressure supply in neutral, ideal for variable-displacement pump systems or multi-valve parallel setups.
• Tandem / Float Center (Type E/H): Allows hydraulic cylinders or motors to freewheel or float while holding system supply pressure stable.

Balancing Port Sizes and Internal Flow Losses

Internal porting dimensions and channel geometries must align with working velocities to avoid turbulent flow conditions in your hydraulic system design.

• Port Velocity Limits: Keep fluid velocity inside valve work ports under 4.5 to 6 m/s to reduce flow turbulence and internal pressure drop erosion.
• Threading and Flange Connections: Match BSPP, SAE, or METRIC thread dimensions to system hose sizes to avoid restrictive flow bottlenecks.
• Interchangeability Standards: Ensure valve port patterns follow standard international mounting dimensions for rapid field maintenance.

Application-Driven Multi-Way Valve Selection with KYDAC Solutions

As a specialized multi-way valve supplier, directional control valve manufacturer, and comprehensive hydraulic system supplier, KYDAC manufactures robust hydraulic multi-way valve families designed for complex field conditions.

Monoblock and Sectional Multi-Way Valves for Heavy Machinery

KYDAC offers monoblock and sectional hydraulic multi-way valve lines built to withstand high continuous pressures in demanding environments.

• KYDAC ZDL & DCV Series: Designed for heavy excavators, agricultural loaders, and sanitation trucks, these multi-way directional valve products deliver flow rate capacities up to 140 L/min and working pressures up to 31.5 MPa.
• KYDAC P Series Monoblock Valves: Highly compact structures designed for forklifts, mini-excavators, and aerial work platforms, offering precise metering for delicate position control.
• Integrated Safety Features: Equipped with built-in adjustable main relief valves and load-check valves to prevent cylinder drift and operational pressure overloads.

Solenoid and Electro-Hydraulic Directional Control Solutions

Modern automated equipment demands electro-hydraulic integration for seamless remote pilot operation and automated safety functions.

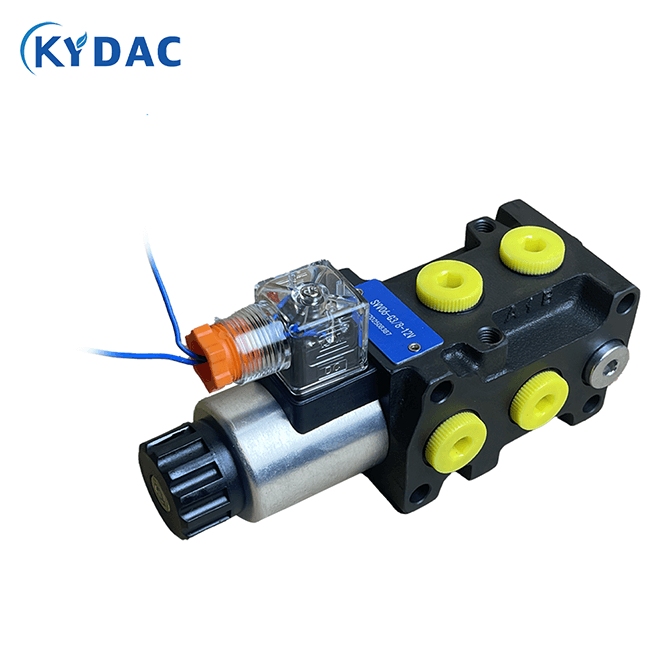

• KYDAC SD & SVV06 Series Solenoid Valves: Engineered with fast response times and low electric coil power consumption, ideal for agricultural harvesters and municipal machinery.
• High-Pressure Durability: Cast iron body construction with hardened spools provides smooth shifting performance and extremely low internal leakage.
• Versatile Mobile Hydraulic Solutions: Compatible with remote wireless control interfaces, enabling flexible integration for custom mobile hydraulic solutions.
