Master Hydraulic Control: A Deep Dive into DCV Multi-Way Valves

In the demanding world of heavy-duty engineering, the ability to orchestrate complex movements with precision and power is what defines operational success. KYDAC, a leading manufacturer of premium hydraulic components, understands that the “nerve center” of any robust system is the DCV series hydraulic valve, designed to unleash the full potential of construction and industrial machinery.

How Multi-Way Directional Control Valves Power Heavy Machinery

A hydraulic directional control valve is essential for managing the flow and direction of oil to various actuators, ensuring that every boom lift or bucket curl happens exactly when and how it should.

Directional Control Valve Function and Principles

Knowing how a directional control valve works forms the base for better hydraulic setups.

• Fluid Routing: Internal spools open or close routes inside the valve. This sends high-pressure oil to chosen cylinder ports or motors.
• Centralized Command: A multi-way directional control valve brings several functions together in one body. One operator can then handle multiple actions at the same time.
• Pressure Regulation: Valves from KYDAC manage pressure spikes inside the system. They keep things safe when loads reach high levels.

Monoblock vs. Sectional Directional Control Valves

The build of a hydraulic multi-way directional valve affects how well it fits different machines and service needs.

• Monoblock Design: These valves use one strong cast iron body. The single piece cuts leak paths and gives a solid, compact shape for tight spaces.
• Sectional Design: A sectional directional control valve lets you stack separate sections. You can add as many as twelve to match complex system demands.
• Maintenance Efficiency: Sections on these valves can be checked or swapped one at a time. This lowers the time a machine sits idle during repairs.

The KYDAC DCV Series: Precision Engineering Across Every Model

Our DCV series is built for durability, featuring high-strength cast iron bodies that withstand ambient temperatures from -40℃ to 80℃ and diverse fluid viscosities.

Ultra-High Flow Solutions: DCV140 and DCV100 Hydraulic Valves

For the most massive equipment on the planet, the DCV140 hydraulic valve and DCV100 hydraulic valve provide the necessary “surge” of power.

• DCV140 Capability: Delivers an industry-leading flow rate of 140 L/min at 350 bar pressure, making it the “core brain” for building the largest mining and drilling platforms.
• DCV100 Versatility: This heavy-duty hydraulic control valve supports up to 12 work sections and is the benchmark for 1000-ton all-terrain cranes that require synchronized movement of booms and outriggers.
• Unwavering Stability: Both models feature precision-machined mating surfaces to ensure absolute sealing integrity under sustained high-pressure shocks.

Versatile Performance Platforms: DCV60 and DCV45 Hydraulic Valves

Medium-to-large machinery requires a balance of speed and force, which is perfectly satisfied by the DCV60 hydraulic valve and DCV45 hydraulic valve.

• DCV60 Sectional Flex: With a 60 L/min flow and 350 bar capacity, this multi-section hydraulic valve is ideal for large excavators needing coordinated control of boom, arm, and swing functions.
• DCV45 Monoblock Strength: Offering 45 L/min in a robust monoblock body, this valve is engineered to suppress high-pressure internal leakage during continuous waste compaction or heavy-duty breaking.
• System Scalability: These models allow for flexible configuration of 1 to 12 sections (sectional) or 1 to 8 sections (monoblock), enabling “tailor-made” hydraulic circuits.

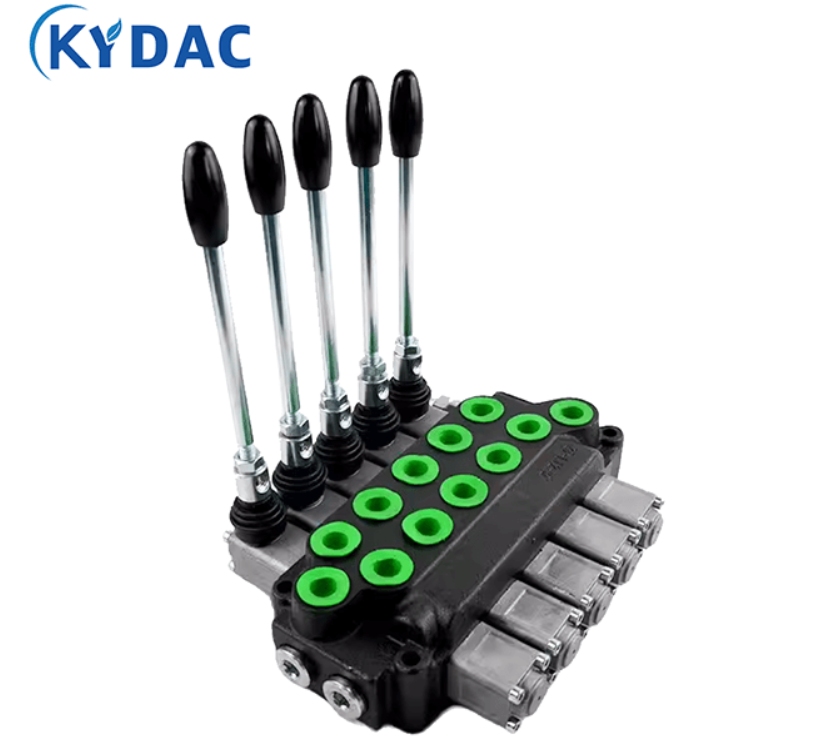

Compact and Precise Control: DCV40 and DCV20 Hydraulic Valves

When space is at a premium, but pressure demands remain high, the DCV40 hydraulic valve and DCV20 hydraulic valve deliver.

• DCV40 Precision: A professional-grade 40 L/min monoblock valve that integrates up to 8 sections, serving as a precise “hydraulic conductor” for rotary drilling rigs and special-purpose work platforms.
• DCV20 Compactness: Designed for ultra-high-pressure but lower-flow applications (20 L/min), this unit is the standard for small excavators and aerial work platform outrigger leveling.
• Resilience: Despite their small size, these valves are optimized for 350 bar systems, featuring reinforced internal flow paths to handle peak load preparation.

Practical Applications: Solving Industrial Challenges

The true value of a hydraulic valve for construction machinery is realized in its ability to solve operational bottlenecks and enhance safety on-site.

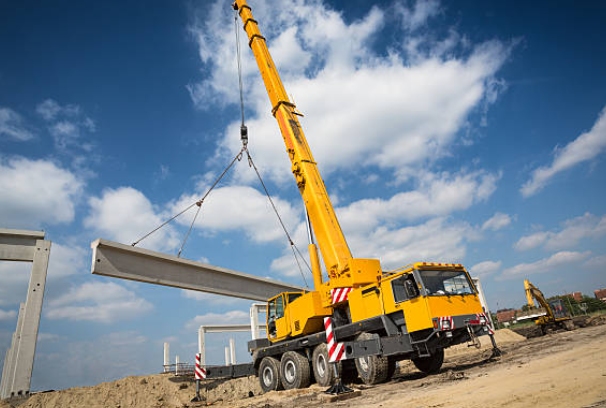

Construction Machinery and Heavy-Duty Lifting

Multi-way valves are the critical link between the operator’s command and the machine’s physical output.

• Excavator Compound Actions: KYDAC valves solve the problem of motion lag, allowing for smooth, simultaneous digging and leveling actions that increase productivity.
• Crane Precision: In all-terrain cranes, our valves coordinate over 20 complex movements, ensuring fine positioning and safety during high-altitude lifting.
• Outrigger Leveling: The DCV20 provides the micro-adjustments needed for leveling equipment on uneven terrain, preventing tip-over accidents.

Drilling, Mining, and Sanitation Solutions

In harsh environments, reliability is non-negotiable.

• Tunnel Boring Machines (TBM): Our high-flow DCV140 serves as the “heart” of the TBM, controlling the cutterhead drive and thrust systems required for massive tunnel excavation.
• Geological Exploration: The DCV40 handles the high-intensity continuous drilling operations of deep-hole rigs, managing power head rotation and chuck clamping efficiently.
• Waste Compaction: In garbage compactor trucks, the DCV45 and DCV40 coordinate high-pressure compaction cycles and rear-door sealing, optimizing the waste processing workflow.

Why KYDAC is Your Trusted Hydraulic Partner

Rooted in decades of manufacturing expertise, KYDAC (a subsidiary of Hebei Keyuan Technology) is a global supplier of premium fluid power solutions.

Advanced Manufacturing and Quality Assurance

Our commitment to quality is backed by advanced facilities and rigorous testing protocols.

• Precision Manufacturing: We utilize over 100 sets of processing equipment imported from Germany and Japan to ensure every valve meets international standards.
• Rigorous Testing: Every DCV series product undergoes multi-stage performance testing, including high-pressure endurance and simulated operating condition validation.
• Global Reach: KYDAC products are exported to over 50 countries, including the USA, Italy, and the UAE, serving machinery manufacturers with 24 years of R&D experience.

Conclusion

The DCV series hydraulic valve is more than just a component; it is a strategic investment in machine longevity and operational efficiency. From the compact DCV20 to the industry-leading DCV140, KYDAC provides the power and control needed to master the most challenging engineering environments.

Ready to upgrade your hydraulic system’s performance? Contact KYDAC today to receive a customized technical proposal and explore how our DCV series can redefine your equipment’s capabilities!

FAQ

Q: What is the main difference between monoblock and sectional multi-way valves?

A: Monoblock valves have a one-piece body. This cuts down on places where leaks can happen. Sectional valves are built in separate modules. You can add or swap sections to fit different needs and simplify repairs.

Q: Can KYDAC DCV series valves operate in extreme temperatures?

A: Yes. These valves are built for use in many climates. They keep working in ambient temperatures from -40°C to +80°C.

Q: What is the maximum pressure rating for the DCV series?

A: The standard maximum working pressure for models like the DCV140, DCV100, and DCV60 is 350 bar (approx. 5076 psi).

Q: Are KYDAC valves interchangeable with other major brands?

A: Yes. Many of our directional valves use standard interfaces. They can replace units from YUKEN, REXROTH, and VICKERS without changes.

Q: How many functions can a single multi-way valve control?

A: It depends on the model. Our sectional valves can hold up to 12 work sections. One unit can then manage 12 separate actuators from a single point.
