How 2-Way Solenoid Valves Work: Hydraulic Engineer Breakdown

In the complex architecture of modern heavy machinery, precision is the difference between operational success and catastrophic failure. At KYDAC, we understand that every component in a hydraulic circuit acts as a vital “nerve” in the machine’s body. Among these, the 12V 2-Way hydraulic solenoid valve stands as the ultimate gatekeeper, providing the essential start-stop logic required for automated control.

Core Fundamentals of 2-Way Solenoid Valves

A 2-way solenoid valve is the simplest yet most critical form of directional control, featuring one inlet and one outlet. These valves are designed to either permit or block fluid flow based on an electrical command, typically integrated into a system’s PLC or manual switch.

Understanding the 2-Port Configuration

The term “2-way” refers to the ports that let fluid move inside the valve body.

• Uni-directional Logic: Most 2-way valves control flow in one direction. Pressure stays on the inlet side until the valve receives a signal.
• Normally Closed (NC) vs. Normally Open (NO): These valves stay blocked or open by default when power is cut. The choice depends on what the setup requires.

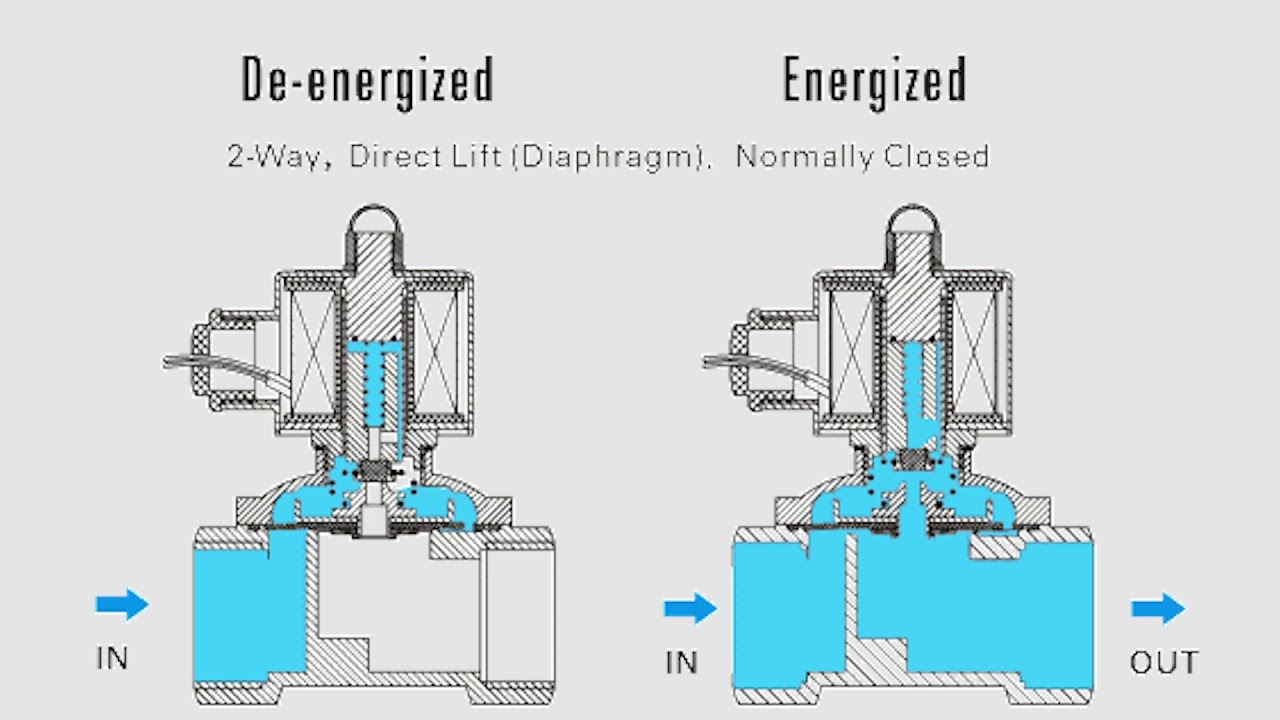

Step-by-Step Working Mechanism

To see why KYDAC components hold up well, it helps to follow what happens inside when a 12V signal reaches the solenoid coil. The shift happens through electromagnetism working against spring force.

The De-energized State: Sealing the Flow

With no power applied, the valve stays closed through mechanical force alone.

• Spring Tension: In a Normally Closed valve, a heavy-duty internal spring pushes the plunger against the valve seat.
• Fluid Isolation: The contact forms a firm seal between inlet and outlet. This stops hydraulic oil from moving, even when system pressure climbs high.

The Energized State: The 12V Magnetic Lift

When an operator or controller applies the 12V signal to the coil, the valve responds right away.

• Electromagnetic Induction: Current in the coil builds a magnetic field. The field then lifts the plunger against the spring tension.
• Plunger Retraction: The plunger rises into the coil center. This lifts the seal clear of the valve seat.
• Orifice Opening: The path opens, and hydraulic fluid flows from inlet to outlet. The machine function begins at once.

KYDAC Engineering Solutions

KYDAC specializes in manufacturing high-performance directional valves that meet the rigorous standards of global engineering. Our products are engineered for fast response times and extended service life in demanding environments.

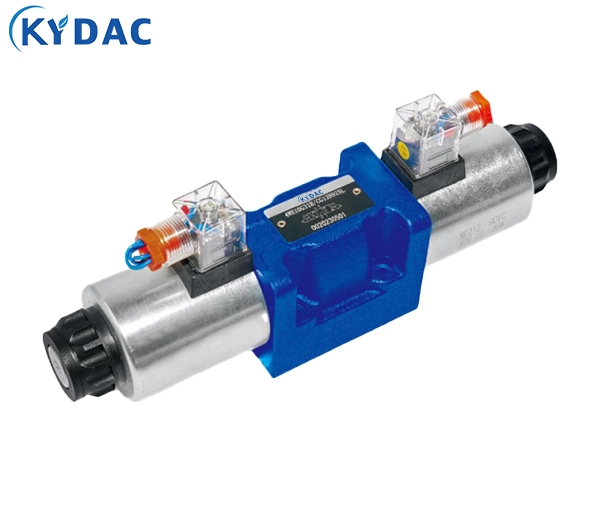

The 4WE and EMC Series: Precision Control

The KYDAC 4WE series, such as the 4WE6 and 4WE10, along with the EMC series, stands out for central electrical control of multiple actuators.

• High-Pressure Capability: These models handle working pressures up to 35 MPa. That makes them a good fit for heavy-duty construction machinery.
• Versatile Voltage: They are built mainly for 12V and 24V DC systems. They also work across many electrical setups and fit into vehicle power grids without trouble.
• Compact Integration: The EMC series fits several 2-way units into one monoblock. This cuts installation space by up to 50%.

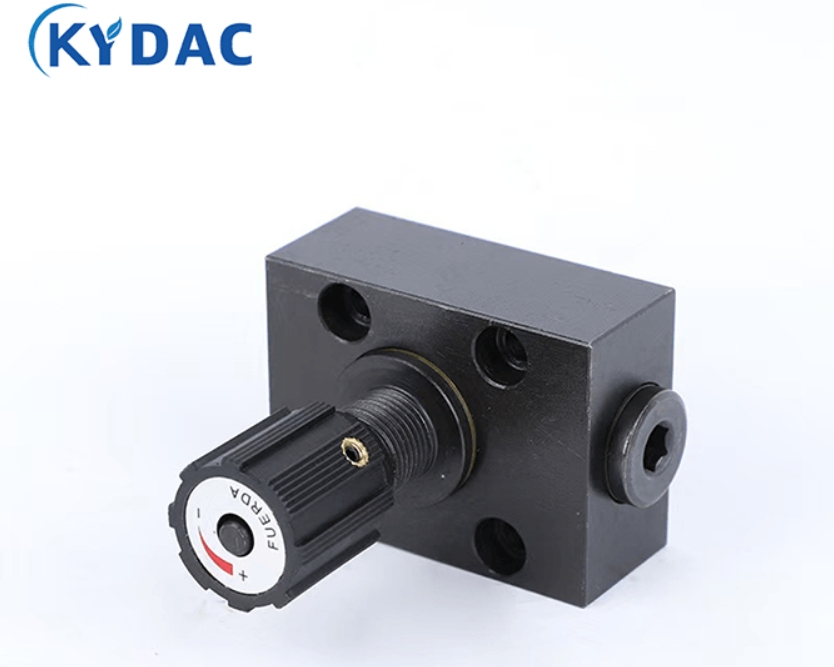

DRVP and DVP Models: Rapid Response Design

When a system needs quick fluid shutoff or flow restriction, the DRVP6-40 and DVP6-40 models deliver solid reliability.

• Standardized Interfaces: These valves use standard mounting sizes. They can replace units from brands like Rexroth or Vickers without extra work.
• Durability: They come in high-strength cast iron or stainless steel. The material holds up well against wear from fast fluid flow.

Industrial Application Scenarios

Theory only matters when applied to the field. KYDAC’s 2-way solenoid valves are actively solving operational hurdles across the globe in heavy industry.

Agricultural Machinery: Load Holding and Safety

In modern tractors and harvesters, safety is paramount. Our valves are used as emergency shut-off units for rear remote hydraulics.

• The Problem: Traditional manual valves can lead to accidental “leak-down” of heavy implements like plows or seeders during transport.
• The Solution: By installing a KYDAC 4WE6 Normally Closed valve, the hydraulic line is locked tight by the internal spring, only opening when the operator specifically activates the 12V control, preventing accidental equipment drops.

Construction Equipment: Remote Auxiliary Control

For excavators and loaders, the ability to control attachments remotely is a standard requirement.

• The Problem: Routing complex hydraulic lines to a thumb or grapple attachment often results in massive pressure losses and slow response times.
• The Solution: Using an EMC series valve bank located near the attachment point allows for precise, automated control via a simple electrical wire, reducing plumbing complexity and increasing the speed of the attachment’s cycle.

Why Professional Engineers Specify KYDAC

With over 24 years of research and production experience, KYDAC has established itself as a premier OE manufacturer for the global market. Our facility in Hebei spans 40,000 square meters and houses over 100 sets of advanced processing equipment imported from Germany and Japan.

Uncompromising Quality and Global Reach

We don’t just build parts; we build reliability.

• Strict Certification: Our processes are ISO/TS16949 certified, ensuring that every valve meets international automotive and industrial standards.
• Professional Support: Our team of 30+ hydraulic engineers is available to help you customize port configurations or flow characteristics for specialized OEM orders.

Upgrade Your System with KYDAC Precision

Ready to enhance the reliability of your hydraulic circuits? Whether you need a single 12V 2-Way hydraulic solenoid valve for an urgent repair or a custom-designed EMC series valve group for a new machinery line, KYDAC is your trusted partner.

[Contact KYDAC Sales Engineers Today for a Professional Quote and Technical Consultation]

FAQ

Q: Can a 12V solenoid valve be used in a 24V system?

A: No. Putting a 12V coil into a 24V system makes the coil overheat. It fails early as a result. Match the coil voltage to your machine’s electrical output. KYDAC offers interchangeable coils for both 12V and 24V DC.

Q: What is the primary cause of solenoid valve failure in heavy machinery?

A: Fluid contamination causes the most issues. Small particles lodge between the plunger and the seat. This stops a complete seal from forming. KYDAC valves come with high contamination tolerance. We still recommend high-quality filtration systems, though.

Q: What is the difference between a direct-acting and a pilot-operated 2-way valve?

A: Direct-acting valves use the solenoid force to move the plunger directly. They suit lower flows best. Pilot-operated valves use the solenoid to open a small pilot hole. System pressure then moves a larger piston. This setup controls much higher flow rates.

Q: Are KYDAC solenoid valves interchangeable with other major brands?

A: Yes. Our 4WE and EMC series are designed to be 100% interchangeable with mainstream international brands like Rexroth, Vickers, and Yuken. They feature the same mounting patterns and performance specs.
