Master Hydraulic Precision: The Solenoid Valve Tech Guide

Hydraulic engineering involves big risks. The line between a reliable machine and a major expense can depend on just a few milliseconds of reaction speed and careful fluid direction. Directional control solenoid valves form the central part of hydraulic automation. At KYDAC, we see that for partners in global production and industry, these pieces go beyond simple components. They offer the assurance of smooth ongoing operations.

Understanding the Core Mechanism of Directional Control Solenoid Valves

Directional control solenoid valves act as the main link between electronic controls and hydraulic energy. An electromagnetic coil moves a spool inside them. This action sends pressurized oil to chosen ports. As a result, it supports detailed operations in cylinders and motors.

How Electromagnetic Force Translates to Fluid Precision

A solenoid valve works well when the magnetic pull balances with spring return parts. In demanding setups, a slight pause in spool movement can trigger “hydraulic shock.” That shock harms seals and tires out the whole system. KYDAC engineers aim to cut this delay. They do so with improved coil designs and coatings that reduce friction on the spool. Every electric input thus leads to a quick and even mechanical response.

Common Challenges in High-Pressure Directional Control

Engineers deal with three basic problems often: leaks within the valve, coil damage from nonstop work, and pressure losses over the valve structure. Places like underwater drilling or elevated building sites make these problems worse. A valve has to do more than simply open or close. It needs to keep a solid seal despite shifts in oil thickness and sharp temperature changes.

Technical Breakdown: KYDAC’s Directional Control Solenoid Valve Series

As a committed producer, KYDAC has created a range of products that tackle the tough demands of OEM setup and on-site changes. Our approaches rest on a base of common business energy and wise use of resources.

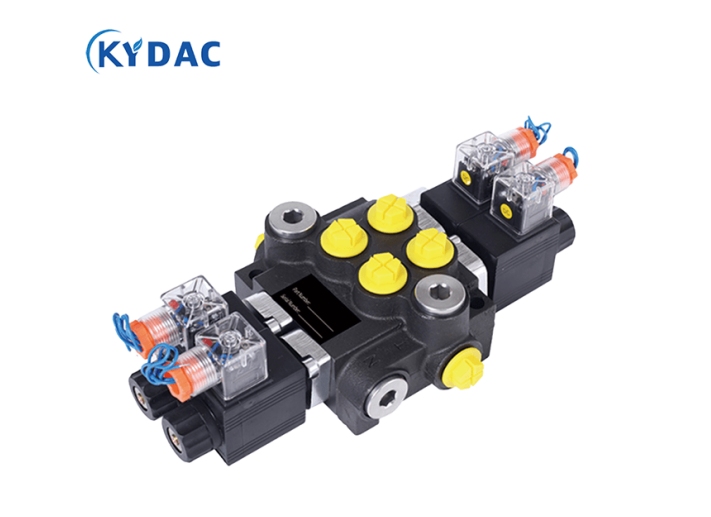

SD Valve Series: The Benchmark for Electromagnetic Reliability

The SD Valve Series shows KYDAC’s dedication to sturdy, independent operation. These valves, run by electromagnetics, handle frequent on-off cycles in tough spots.

• Core Feature: Reliable wet-type solenoids work while bathed in oil. This setup aids cooling and boosts the coil’s working lifespan.
• Technical Advantage: The SD Series manages strong pressure levels. It does this without slowing down its shift speed. That makes it a top pick for fixed factory equipment, where exact timing matters greatly.

SVV06 Valve Series: Multi-Way Versatility for Compact Systems

Mobile tools often face limited room. For those cases, the SVV06 Multi-Way Directional Valve brings a flexible and space-saving option.

• Design Philosophy: These valves combine several tasks in one block. They limit long pipe needs and cut the chances of leaks from outside connections.
• Specific Benefit: The SVV06 series allows easy tailoring. Engineers can add stacked parts according to actuator needs. This suits focused small loaders or vehicles for city upkeep.

Practical Engineering Solutions: Solving Critical Flow and Control Challenges

Abstract explanations seldom aid workers on the shop floor. At KYDAC, we stress how our valves address particular work snags.

Enhancing Safety in Lifting and Agricultural Equipment

Crop gatherers and raise platforms demand top safety and a firm position hold.

• The Application: Combining SD series directional valves with KYDAC pressure and flow valves for even hydraulic balance.
• The Result: These valves block unplanned cylinder drift. When power fails, the carefully made spring returns in our solenoid valves, guiding the system to a secure neutral state. This safeguards both tools and people.

Optimizing Excavator Manifold Performance

Excavators demand coordinated action from the boom, arm, and bucket. This setup needs advanced flow division. Adding KYDAC P Series or ZDL Series multi-way valves helps makers gain accurate flow that ignores load variations.

• The Problem: Choppy motion from irregular pressure spread during multi-task use.
• The KYDAC Solution: Our ZDL-15 and ZDL-20 series offer fluid shifts and strong metering features. Thus, operators gain fine command of machine actions, even with substantial weights.

Maintenance and Selection Guide for Hydraulic Engineers

Choosing the proper valve means looking past basic port matches. It calls for a broad check of the system’s work rhythm and site conditions.

1. Duty Cycle Assessment: In nonstop factory shifts, favor KYDAC’s oil-dipped solenoids (SD Series) to avoid coil overheat.
2. Environmental Sealing: Outdoor or rinse-heavy areas require solenoid links with solid IP scores. KYDAC offers diverse OEM choices to fit certain site norms.
3. Flow vs. Pressure Drop: Review the pressure loss graphs each time. An undersized valve leads to extra warmth and power drain. Our P120 and P80 series suits larger flow volumes. They keep solid performance in broad setups.

Why Partner with KYDAC?

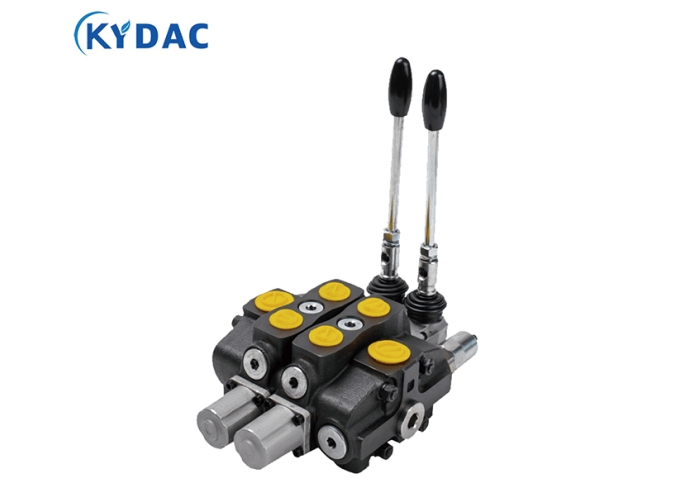

KYDAC goes beyond a basic provider. We act as an OEM/ODM teammate. We gain ground in the field through quality items and strong standing. Our main efforts target key progress in multi-way valves, motors, and gear pumps. If you build fresh robot parts or care for heavy crane groups, KYDAC supplies the fast-reaction fixes your setup requires.

Ready to upgrade your hydraulic system’s precision? Contact KYDAC Today for a Custom OEM Quote.

• Email: Maria@shangjiayeya.com
• WhatsApp: +86 15830130792

FAQ

Q: What is the primary cause of solenoid valve failure in high-cycle applications?

A: Most breakdowns stem from coil damage due to weak cooling or spool rubbing from dirty oil. KYDAC employs wet-pin solenoids to handle heat and durable stuff to fight rough wear.

Q: Can KYDAC directional valves be used with non-standard hydraulic fluids?

A: Made for regular mineral oils, we supply ODM help to adapt seal types (such as Viton) for flame-safe or thin fluids.

Q: What is the advantage of a monoblock valve vs. a sectional valve in mobile machinery?

A: Monoblock valves (like our ZTL series) save space and hold back leaks with fewer connections. Sectional valves (like the SVV06) give more room to expand roles down the line.

Q: How does the response time of a KYDAC solenoid valve compare to industry standards?

A: Our SD series is built for “Rapid Response.” It shifts in about 30-50 milliseconds, based on oil thickness and pressure levels. This plays a key role in auto assembly lines.
