Name: SVV06 Solenoid Sectional Diverter Control Valve
Model No: SVV06
Fit: Agriculture machines, construction machines, forest machines, etc.
Origin: China
Manufacturer: KYDAC
Material: Cast iron
Rated pressure: 25Mpa

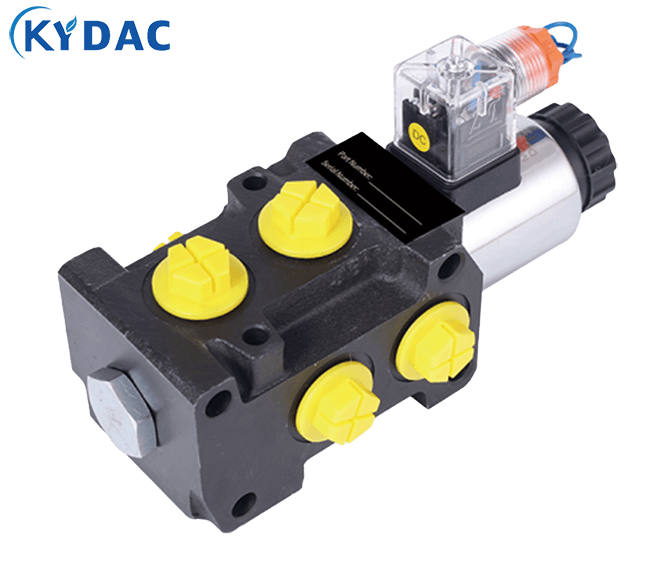

The SVV06 Multi-Way Directional Valve is a solenoid-operated hydraulic diverter valve (selector valve) designed to switch hydraulic flow between multiple actuators using a single directional control valve. Featuring a compact sectional design, the SVV06 allows one hydraulic control circuit to alternately operate two or more hydraulic functions, reducing system complexity and installation costs. It is widely used in loaders, tractors, drilling rigs, agricultural machinery, lifting equipment, and mobile hydraulic systems. Options | G3/8, G1/2, SAE, Metric Threads | and complexity. 6-way to 8-way or 10-way hydraulic circuits. s pressures up to 315 bar in demanding environments. auxiliary circuits Hydraulic Circuit ↔ Auxiliary Hydraulic Circuit
| Model | HSV6 | HSV9 |
| Max flow | 50L/min | 90L/min |
| Rated pressure | 25Mpa | 25Mpa |
| Oil temperature range | -20℃~80℃ | -20℃~80℃ |
