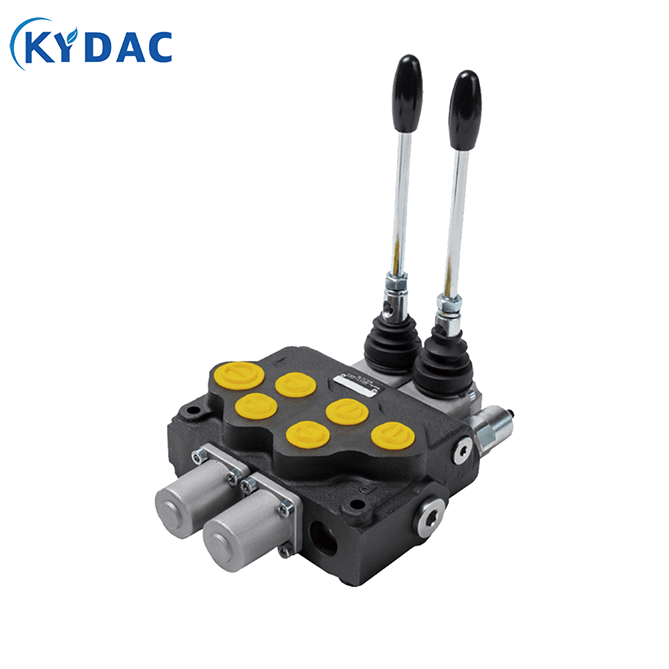

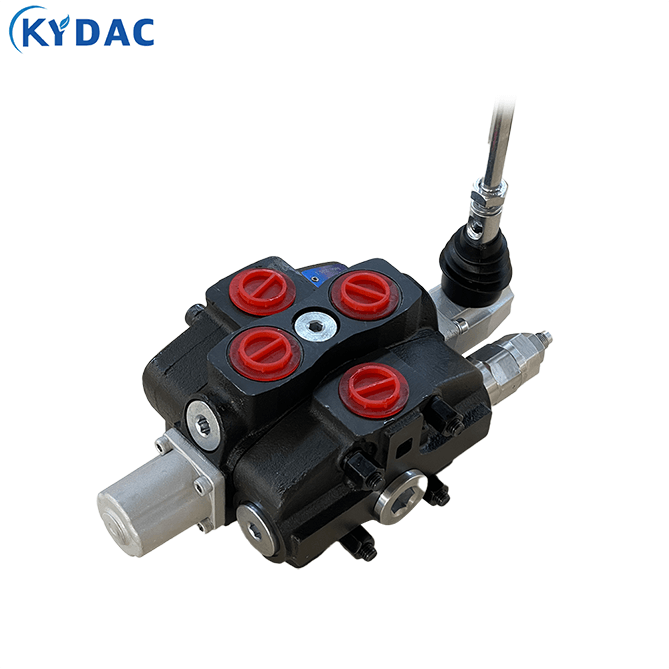

Name: SD Directional Control Valve
Model No: SD
Fit: Agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting and handing equipment, construction machinery, etc.
Origin: China
Manufacturer: KYDAC
Material: Cast iron
Max pressure: 31.5 Mpa
The SD Directional Control Valve is a high-performance sectional hydraulic directional control valve designed to control the direction, flow, and movement of hydraulic cylinders and motors in mobile and industrial hydraulic systems. Featuring a modular sectional structure, compact design, and reliable performance, the SD Series valve is widely used in construction machinery, agricultural equipment, forestry machines, lifting equipment, municipal vehicles, and material handling systems.
The SD Series offers excellent flow capacity, flexible spool configurations, and optional hydraulic, pneumatic, electric, or manual control methods, making it suitable for a wide range of hydraulic applications.
| Nominal pressure | 20 Mpa | |
| Max pressure(Mpa) | 31.5 Mpa | |
| Nominal flow rate | 45 L/min | |
| Max flow rate | 45 L/min | |
| Back pressure | ≤1 Mpa | |
| Hydraulic oil | Temperature range | -20~+80℃ |
| Viscosity range | 10~400 mm²/s | |
| Filtrating accuracy | ≤10μm | |
If you are interested in any product, please contact us. We will introduce our products to you in more detail
