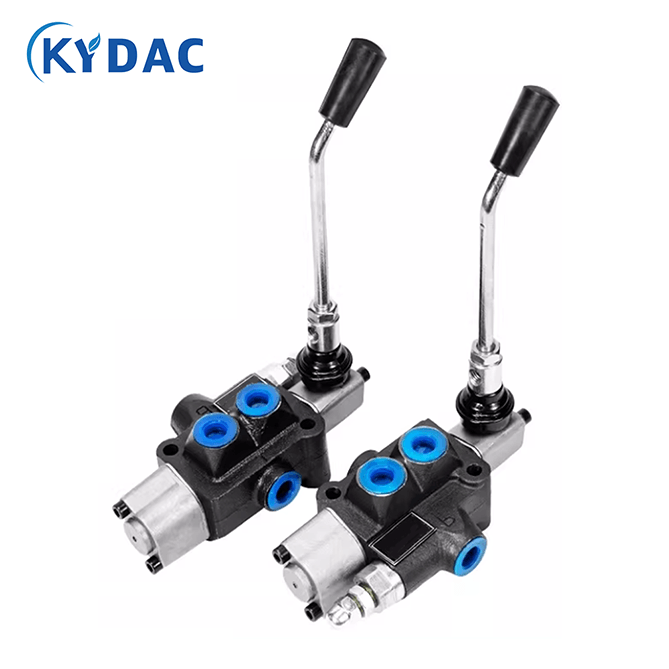

BDL-40 Multi Way Directional Valve

The BDL-40 Multi-Way Directional Valve is a medium-pressure monoblock hydraulic directional control valve designed to control the start, stop, direction change, and movement speed of hydraulic actuators in mobile and industrial hydraulic systems. With a rated flow of 40 L/min, compact structure, and modular spool configuration, the BDL-40 valve is widely used in forklifts, small loaders, agricultural machinery, sanitation vehicles, cranes, and material handling equipment. Medium | Mineral Hydraulic Oil |
| Oil Temperature Range | -20°C to +80°C |
| Viscosity Range | 10–400 mm²/s |
| Filtration Accuracy | ≤10 μm |
| Number of Spools | 1–7 Sections Optional |
| Material | High-Strength Cast Iron | ### Operating Position

• Moving the control lever shifts the spool.
• Hydraulic oil is directed to the selected work port.
• The hydraulic cylinder or motor performs the required movement.

Return Position

• When the lever is released, the spring return mechanism automatically returns the spool to neutral.
• Oil flow stops and the actuator holds its position. Port
• Provides hydraulic power to additional valves or hydraulic circuits. according to customer requirements. systems and external leakage. and long service life.
