Ultimate Guide to CETOP Valves: Boost Hydraulic Efficiency

In high-pressure machinery, one faulty part can stop an entire construction site or factory line. Engineers and maintenance teams know that finding the right replacement quickly matters a great deal. It saves time and money. This is why CETOP standardization stands out. KYDAC brings more than 24 years of experience as a hydraulic solutions provider. The company makes precise hydraulic control valves that follow these worldwide standards. Production lines up with global rules so customers get parts that work well and fit anywhere without issues.

Decoding the CETOP Standard: A Blueprint for Global Hydraulics

Standardization works like a common language for hydraulic systems. It lets parts from various makers connect without trouble.

The Core of Interchangeability: ISO 4401 Explained

CETOP comes from the European Fluid Power Committee. In daily hydraulic work, it points to a standard mounting pattern for valves.

• The Mounting Interface: The key part of the CETOP standard involves the connection between the valve and the manifold. ISO 4401 sets the rules here.
• Dimensional Consistency: A CETOP 3 valve keeps the same port positions and bolt layouts whether used in the United States or Italy. Technicians can swap it directly without changing pipes.
• Simplified Design: OEMs design manifolds and full systems knowing they can find valves from suppliers around the world.

Why Standardization is a Game-Changer for OEMs

Using standardized valve connections from KYDAC cuts down on assembly headaches and makes upkeep easier over the years.

• Reduced Inventory: Teams avoid stocking special valves for each machine. One standard series covers a large group of equipment.
• Lower Downtime: A failed valve gets replaced in minutes with a matching standard part. No need for custom work or extra adapters on site.
• Supply Chain Resilience: Companies switch suppliers more easily. They keep the same hydraulic circuits even when market conditions change.

KYDAC’s Precision-Engineered CETOP Solutions

KYDAC focuses on building valves that meet and often go beyond international specs. This approach delivers solid performance in real conditions.

4WE6 Series: The Versatile Standard for CETOP 3 (NG6)

The KYDAC 4WE6 series, including models like the 4WE6E61B/CG24N9Z5L Type Solenoid-operated Directional Valve, handles many medium-flow jobs that need compact and dependable control.

• High Performance: These valves manage pressures up to 35 MPa and flows around 80 L/min. They suit tough settings in construction machines and lifting gear where steady operation counts.
• Global Compatibility: The units match perfectly with similar parts from Rexroth, Vickers, and Yuken. This makes them a practical choice for replacement markets.
• Robust Materials: Options include high-strength cast iron for everyday cost savings and stainless steel for wet or chemical-heavy areas such as ports or processing plants.

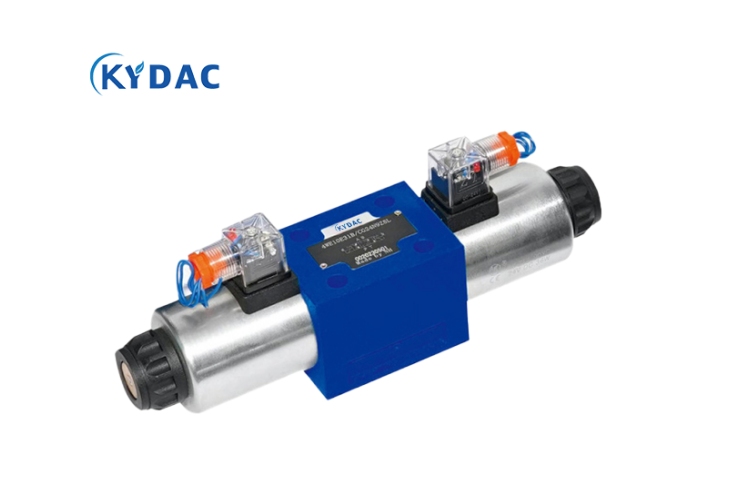

4WE10 Series: Commanding High Flows for CETOP 5 (NG10)

Larger systems call for more capacity. The 4WE10 series, with models such as the 4WE10E31B/CG24N9Z6L Type Solenoid-operated Directional Valve, delivers the flow needed for heavy equipment.

• Powerful Flow Output: Rated up to 120 L/min, these valves shorten cycle times on cylinders. Loaders and excavators move faster during busy shifts.
• Unwavering Stability: They hold up under steady 35 MPa pressure. Even with sudden loads from lifting or breaking work, the valves keep control.
• Electrical Flexibility: They work with voltages from DC 12V/24V to AC 110V/220V. Integration happens easily into different industrial or mobile setups.

Modular Stacking Valves: Customization Without Complexity

Standardization reaches further than single-directional valves. It includes stackable parts that make circuit building simpler.

• Z2S Series Check Valves: Modular hydraulic check valves like the Z2S10-20B hold loads on cylinders. They stop unwanted movement in cranes and forklifts during pauses.
• ZDB Series Relief Valves: The ZDB10VP series controls pressure in a tight stackable design. It protects the system from spikes without extra pipes outside.
• Z2FS Flow Control Valves: These restrictive check valves fine-tune actuator speeds. Smooth action follows in aerial platforms where careful positioning matters.

Bridging the Gap: Real-World Scenarios and Problem Solving

KYDAC CETOP valves prove their worth on job sites. Performance shows through daily efficiency and lasting wear.

Optimizing Construction and Earthmoving Equipment

Earthmoving work demands both strength and accuracy for combined movements.

• Excavator Work Device Control: Directional valves from KYDAC manage the boom, arm, and bucket together. Quick response times under 100ms help grading and leveling stay even and precise during long hours.
• Shock Resistance: Reinforced spools in the DCV and WE series take in heavy hydraulic jolts from digging. This protects the full system and reduces early wear.

Enhancing Productivity in Modern Agriculture

Farm machines face dust, vibration, and long days where breakdowns cost harvests.

• Tractor Rear Remotes: P80 and P120 monoblock and sectional valves act as the main control for big tractors. They run large plows and balers without lag.
• Environmental Resilience: Valves operate from -40℃ to 80℃. They start reliably on cold mornings and keep working through hot field days.

Driving Efficiency in Industrial Material Handling

Forklifts and port gear need steady control for safe loads.

• Mast Lifting and Tilting: SD and 4WE6 series direct the mast movements. Smooth valve shifts avoid sudden jerks that might tip cargo.
• Compact Footprint: Tight warehouse machines benefit from the small size of monoblock valves. The installation fits inside a limited chassis space.

Maintenance and System Longevity

Standard parts ease initial setup and change how machines get serviced over many years of use.

The Power of Direct Replacement

KYDAC standardized valves help companies improve upkeep and cut overall ownership costs.

• Plug-and-Play Maintenance: WE6 and WE10 valves follow ISO 4401 exactly. A mechanic swaps them with basic tools and no extra training.
• Longer Service Life: Advanced processes use equipment from Germany and Japan. Strict testing confirms each valve meets durability expectations in the field.
• Global Support: Exports reach over 50 countries. Customers find reliable hydraulic parts no matter where the equipment operates.

Conclusion

Ready to improve machine reliability and straighten out your supply needs? KYDAC supports new designs for construction gear or cost-effective replacements for existing fleets. Look through the full line of CETOP valves and custom hydraulic options. Contact the engineering team today for advice or a quote matched to your job.

FAQ

Q: What is the main difference between CETOP and ISO 4401?

A: CETOP names the group and common sizes like CETOP 3. ISO 4401 gives the exact international measurements for mounting and port positions on the manifold.

Q: Can I mix different brands of CETOP valves in a single manifold stack?

A: Yes. Standardization allows a KYDAC CETOP valve to stack with others as long as they follow the same ISO 4401 size.

Q: How does valve standardization affect hydraulic system design costs?

A: It brings costs down by using common manifolds and shortening the time spent on custom port layouts.

Q: Why is sealing integrity more critical in modular “stackable” valves?

A: Layers press together to hold high pressure. Small flaws cause leaks. KYDAC machines surfaces precisely and uses quality seals to maintain tightness up to 350 bar.
