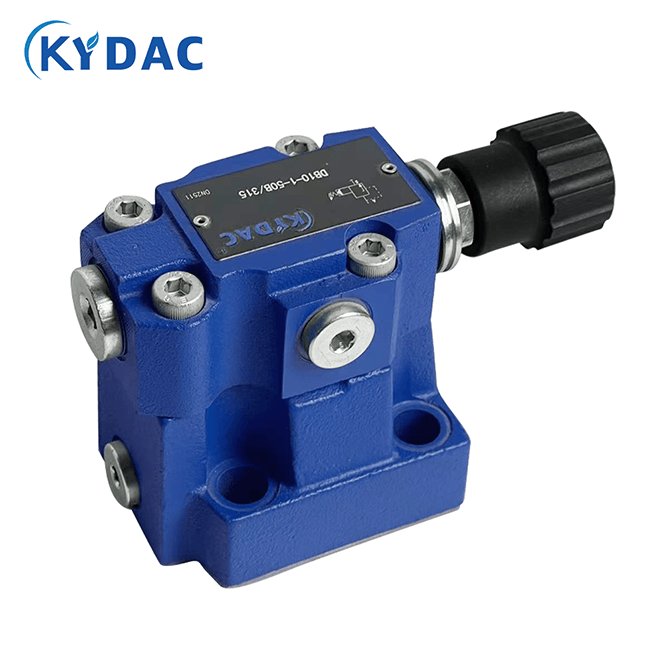

Name: Pilot Relief Valve / Solenoid Pilot Relief Valve
Model No.: DB20-1-50B/315
Fit: Construction,LINDE Tractor, Crane, Forklift
Origin:China
Replace: YUKEN; REXROTH; VICKERS
Manufacturer: KYDAC
Material: Stainless Steel / Cast Iron
The DB20-1-50B/315 Type Pilot Relief Valve / Solenoid Pilot Relief Valve is a high-performance hydraulic pressure control valve designed for limiting system pressure and protecting hydraulic components from overload. The valve adopts a pilot-operated structure, providing stable pressure regulation, low noise operation, and reliable performance under high-pressure working conditions. It is widely used in industrial hydraulic systems, hydraulic power units, construction machinery, and mobile hydraulic equipment.
| Specification | 10 | 20 | 30 |
| Max working pressure(Mpa) | 35 | ||
| Max. flow(L/min) | 250 | 500 | 650 |
| Pressure adjustment(Mpa) | 5 / 10 / 20 / 31.5 / 35 | ||
| Design number | 50 | ||

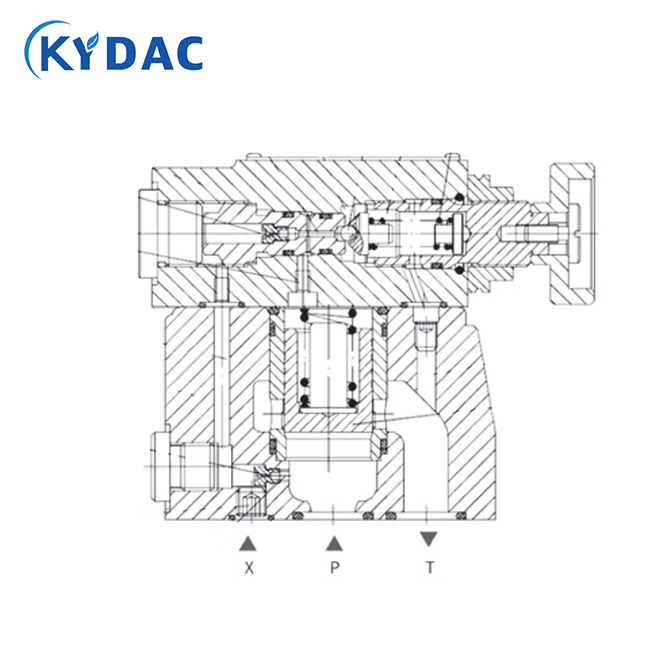

The DB20 pilot-operated relief valve consists of a main valve and a pilot control valve. Hydraulic pressure acts on the main spool and pilot stage simultaneously. When system pressure exceeds the preset value, the pilot valve opens and releases pressure from the control chamber, causing the main valve to open and redirect excess oil to the tank. This limits system pressure and protects hydraulic components from overload.
For the solenoid-operated version (DBW type), the integrated solenoid directional valve allows remote unloading and electrical control of system pressure.
