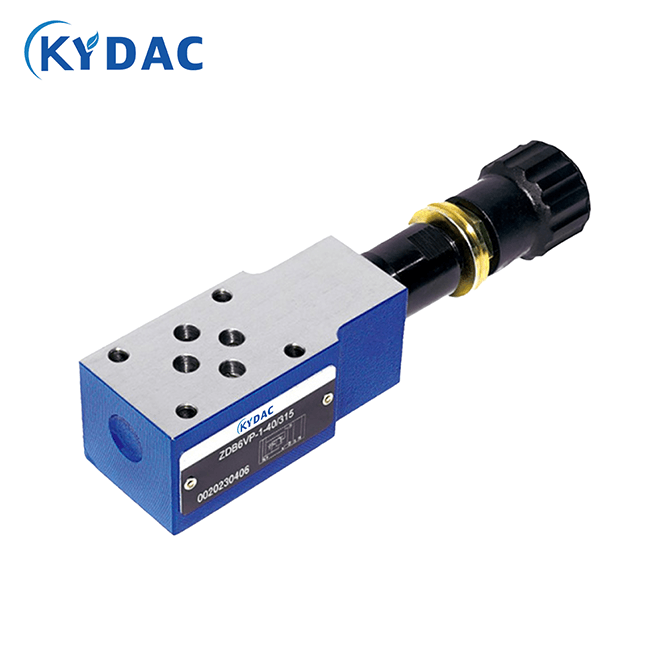

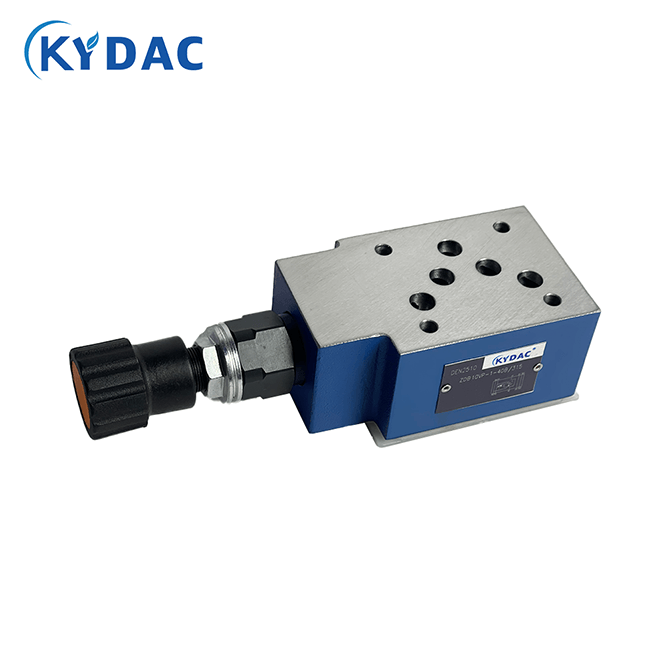

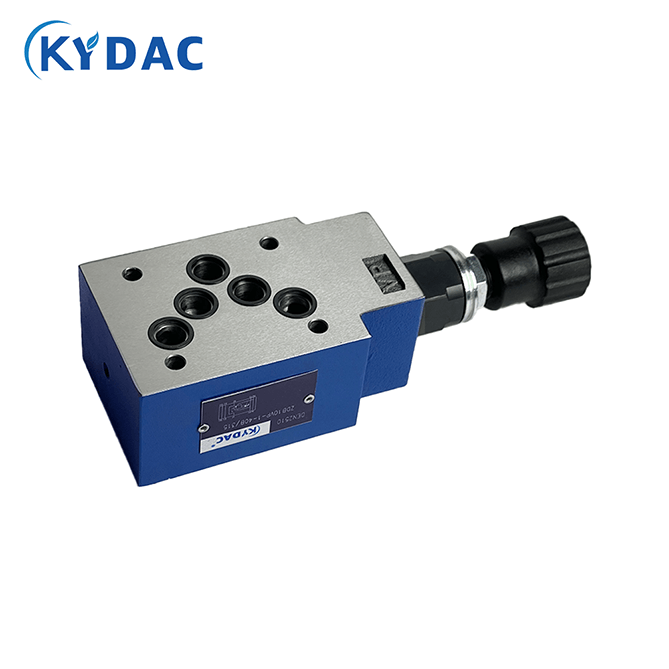

Name: Modular Relief Valve
Model No.: ZDB10VP-1-40B/315
Fit: Construction,LINDE Tractor, Crane, Forklift
Origin: China
Replace: YUKEN; REXROTH; VICKERS
Manufacturer: KYDAC
Material: Stainless Steel / Cast Iron
The ZDB10VP-1-40B/315 Type Modular Relief Valve is a high-performance hydraulic pressure control valve designed to limit system pressure and protect hydraulic components from overload. Featuring a modular sandwich plate structure, the valve can be directly mounted between directional valves and subplates, providing compact installation, flexible hydraulic circuit design, and reliable pressure control. It is widely used in industrial hydraulic systems, hydraulic power units, machine tools, construction machinery, and automation equipment.
| Specification | 10 |
| Max working pressure(Mpa) | 31.5 |
| Max. flow(L/min) | 100 |
| Pressure adjustment(Mpa) | 5 / 10 / 20 / 31.5 |
| Design number | 40 |
The ZDB10VP modular relief valve controls hydraulic system pressure through a spring-loaded direct operated relief mechanism. When hydraulic pressure exceeds the preset value, the valve spool opens and allows excess hydraulic oil to flow back to the tank, thereby limiting system pressure and protecting pumps, cylinders, motors, and pipelines from overload.
The sandwich plate structure allows direct integration into hydraulic manifold systems without additional piping, reducing installation space and simplifying hydraulic circuit design.
