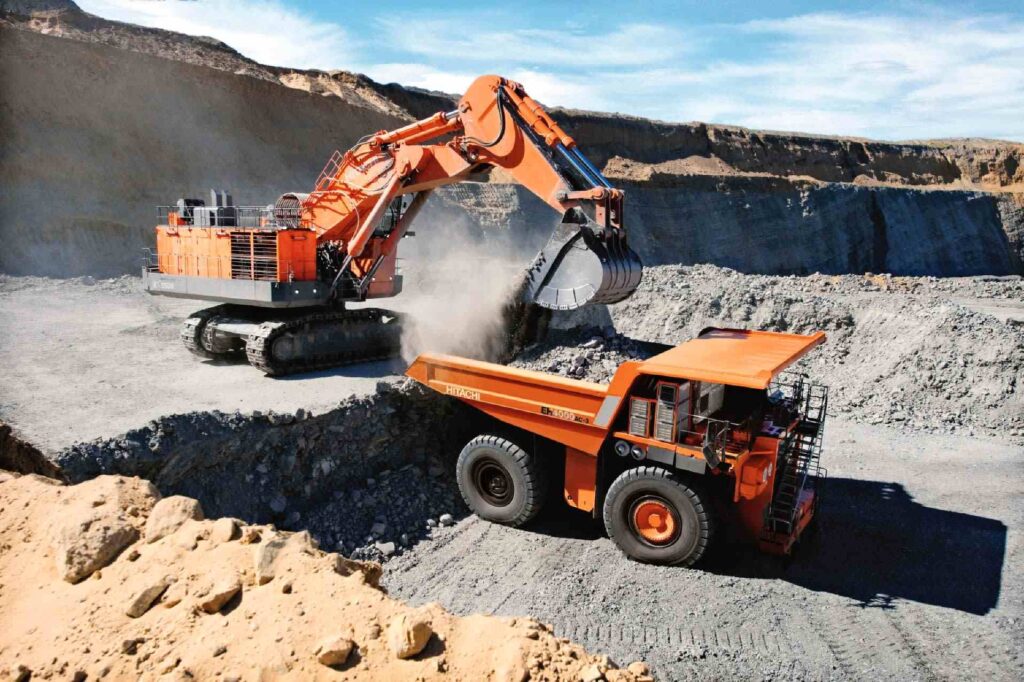

Hydraulic Valves for Construction and Engineering Machinery

Modern construction machinery functions under highly stressful operational environments that require system stability, high power density, and accurate fluid control. Hydraulic valves for construction machinery should therefore operate reliably in highly stressful conditions involving high pressures, vibrations, and multiple actuators.

• Continuous operation under extreme high-pressure environments reaching up to 350 bar.
• Complex multi-actuator coordination, causing pressure drops or speed interference during combined movements.
• Severe mechanical shock and vibration leading to internal seal wear and fluid leakage.
• Restricted installation envelopes in compact mobile equipment chassis requiring highly integrated valve manifolds.

To meet these demanding engineering requirements, selecting the right construction machinery hydraulic valve architecture is essential. As a specialized fluid-control component manufacturer, KYDAC designs and manufactures industrial-grade valves for excavators, loaders, cranes, agricultural machinery, and other heavy equipment applications.

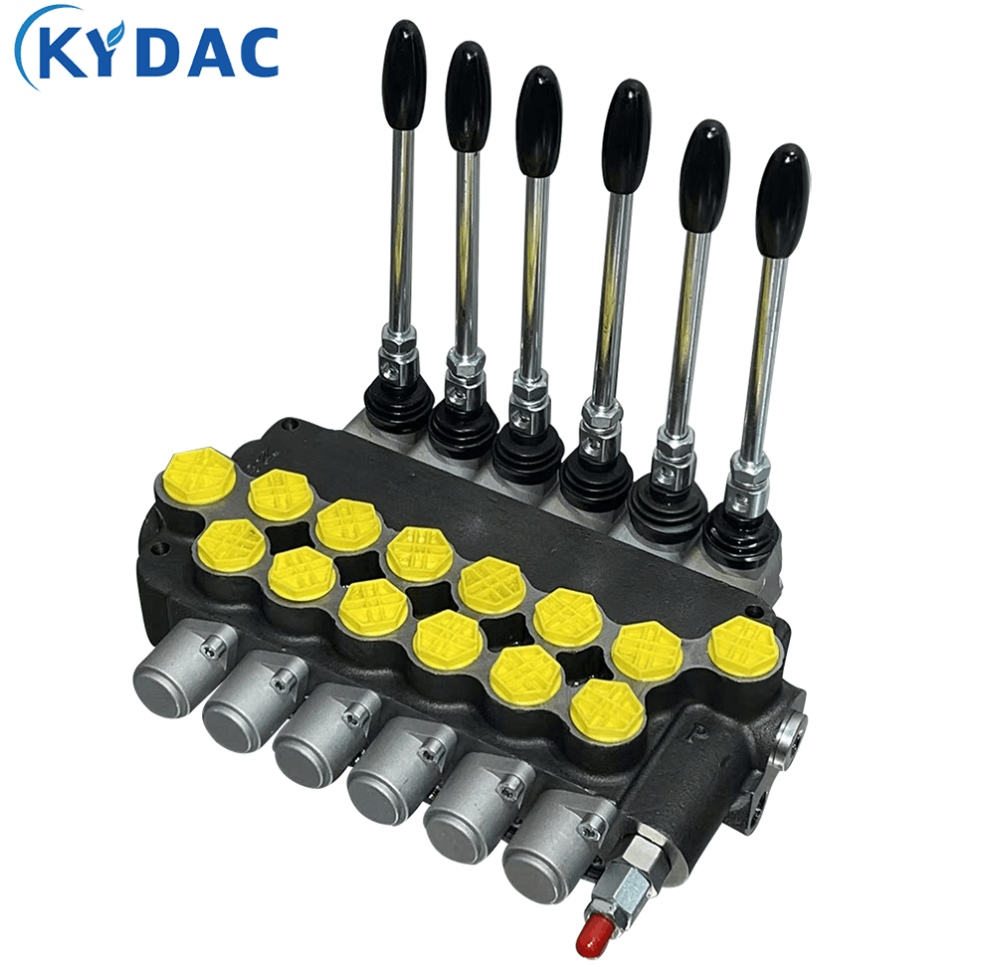

Essential Technical Criteria for Hydraulic Valve Selection

Engineers look at pressure limits, flow requirements, actuator roles, and circuit layout when selecting a construction equipment hydraulic valve. Checking these details helps achieve steady performance and keeps components working longer in tough conditions on site.

Mastering Hydraulic Valve Sizing and Flow Rate Selection

Correct hydraulic valve sizing and hydraulic valve flow rate selection prevent fluid from overheating. They also reduce pressure loss and improve actuator performance.

• Flow Rate Matching: Correct hydraulic valve flow rate selection keeps fluid velocity in a safe range. This lowers the risk of heat buildup and cavitation.
• Port Pressure Drop: Accurate hydraulic valve sizing cuts internal resistance. More power reaches digging, lifting, steering, and attachment work.
• Thermal Stability: Less friction inside the valve helps oil maintain steady viscosity even with big temperature swings.

Optimizing Hydraulic Valve Spool Configuration for Multi-Actuator Control

The hydraulic valve spool configuration governs motion response, neutral flow paths, load holding, and operator control.

• Spool Center Functions: Custom hydraulic valve spool configuration options, including open, closed, and tandem center designs, can be matched to fixed- or variable-displacement pump systems.
• Fine Metering Control: Precision-machined metering notches on each hydraulic directional control valve spool support smoother acceleration and deceleration.
• Port Protection: Integrated secondary relief valves help protect individual actuator ports against sudden external shock loads.

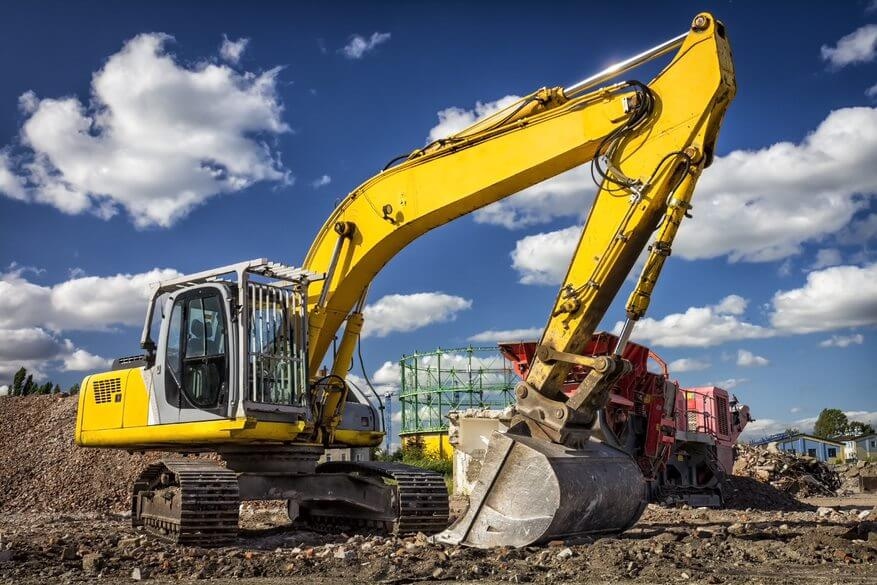

High-Performance Hydraulic Valve Architectures for Heavy Machinery

Mobile equipment relies on specialized hydraulic valves for construction machinery designed to withstand pressure spikes, dynamic vibration, and simultaneous multi-axis movement.

Heavy-Duty Performance with Monoblock Hydraulic Valves

A monoblock hydraulic valve puts several control spools into one strong cast body. This design gives a compact fit along with solid strength under load.

• Reduced Inter-Section Leakage Risk: A monoblock hydraulic valve removes extra joints between sections. That cuts down on leaks when the chassis twists or shakes during work.
• Model Spotlight – KYDAC DCV40 Series: It works at pressures up to 350 bar and handles 40 L/min flow. The DCV40 uses HT300 cast iron and can have 1 to 8 work sections.
• Practical Application: It works well as a wheel loader hydraulic valve. It manages lift-arm raise and bucket tilt in tight engine spaces.
• Model Spotlight – KYDAC P80 Series: This model gives 80 L/min flow at 250 bar. It handles several circuits on utility loaders and farm machines.

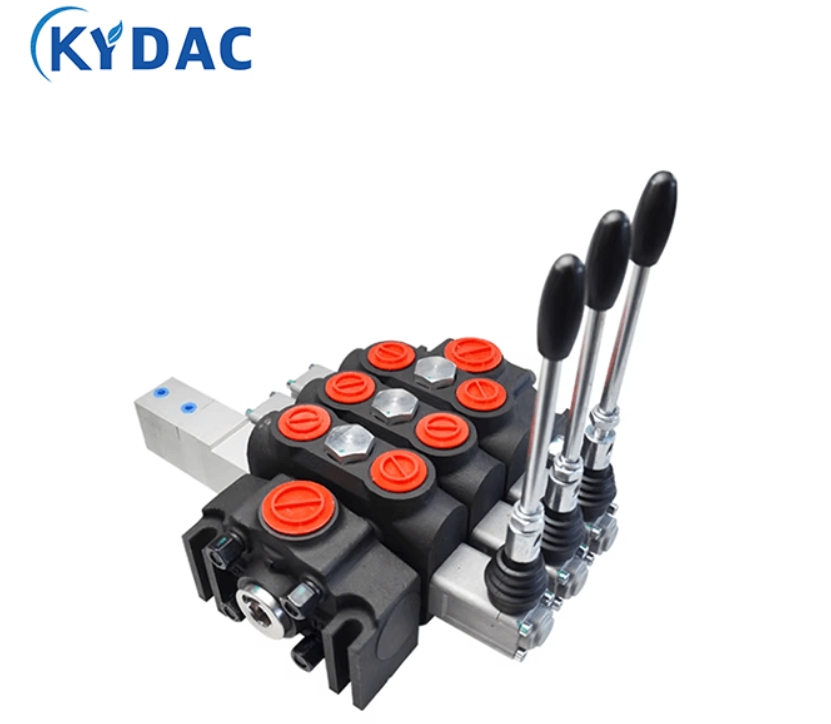

Versatile System Integration with Sectional Hydraulic Valves

A sectional hydraulic valve offers scalable modularity for machines requiring multiple customized hydraulic functions.

• Custom Circuit Expansion: A sectional hydraulic valve allows individual work sections to be configured with auxiliary valves, pilot controls, or stroke limiters.
• Model Spotlight – KYDAC DCV60 Series: Configured as a versatile construction machinery multi-way valve, the DCV60 supports multiple work functions for construction and mobile equipment.
• Practical Application: It can function as a hydraulic valve for excavator attachment control, managing boom, arm, bucket, and auxiliary circuits in a coordinated valve stack.
• Field Maintenance Efficiency: Individual sections can be inspected or replaced without removing the entire assembly, helping reduce service downtime.

Automated Control with Fast-Response Solenoid Valves

Electrically controlled hydraulic directional control valve systems enable integration with electronic controllers, remote operation, and automated machine functions.

• Rapid Actuation: Solenoid-controlled switching supports fast response for precision positioning and auxiliary movement.
• Model Spotlight – KYDAC 4WE6H61B Solenoid Valve: Operates up to 31.5 MPa and supports DC 24V or AC 220V coil options for compact electro-hydraulic installations.
• Practical Application: This hydraulic directional control valve can support remote switching requirements in mobile crane outriggers, waste compactors, and other engineering equipment.

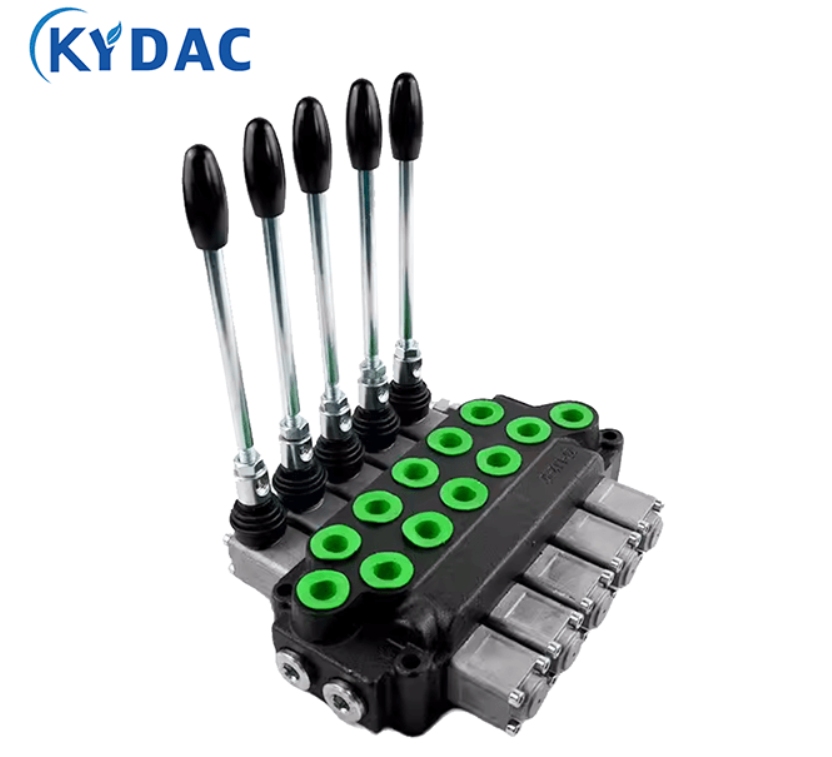

Partnering with an Experienced OEM Hydraulic Valve Manufacturer

Long-term equipment reliability requires support from an experienced OEM hydraulic valve manufacturer with suitable machining, testing, customization, and production capabilities.

Precision Manufacturing Excellence and Quality Assurance

KYDAC maintains quality oversight from raw material selection through finished component assembly.

• Advanced Production Lines: As a construction machinery hydraulic valve manufacturer China, KYDAC uses CNC machining equipment and dedicated hydraulic testing systems.
• Hydraulic Valve Quality Control: Each construction machinery hydraulic valve is inspected according to defined dimensional, pressure, flow, and functional requirements before shipment.
• OEM Manufacturing Capability: As an experienced OEM hydraulic valve manufacturer, KYDAC supports standard and customized valve programs for international machinery customers.

Customized Fluid Power Solutions for Global Equipment

Engineered valve manifolds and customized control components help ensure compatibility with different machinery platforms.

• Tailored Manifold Design: Custom port threads, mounting patterns, spool functions, and integrated valve cavities can be developed for OEM production.
• Full Application Support: Engineering teams assist with construction equipment hydraulic valve selection, hydraulic valve sizing, circuit matching, and spool-function evaluation.
• Versatile Product Range: KYDAC supplies multi-way directional control valve assemblies, monoblock valves, sectional valves, solenoid valves, check valves, and other hydraulic valves for construction machinery applications.

Elevate Your Machine Performance with KYDAC Fluid Power

Upgrade your construction equipment with precision-engineered hydraulic control components designed for demanding operating environments.

Request a Custom Technical Proposal and Quotation

Our engineering team can support hydraulic circuit optimization and tailored valve selection.

• Receive technical specifications and application support for standard or customized valve configurations.
• Access factory-direct quotations for multi-way directional control valves, monoblock hydraulic valves, and sectional hydraulic valve assemblies.
• Contact KYDAC to discuss your project requirements and evaluate samples for field testing.

FAQ

Q: What is the main structural difference between a monoblock hydraulic valve and a sectional hydraulic valve?

A: A monoblock hydraulic valve puts multiple spools inside one cast body. This keeps the unit compact and cuts the number of external joints. A sectional hydraulic valve takes separate sections and stacks them together. The stacked design offers more room to adjust the circuit for different machine needs.

Q: How do I choose the correct flow rating for a construction machinery multi-way valve?

A: Start with the pump’s highest output when setting the flow rating for a construction machinery multi-way valve. Check the working pressure next. Then review the allowed pressure drop, port size, and how many actuators may run at once. The construction machinery multi-way valve must handle peak loads on site without dropping below required performance.

Q: Why is hydraulic valve spool configuration important for heavy machinery?

A: Hydraulic valve spool configuration sets the neutral flow paths. It also shapes actuator response and flow metering. Load holding improves when the spool matches the job. Good spool choice helps steady control on excavators, loaders, cranes, and similar machines during daily work.

Q: Can KYDAC customize hydraulic control valves for OEM construction machinery applications?

A: Yes. As an OEM hydraulic valve manufacturer and construction machinery hydraulic valve manufacturer China, KYDAC handles custom spool functions. Relief settings can be adjusted as needed. Port threads and mounting interfaces match the machine. Electro-hydraulic controls are also available for OEM machinery.
