Top 12V DC Solenoid Valves: Boost Battery System Efficiency

The move to electric power in heavy equipment and factory settings has drawn attention to parts that control fluid flow. In movable setups and far-off storage setups, the hydraulic setup usually runs on a 12V battery. Here, the solenoid valve goes beyond a simple on-off device. It acts as a key controller for power use and steady work time. Picking the correct 12V DC solenoid valve means matching electric limits with hydraulic needs. This guide looks at ways to improve your battery-driven systems. We use carefully built parts from KYDAC.

Key Technical Factors in 12V DC Solenoid Valve Selection

In battery setups, the main issue is the tight power supply. Fixed factory systems have endless AC power, but a 12V DC setup needs to save every bit of current.

Understanding Power Consumption and Heat Management

For a 12V DC solenoid valve, the coil’s power level in watts matters most. A high level gives solid magnetic pull for quick shifts, yet it drains the battery faster and builds more heat.

• Holding Current: Look for valves that feature low holding currents. Once the valve is actuated, the energy required to keep it open should be minimal.
• Heat Dissipation: In battery systems, excess heat can damage nearby sensitive electronics or degrade the battery’s lifespan. KYDAC’s solenoid valvesare designed with optimized coil windings that maintain a low temperature rise even during prolonged duty cycles.

Response Time and Precision in Flow Control

Demanding jobs, such as steering autonomous farm equipment or steadying scissor lifts, call for quick response times.

• Armature Movement: The inner armature needs to shift easily with little friction, which keeps timing steady.
• Flow Capacity: The valve should manage the needed liters per minute (LPM) without big pressure losses. Otherwise, the hydraulic pump labors more and pulls extra power from the battery.

Environmental Resilience: IP Ratings and Vibration Resistance

Mobile battery systems often deal with dust, water, or heavy jolts.

• Ingress Protection: Pick a valve with a solid IP rating, like IP65 or IP67, to block water and dust from damaging the 12V coil.
• Mechanical Integrity: Batteries add weight, creating specific vibration patterns. A sturdy valve housing, such as the cast iron or treated steel in KYDAC items, avoids wear from shaking.

KYDAC Solutions: Bridging High Performance and Energy Efficiency

At KYDAC, we focus on strong hydraulic builds and current electric needs. Our parts address the exact problems faced by makers and buyers worldwide.

Advanced Coil Technology: Reducing Battery Drain

Our build group has worked on boosting the pull-to-power balance in our 12V DC coils. With pure copper and special covers, KYDAC solenoid valves shift well at lower volts. This proves key as a battery’s power drops near the end of a workday.

Versatile Series: Exploring the SD and SVV06 Directional Valves

We supply a full line of hydraulic valves made for various setup types:

• SD Series Electromagnetic Controlled Valves: Ideal for directional control in compact machinery. These valves feature a modular design that allows for easy integration into existing manifolds.

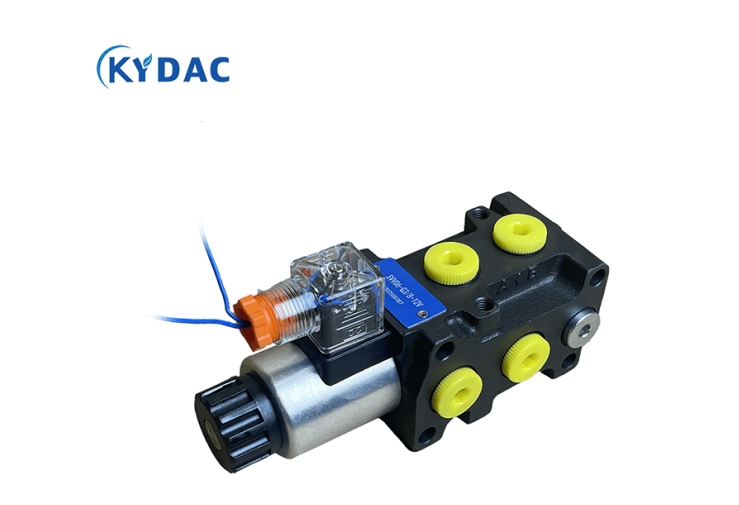

• SVV06 Multi-Way Directional Valves: Perfect for systems requiring multiple actuators to be controlled from a single 12V power source. Their high-pressure capability ensures that efficiency is maintained even under heavy loads.
• Monoblock and Sectional Valves: For more complex hydraulic circuits, our P Series and ZDL Series can be equipped with 12V DC solenoid actuators, providing a centralized control solution for construction and material handling equipment.

Customization (OEM/ODM): Tailoring Solenoid Valves to Your System

Each battery setup holds its own limits. KYDAC offers broad OEM/ODM help. If you want a certain plug type like Deutsch or DIN, a set flow amount, or a special block shape, our build team joins you to make the part fit your setup just right.

Field Performance: Optimizing Critical Workflows with KYDAC Technology

To better understand how theoretical specifications translate into operational success, let’s examine how these technical advantages address specific challenges in the field.

Case Study: Mobile Agricultural Equipment

A manufacturer of automated harvesters faced frequent battery failures because their previous solenoid valves were drawing too much current during peak operations. By switching to KYDAC’s energy-efficient 12V solenoid series, they reduced the total system current draw by 15%. This allowed for an additional hour of field operation per charge without compromising the speed of the hydraulic headers.

Solving the Overheating Issue in Continuous Duty Cycles

In many industrial battery systems, valves are required to stay “ON” for long periods. Standard coils often overheat, leading to coil burnout. KYDAC solved this by implementing high-grade thermal insulation and enhanced surface area on the valve body for natural convection. This technological refinement ensures that our valves operate reliably in ambient temperatures exceeding 40°C.

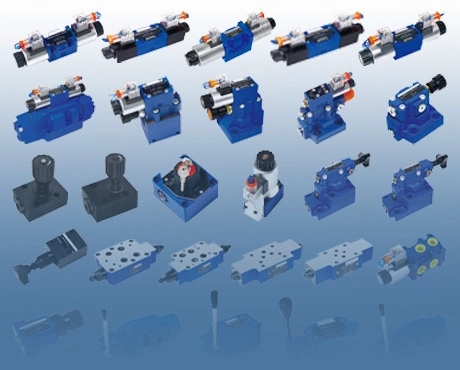

Technical Service and Quality Assurance by KYDAC

Selecting a component marks only the start. Delivering it to your assembly line right on time, and watching it function just as expected, matters every bit as much.

• Global Supply Chain: Located in China’s key manufacturing area, KYDAC runs an efficient supply network that speeds up shipments to markets around the world. We know a delayed production run can rack up serious expenses.
• Rigorous Testing: Each 12V DC solenoid valve faces pressure checks, leak inspections, and electrical safety tests. We follow tough ISO guidelines, so the “KYDAC” label stands for solid dependability.
• Design to Delivery: We handle everything from the first CAD sketch to the packed shipping container, with full openness along the way. Plus, our support staff stands ready to help with setup questions or fixing system issues, which makes switching to our valves straightforward.

Conclusion

Picking a 12V DC solenoid valve for battery-operated equipment demands careful thought. A bad choice leads to power loss, quicker battery drain, and even failures. Focus on low power draw, good resistance to harsh weather, and precise construction to boost your equipment’s overall performance a lot.

Ready to improve your battery-powered hydraulic setup?

KYDAC works hard to supply the worldwide market with durable, effective hydraulic products. Our know-how in hydraulic control valves and solenoid tech positions us as the right choice for your upcoming battery project.

Contact KYDAC today for a technical consultation and OEM quote!

FAQ

Q: Can a 12V DC solenoid valve handle the voltage fluctuations common in battery systems?

A: Top-notch valves usually include a tolerance band of about plus or minus 10%. Kydac valves get built to work steadily from 10.8V up, so they perform well as batteries drain down.

Q: What is the benefit of a “wet-pin” solenoid design in hydraulic valves?

A: In wet-pin solenoids, the armature travels through the hydraulic fluid. This setup offers natural lubrication and smooth damping. As a result, these valves last longer and run more quietly than dry types.

Q: Are 12V DC solenoid valves interchangeable with 24V versions?

A: Not at all. The coil needs to fit the system’s voltage exactly. That said, many valve bodies stay the same, so you can often replace just the coil if voltage shifts, as long as the design allows it.

Q: How do I prevent “sticking” in solenoid valves used in outdoor battery systems?

A: Sticking often comes from dirty fluid or a worn coil. Kydac’s strong 12V coils help a lot, and good filters in the hydraulic setup cut down the chance of problems.
