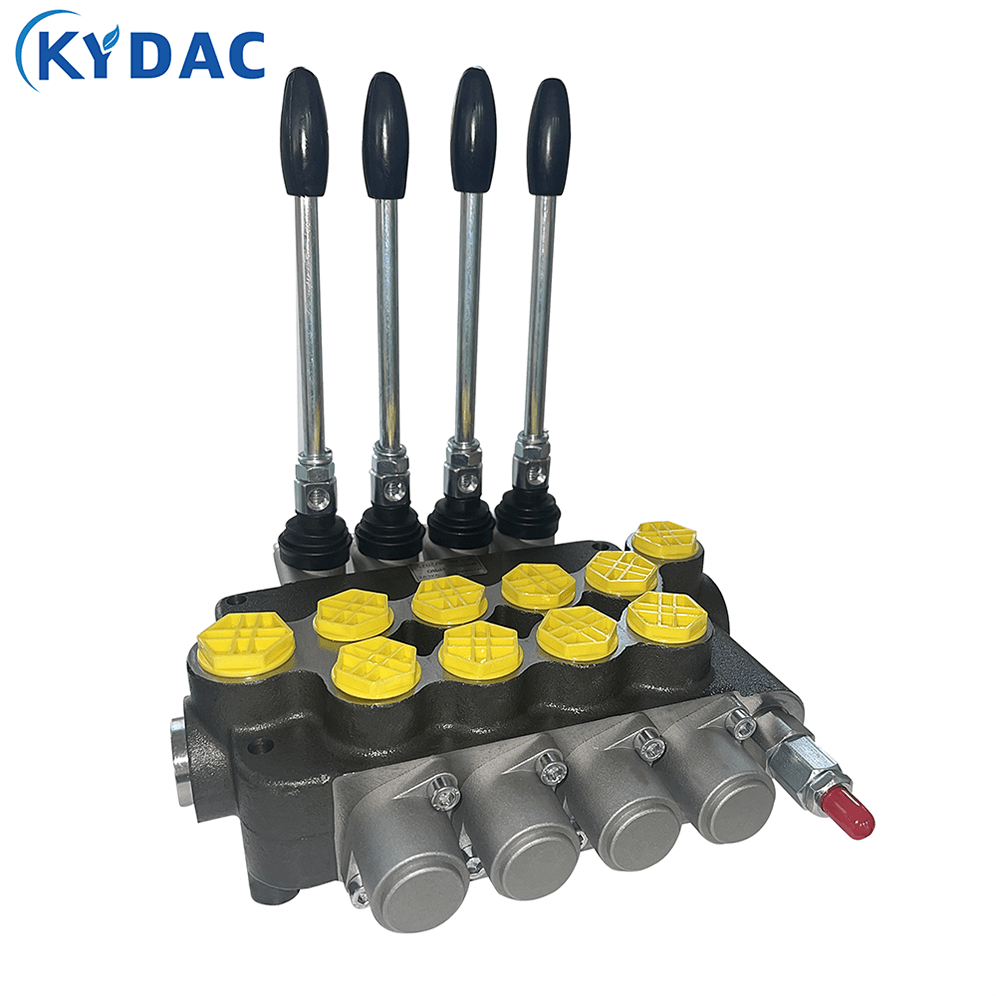

P80 multi way directional valve

The KYDAC P80 Series Multi-Way Directional Valve is a high-flow, industrial-grade hydraulic control manifold designed for demanding mobile and agricultural applications. Engineered as a robust, monoblock unit, it features a high-strength cast iron body and delivers a nominal flow of 80 L/min at a maximum system pressure of 250 bar. As a versatile and powerful control center, it is ideally suited for operating multiple double-acting or single-acting hydraulic cylinders and serves as an excellent solution for adding rear remote hydraulic functions to tractors and other high-power machinery.

Its integrated design consolidates control functions into a single, compact, and leak-resistant package, dramatically simplifying system plumbing, enhancing reliability, and providing precise, centralized command over complex hydraulic work circuits.

Core Advantages & Features

1. High-Flow Power & Monoblock Reliability: Combines significant hydraulic power (80 L/min) with the inherent robustness of a one-piece cast iron construction. The monoblock design eliminates inter-valve piping, reducing potential leak points, minimizing pressure drops, and providing superior structural integrity under high-pressure, high-vibration conditions typical in agricultural and construction use.

2. Exceptional Performance for Demanding Tasks:

   • High-Pressure Capability: A maximum working pressure of 250 bar ensures powerful and reliable actuation of cylinders, even under heavy loads or when using breakaway couplers.

   • High Flow Capacity: The 80 L/min flow rating enables rapid cylinder extension and retraction, significantly improving cycle times and productivity for tasks like lifting, tilting, or operating large implements.

   • Superior Environmental Tolerance: Designed to operate flawlessly across an extreme ambient temperature range (-40°C to 80°C) and a wide fluid viscosity range (12 to 400 cSt), guaranteeing consistent performance from cold starts in winter to peak operation in summer heat, anywhere in the world.

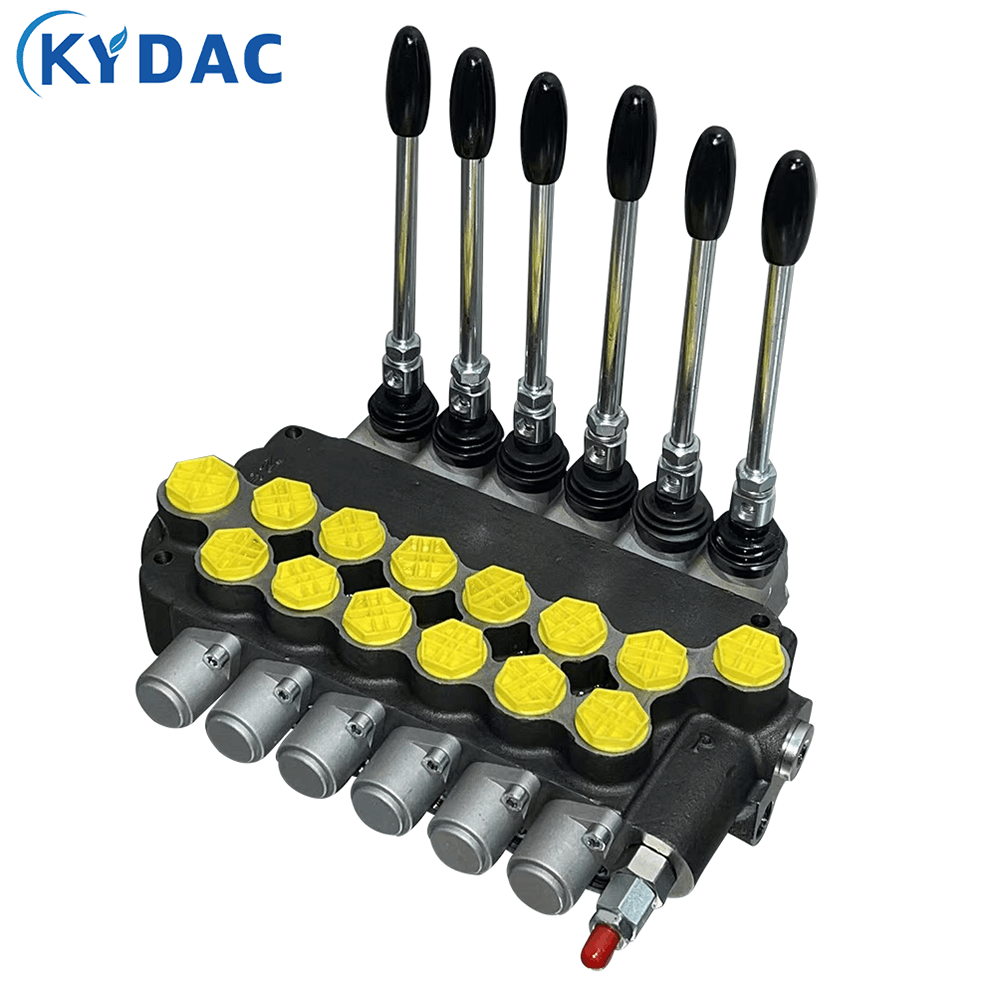

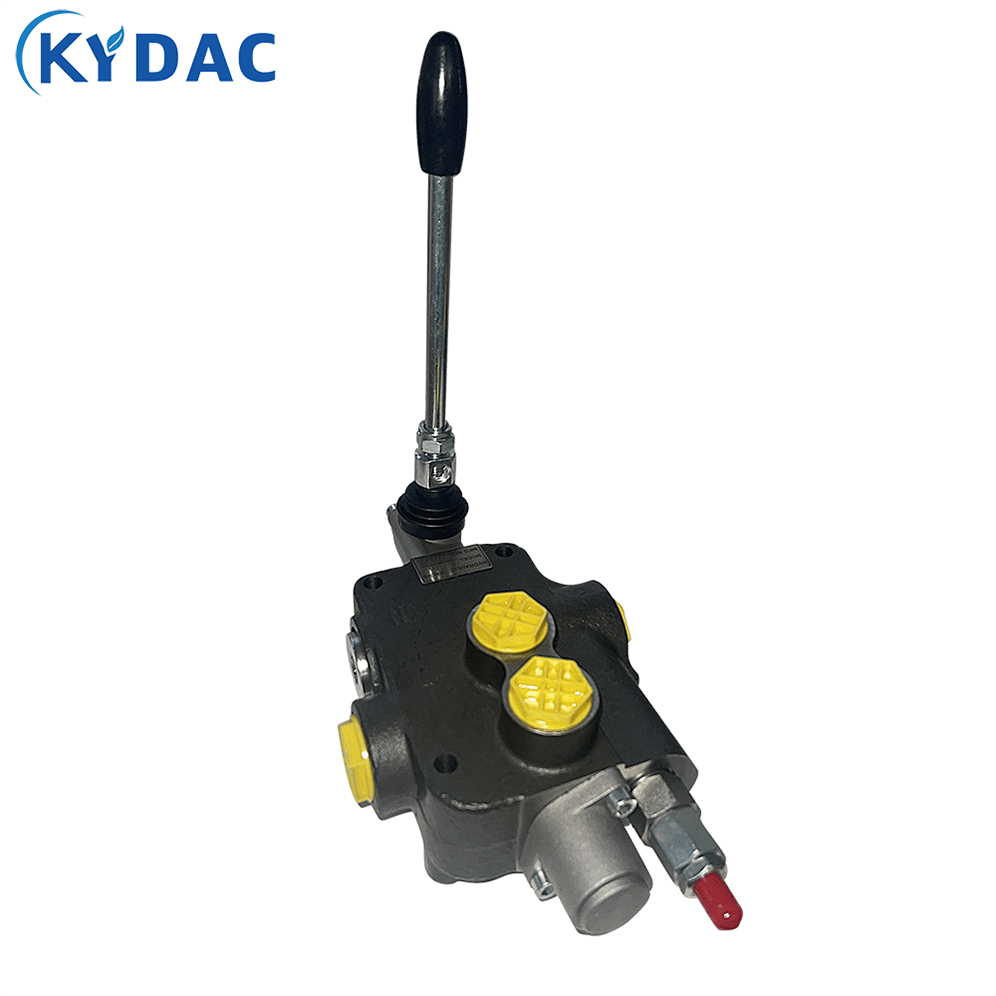

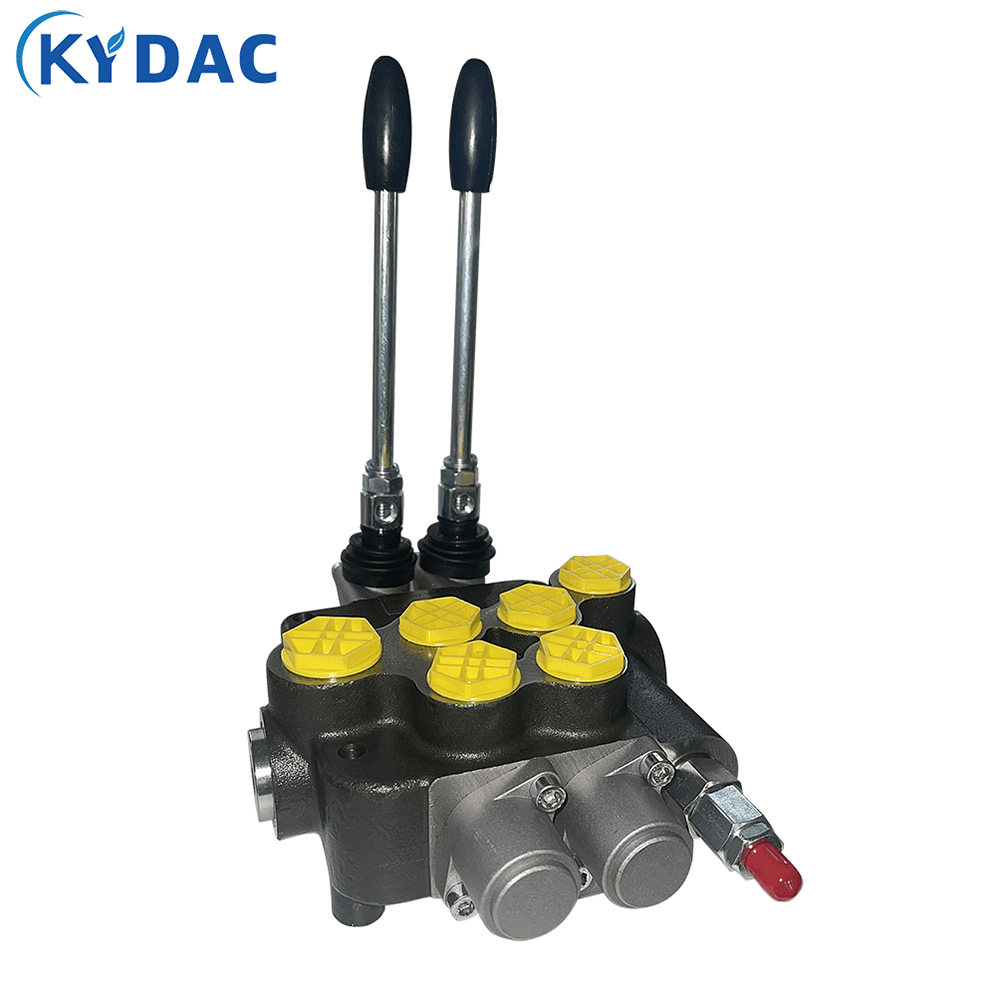

3. Modular & Flexible Configuration: Available in configurations from 1 to 7 sections, allowing for customized hydraulic circuit design. This modularity lets equipment manufacturers or system integrators tailor the valve stack precisely to the number of required hydraulic functions, optimizing both cost and machine capability.

4. Purpose-Built for Agricultural & Mobile Applications: Specifically designed to meet the rigorous demands of tractor hydraulics and similar mobile equipment. It provides the necessary flow and pressure to efficiently control rear remotes, front-end loaders, grapples, top-and-tilt kits, and other hydraulic attachments, transforming machine versatility.

Detailed Technical Specifications

Primary Application Fields

This valve is the core control component for high-flow hydraulic systems in:

• Agricultural Machinery: As a rear remote valve bank for tractors to control implements like plows, seeders, mowers, and balers.

• Hydraulic Attachment Control: Operating front-end loaders, log grapples, pallet forks, snow blowers, and other high-flow attachments.

• Mobile Equipment: Suitable for certain construction machinery, material handlers, and industrial vehicles requiring compact, multi-circuit, high-flow directional control.

Conclusion

The KYDAC P80 Series Multi-Way Directional Valve delivers a powerful combination of high flow, high pressure, and rugged monoblock construction. It is engineered to be the reliable, high-performance heart of hydraulic systems for modern tractors and demanding mobile equipment, enabling greater productivity and implement versatility. By choosing the P80, you select a durable and efficient solution designed to withstand challenging environments and provide precise control for your most critical hydraulic functions.

For detailed configuration options, porting specifications, or technical support, please contact KYDAC or your authorized distributor.
